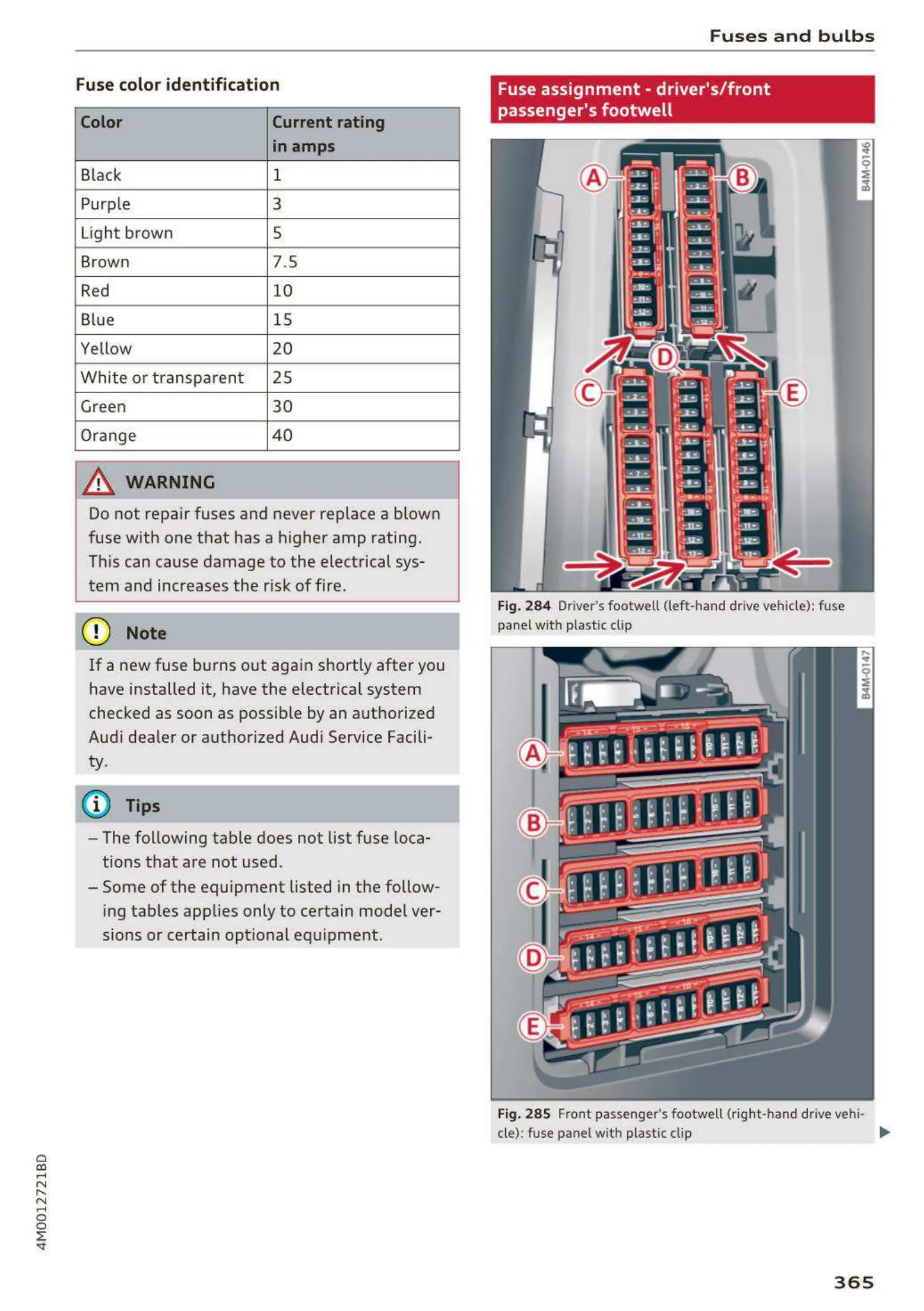

Fuse color identification
Color Current rating
in amps
Black 1
Purple 3
Light brown
5
Brown 7.5
Red
10
Blue 15
Yellow 20
White or transparent 25
Green
30
Orange 40
A WARNING
Do not repair fuses and never replace a blown
fuse with one that has a higher amp rating.
This can cause damage to the electrical sys-
tem and increases the risk of fire.
(D Note
If a new fuse burns out again shortly after you
have installed it, have the electrical system
checked as soon as possible by an authorized
Audi dealer or authorized Audi Service Facili-
ty.
(D Tips
- The following table does not list fuse loca-
tions that are not used.
- Some of the equipment listed in the follow-
ing tables applies only to certain model ver-
sions or certain optional equipment.
Fuses and bulbs
Fuse assignment - driver's/front
passenger's footwell
Fig. 284 Driver's footwell (left -hand drive vehicle): fuse
panel with plastic clip
Fig. 285 Front passenger's footwell (right -hand drive vehi-
cle): fuse panel with plastic clip
II>-
365
