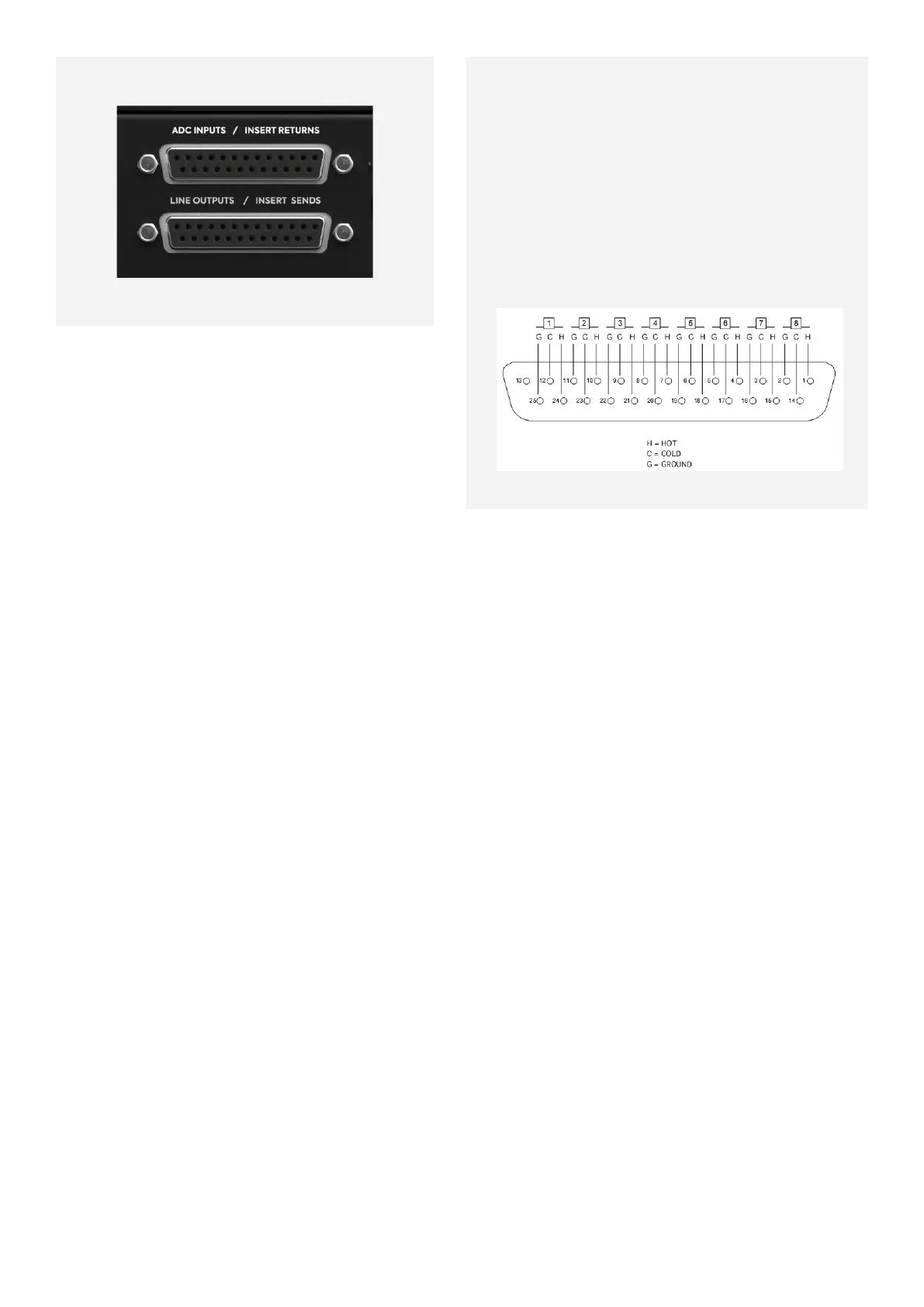

ADC Inputs/Insert Returns
This DB25 connector provides 8 balanced
inputs in Tascam Format. These directly feed
iD48’s Analog to Digital Converters (ADCs)
and can either be used as direct inputs to the
ADCs or as insert returns depending on the
ADC path settings selected for a particular
channel. More information about the ADC
Path Settings can be found on page 15.
Line Outputs/Insert Sends
This DB25 Connector provides 8 balanced
outputs in Tascam Format. These are either
fed from the Outputs of iD48’s built in Audient
Console Mic Preamps in order to be used as
Insert Sends, or they can be used to send 8
line-level outputs. This is set by adjusting the
ADC path setting for a particular channel.
Both the ADC Inputs/Insert Returns and
Line Outputs/Insert Sends connections
use a Tascam Format Pin Out. To ensure
you use the correct looms for your iD48,
please see the Tascam Format pinout
diagram below.
