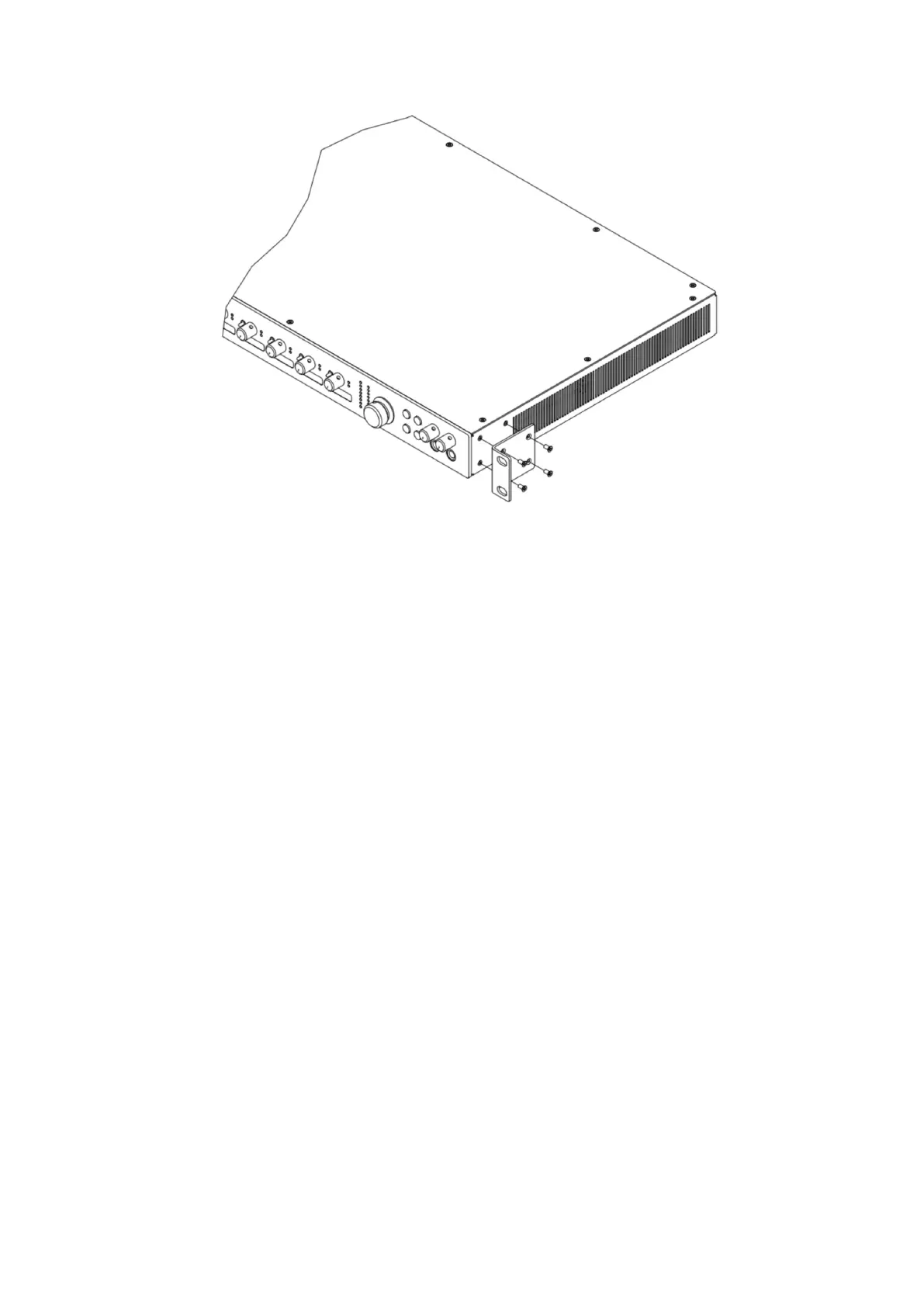

Repeat this process for the other Rack Ear. With the Rack Ears fitted, the iD48 can now be
added to your Rack.
Rack Safety Instructions
iD48 requires 1U of vertical rack space and a minimum of 400mm rack depth, allowing
for cables. It weighs 3.9kg and for fixed installations - such as a studio - the four front
panel mounting screws will provide adequate support. The front panel depth is 3mm
at the mounting positions.
iD48 does not generate significant heat and is cooled by natural convection. We
recommend that the unit should not be used in locations where the ambient temperature
is greater than 35°C. Ventilation is via slots on either side of the enclosure, and these
must be clear of obstruction.
Do not mount iD48 immediately above or below any other equipment which generates
significant heat, for example, a power amplifier.
