iD48 Rack Ear Fitting Instructions
27
If you wish to add iD48 to a Rack, then this can be achieved by fitting the Rack Ears included
in the box. With the Rack Ears fitted, the iD48 is a standard 1RU unit.

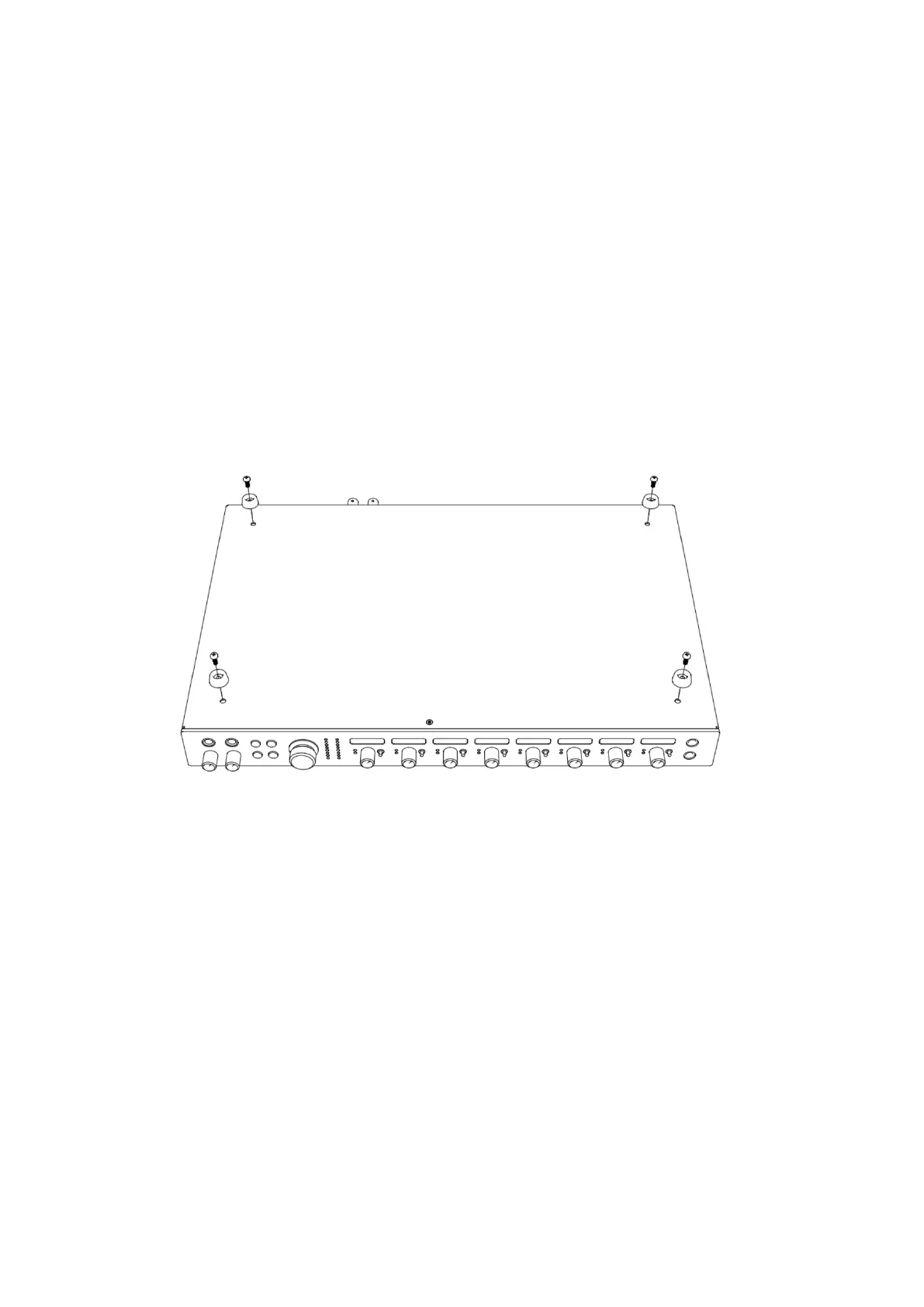

First, you would need to remove the rubber feet from the underside of the unit. To do this
remove the Phillips head screws from the centre of each foot with a screwdriver, and lift the
foot o the chassis.
Now, the Rack Ears can be attached to the side of the unit. On each side of the unit, there
are four threaded holes. Align the Rack Ears with these holes, and using a screwdriver,
screw the 4 included M3 Pozi screws into the threaded holes to secure the Rack Ear as
shown below.
