iD48 Syncing via Master Clock

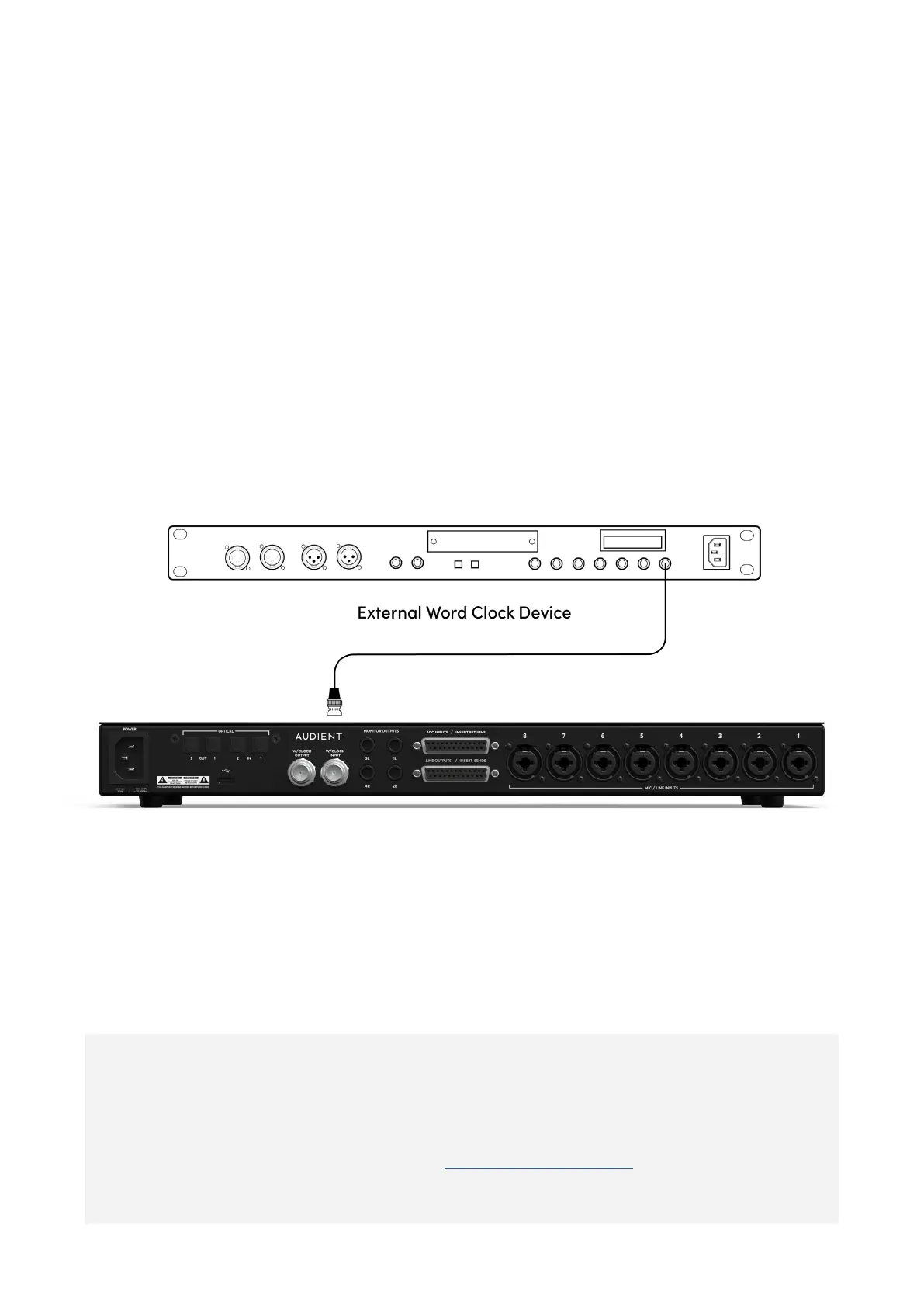

In this setup, an external clock source is being used to provide a clock to the iD48 via its BNC Word
Clock input.
A 75-Ohm BNC Word Clock Cable is connected to the BNC output of the external Clock and is
plugged into iD48’s Word Clock input.
iD48’s Clock Source should now be set to Word Clock. In addition, the 75 Ohm termination should
be enabled if the iD48 is the last, or only device in the Word Clock chain.
The above setups cover the most common configurations but are not
exhaustive. For more information regarding clocking, please visit out
Support Help Desk or contact us at support@audient.com
