Finishing off the mains wiring
Take the prepared twisted Brown/Blue wire now and

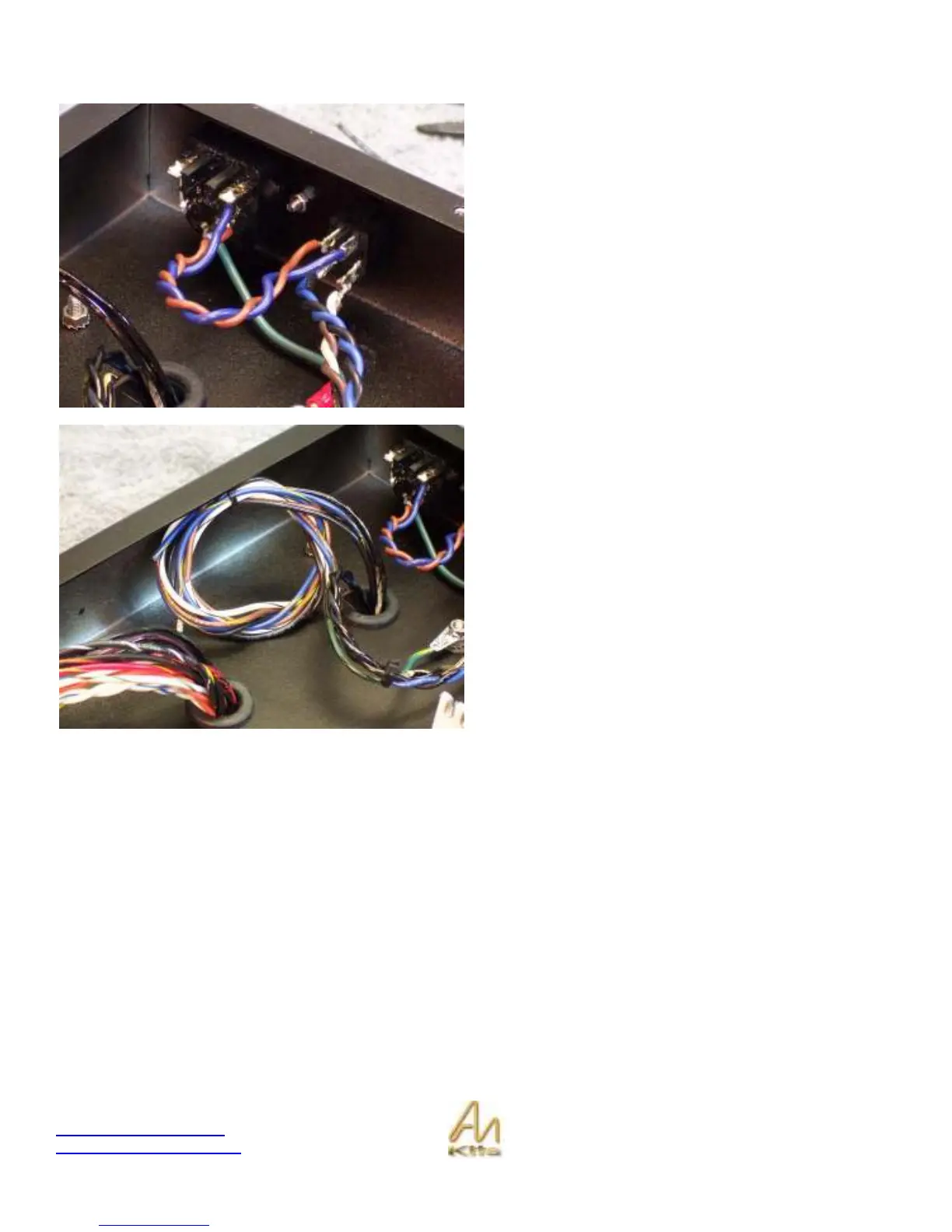

connect the rocker switch to the IEC plug as shown
opposite.
All the remaining wires on the Primary of the Mains
transformer can now be stowed away.
Cut off the exposed metal ends of these wires but keep
them to length.
You will want to heat shrink the ends so that they do not
come in contact with anything and tie wrap and tuck the
whole batch neatly away.
