Section 6: Front Insert Plate and Remaining Wiring
This is the Front Insert Plate for the Single Triode Mono
Block.
We will be installing a 4-pin valve Base for the 300B/2A3
triode and an 8-pin valve base for the 6SH7 input tube.
A TAG strip will also be installed before beginning work on
wiring it all up.
300B Valve Base Orientation

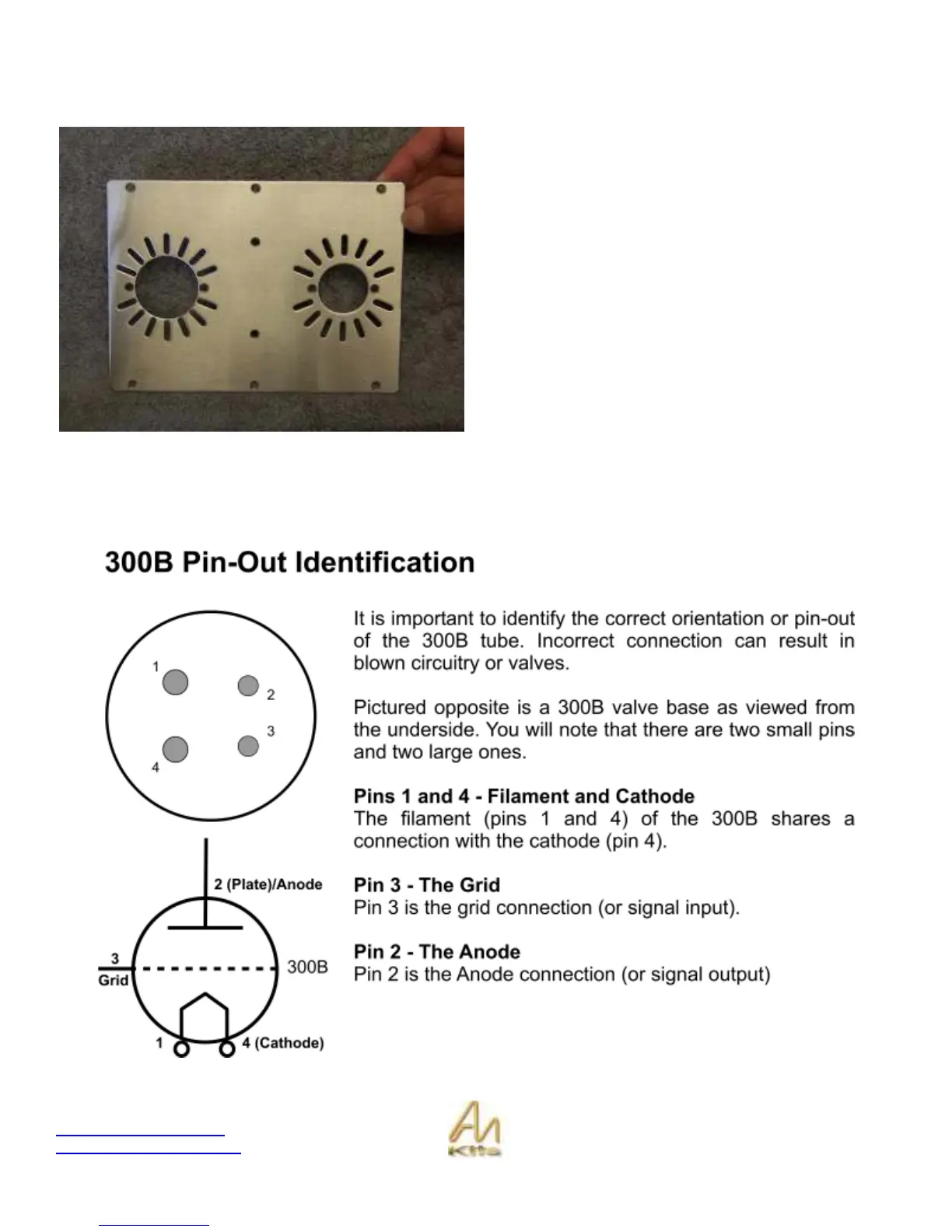

Please study the following diagram before fitting the 300B valve base.
