Additional Wiring for Parallel Triode Operation
The following is only applicable if you are building the Parallel version of the Mono Blocks and should otherwise
be ignored.

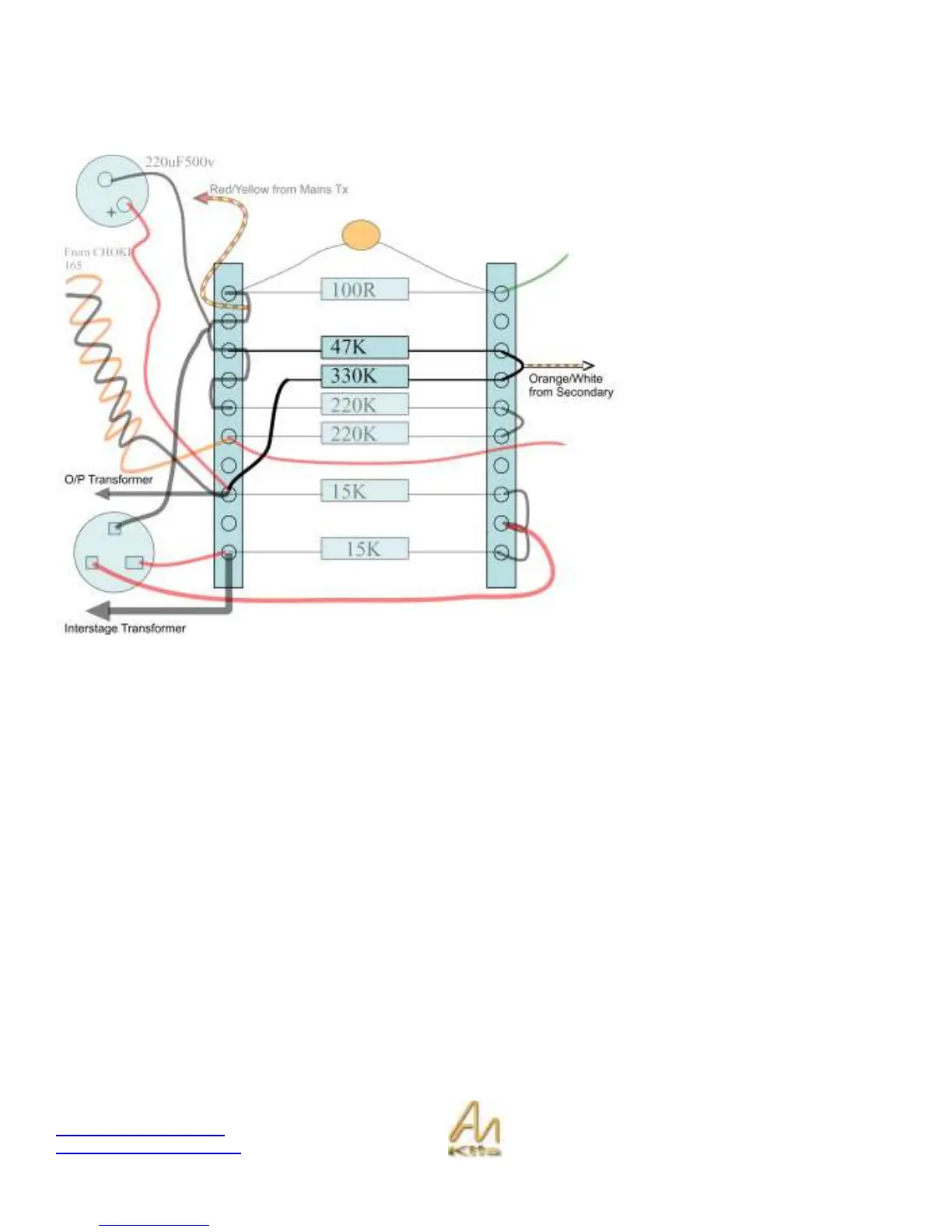

In the parallel Triode Power Supply
we need to add the 47K and 330K
resistors in order to “raise” up the
center tap on AC filament supply
we will be using for the 6SH7.
