Page 53

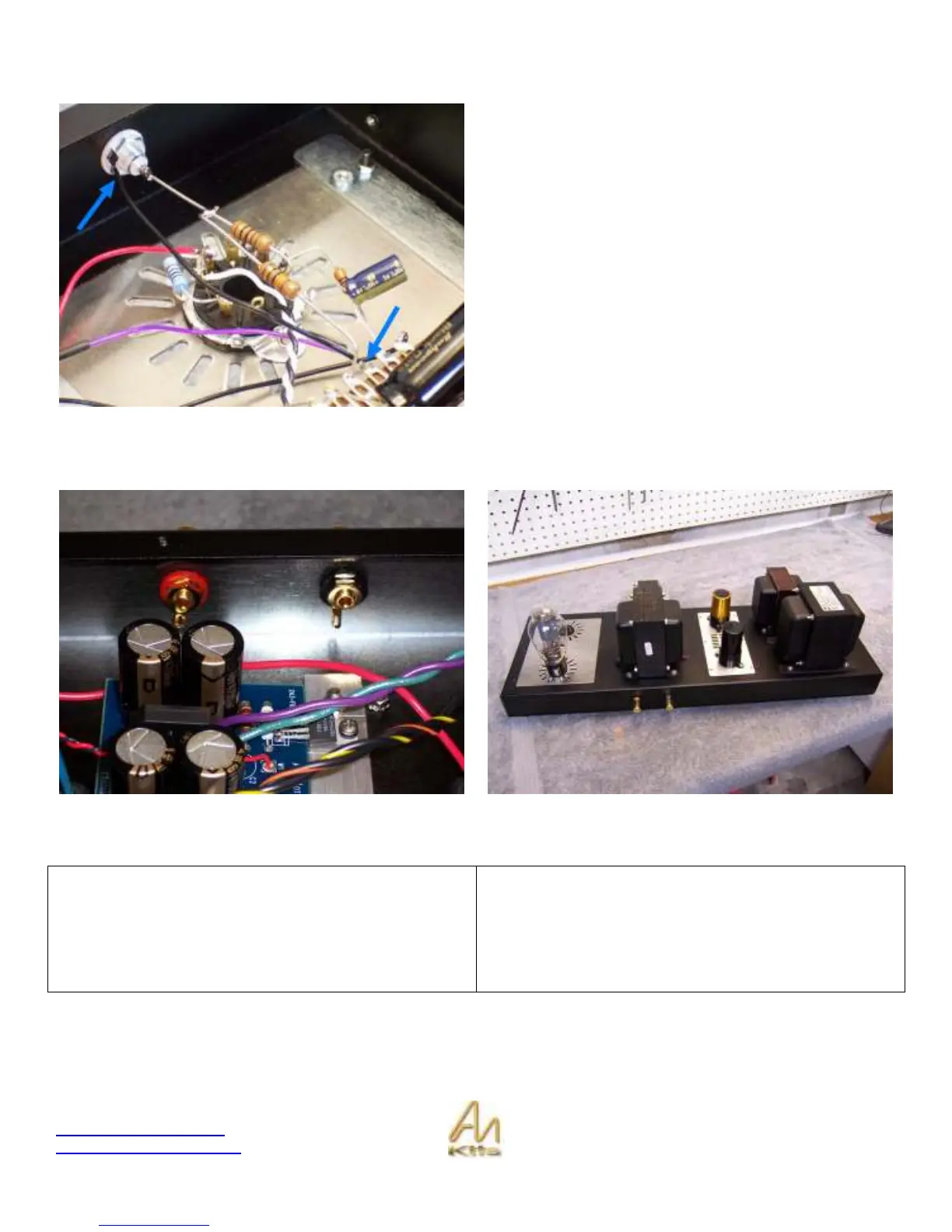

Input Signal Earth Connection
With the four wires from the interstage connected you need
to connect a black wire from the GND on the RCA to the
Tag strip on the insert plate.
Speaker Post Installation
Install the two speaker posts into the kit as shown aboe – Connect the red one closest to the front of the chassis – Make
sure that the plastic insulation is touching the chassis an no metal parts!
For 8 ohm operation
Solder the Red wire from the Output of the Mains
transformer to the RED post and the Black wire from the
transformer to the Black post.
You can heat shrink the end of the remaining blue wire.
For 4 ohm operation
Solder the Blue wire from the Output of the Mains
transformer to the RED post and the Black wire from the
transformer to the Black post.
You can heat shrink the end of the remaining red wire.
