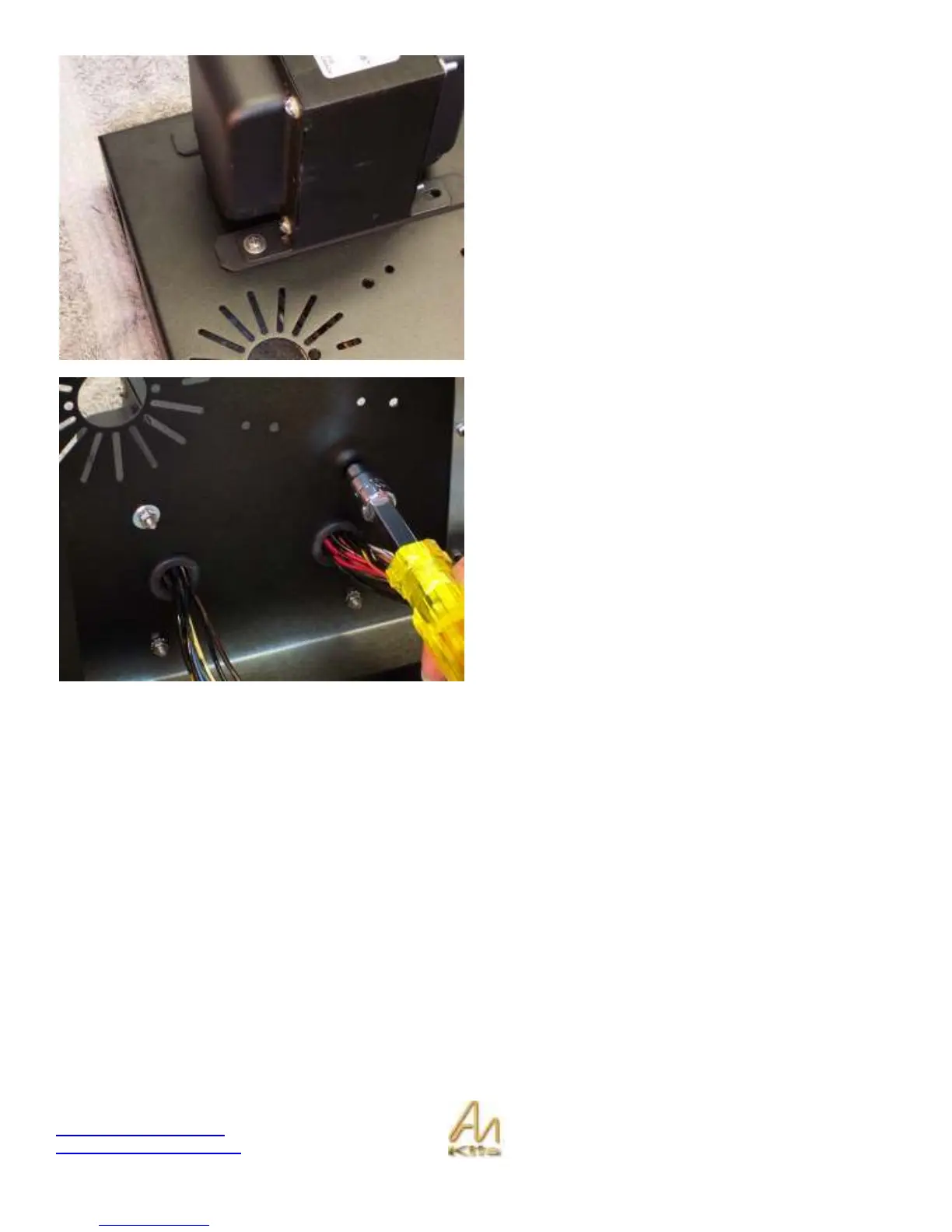

Make sure that the Mains transformer sits on the rubber
strips provided!
To secure the Mains transformer you will use a M4 16mm
pan head screw with a fender washer on top of the chassis.
On the underside of the chassis you will want to put a
serrated M4 washer against the chassis and secure with an
M4 Nut.
Secure the nuts on the underside of the chassis with a nut
driver or wrench.
Preparing the Secondary Wires
The following sequence shows that you will want to match the same colored wires in pairs on the secondaries and twist
them neatly. Then, it is a good idea to use the provided cable ties to tie the mains wire together and neatly store in the
chassis so that it is not in the way as we proceed with the mechanical build!
