Page 21
Power Supply Hard-Wiring
The Power Supply for the Mono Block is hardwired using two hardwire tag strips that you have already installed in your
chassis.

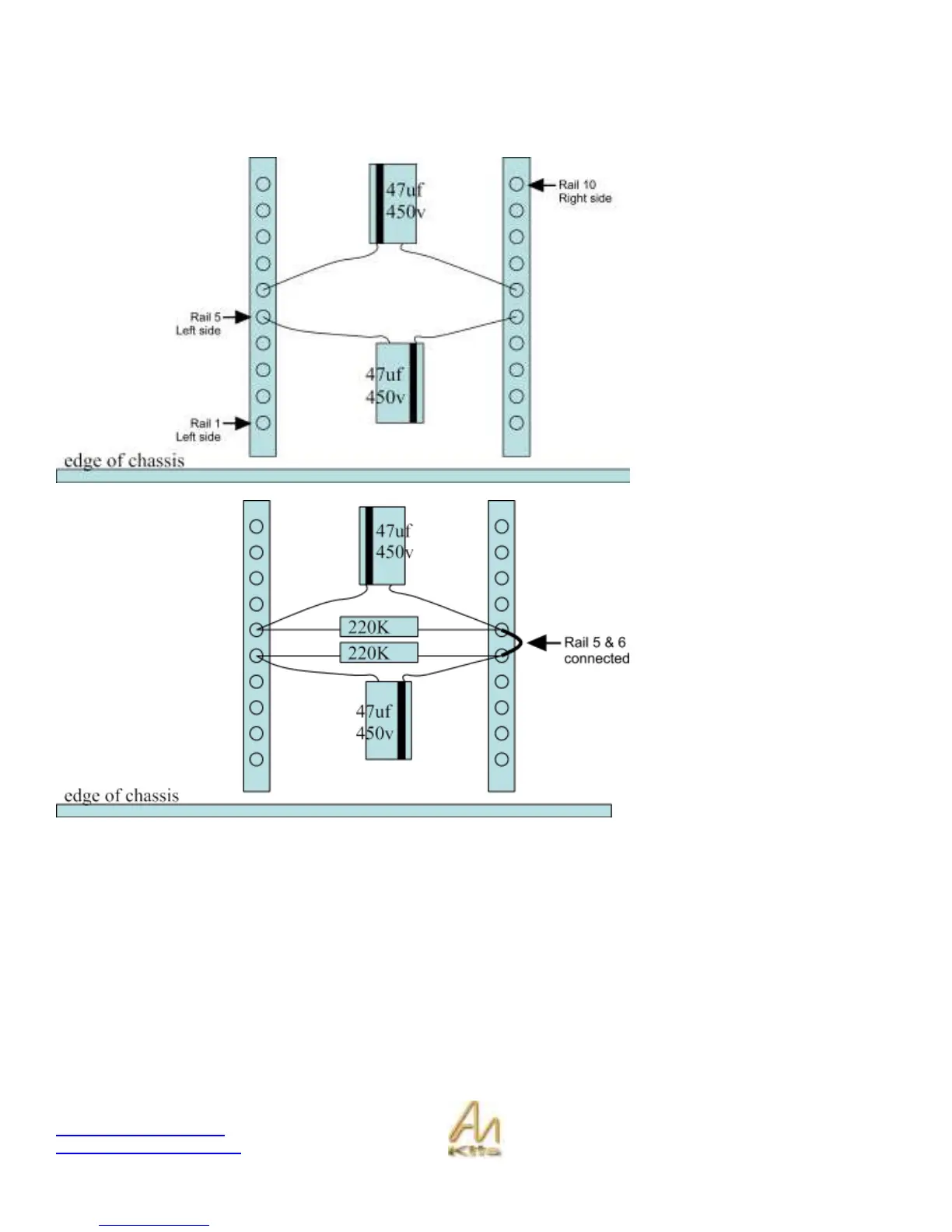

You will start by installing a pair of
47uf 450v electrolytic capacitors in
the manner shown opposite.
Bend them down such that they lie
along the bottom of the chassis, as
we will be installing resistors on top
of them.
Then install the 220k resistors as
shown opposite and make sure to
connect them on the right hand
side.
