Page 22

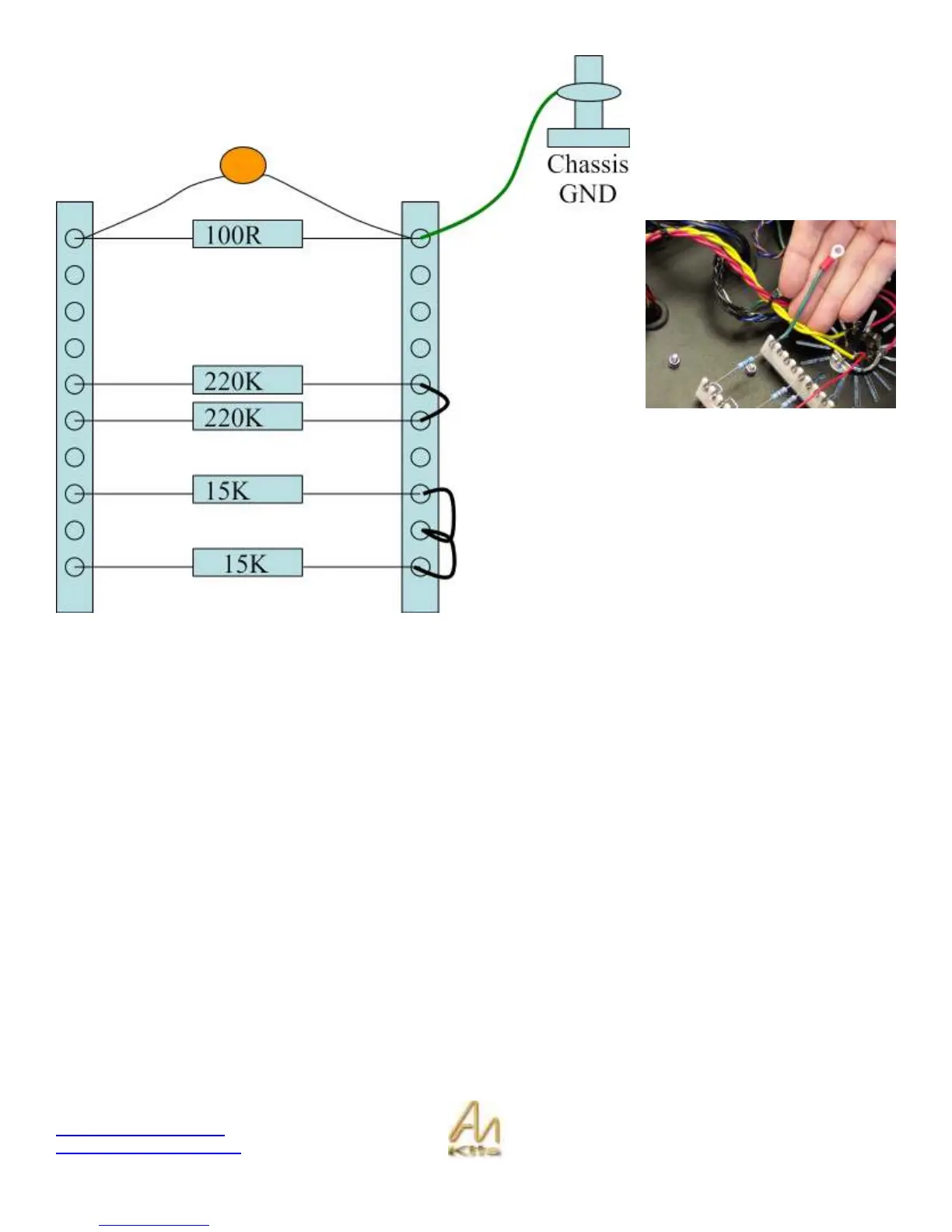

Note: We have not shown the 47uf
caps in this picture for clarity
purposes.
The next step is to install the
prepared ground wire clip. This
completes the chassis GND post so
it can now be tightened.
Add the 100R resistor on the top
rail. You will also need to install the
.001uf 1Kv capacitor (non polarized)
across the 100-ohm resistor on Rail
10.
Add the 15K resistors on the first
and third rail – bend the 15K
resistors into the second rail on the
right hand side and solder them
together.
