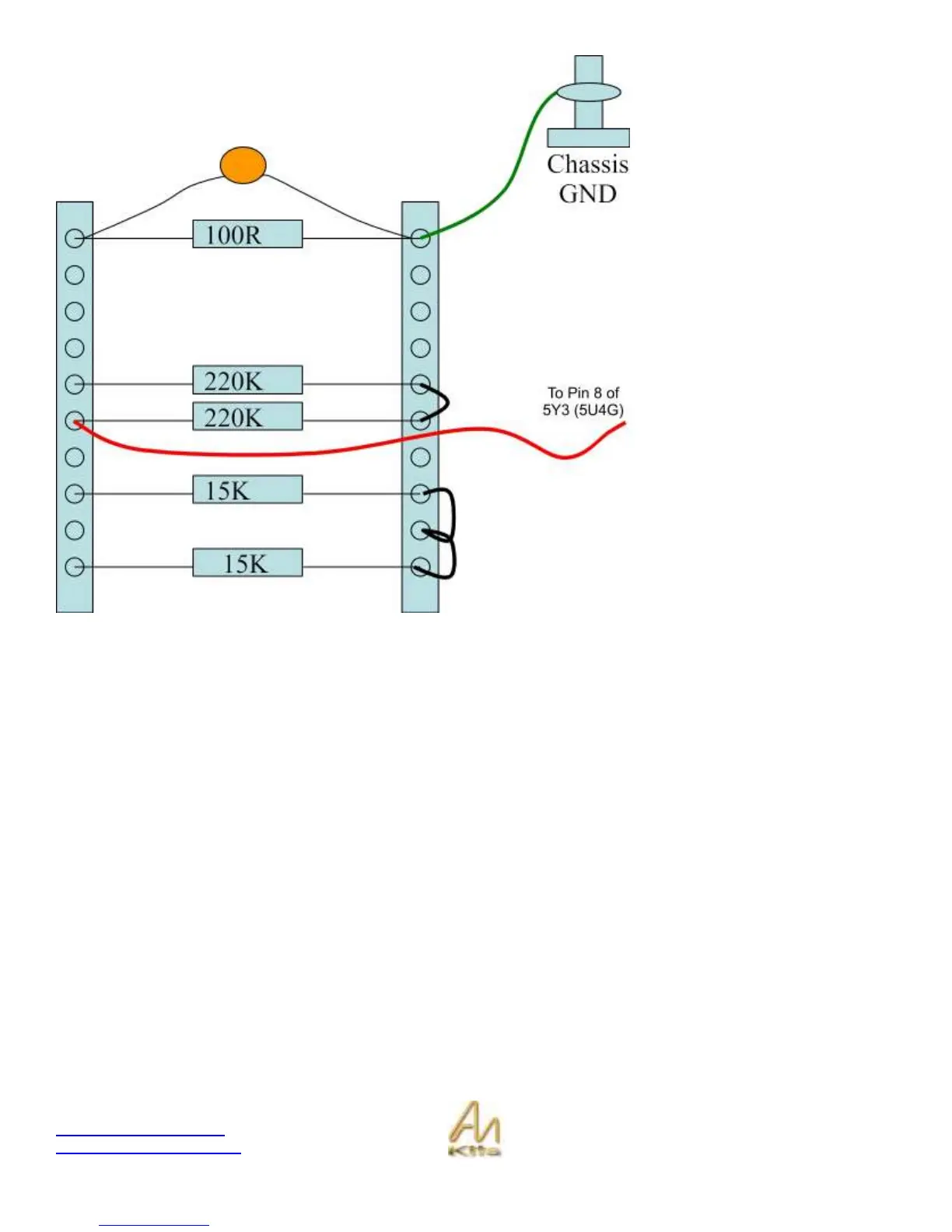

Now install a red wire from pin 8 of
the 5Y3 (5U4G) 8-pin octal valve
base over to the 220K resistor on
rail 5 LEFT hand side.
