AC Wiring Guide (Mk3 Mains Transformer)

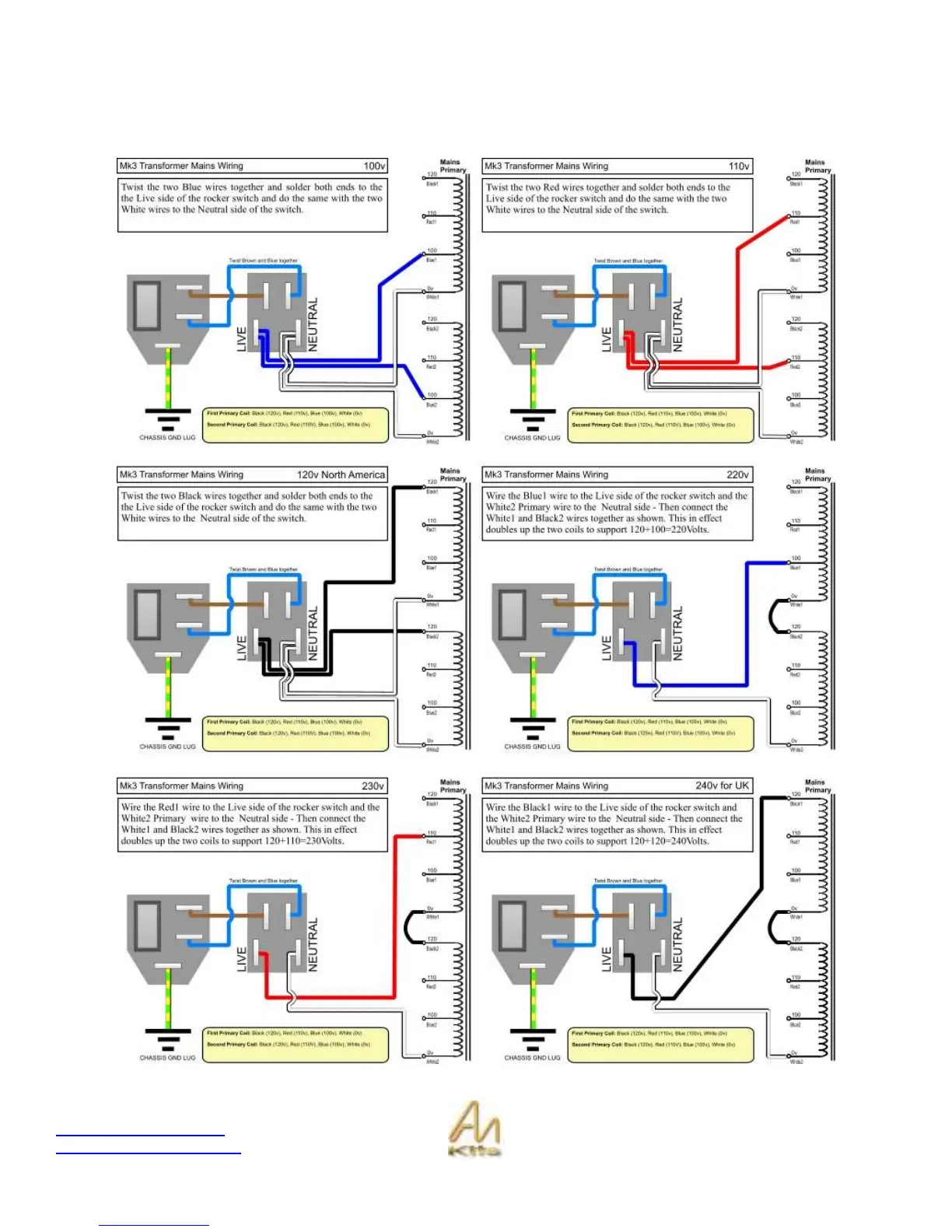

The following diagrams show the mains wiring configurations for the various world voltages. It is recommended that you
cross out the ones that don't apply to you so that you can't follow the wrong one.
