Page 57
Checklist
Go through all these checks and check off that they are as listed…
Output Transformer Primaries

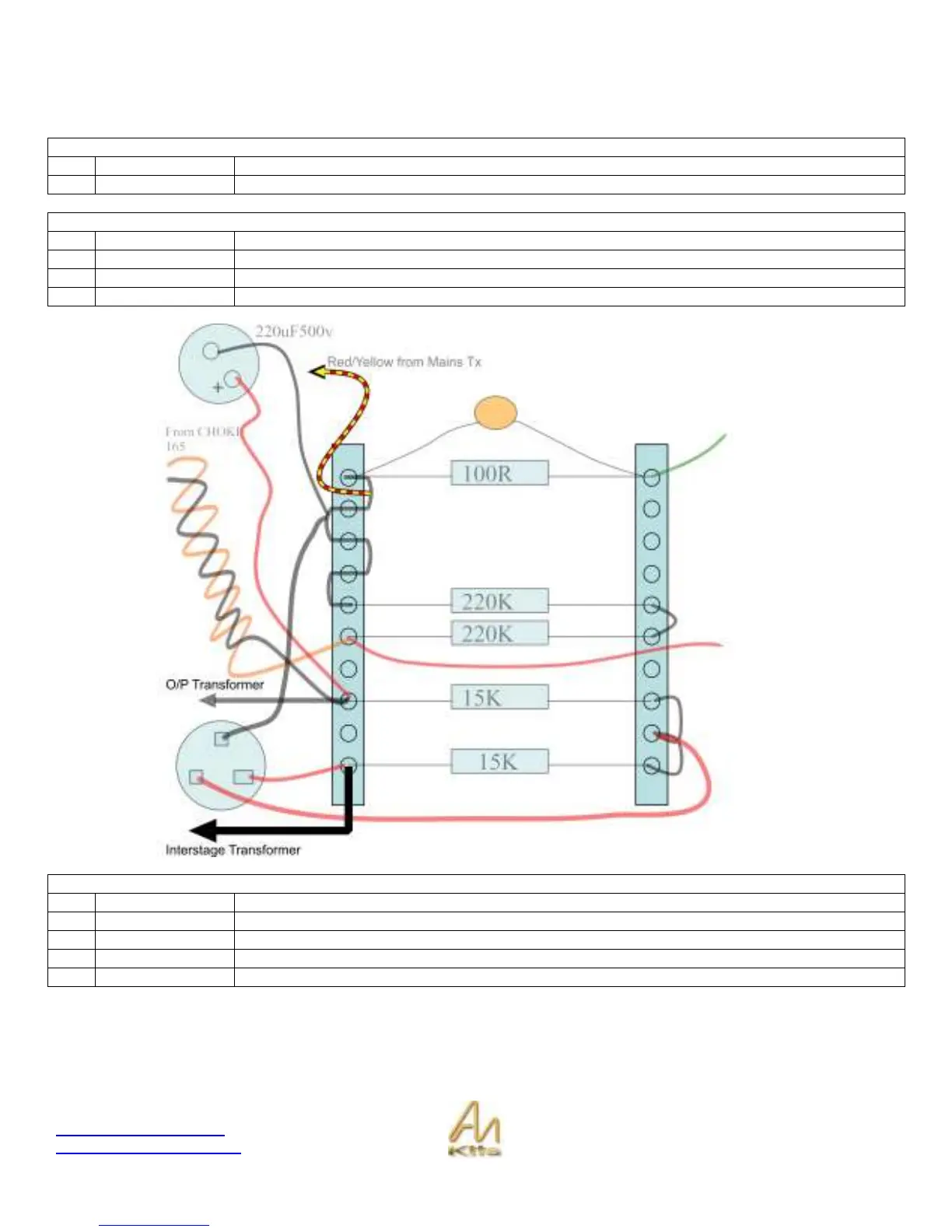

Black wire 15K resistor on PS (see graphic below)
Red wire
Pin 2 300B
Interstage Transformer
Red Pin 8 of 6SH7
White
To 3K3 resistor that connects to pin 3 of 300B
Blue GND tag strip on Front Insert Plate
Black 15K resistor on power supply (see graphic below)
Mains Secondary
Green Wire To W5 on filament Board
Violet Wire
To W7 on filament Board (Black/Green for 2A3 operation)
Black To W6 on filament Board
Blue To W8 on filament Board
Red/Yellow To GND on Power Supply
