Page 24

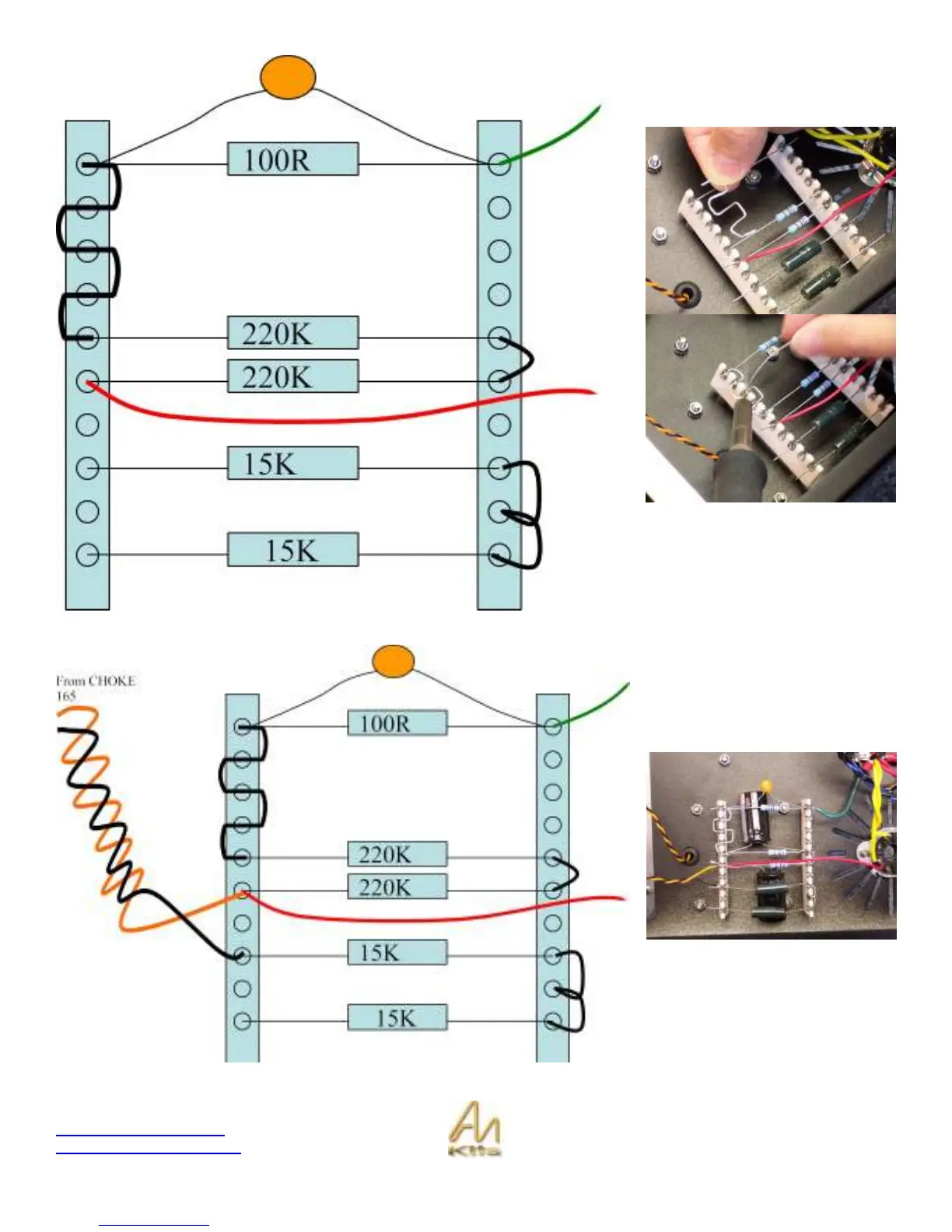

Now take a piece of silver wire and
shape it such that it can be
positioned across Rails 6 -10 on the
left hand side.
NOTE: Note how the silver wire
hangs over the edge – this is a
good thing because you can clip
onto it as it is the main GROUND
for the circuit and very useful for
testing DC voltages in the kit later
on!
Next step is to install the choke
wires as you can see here – one
side connects to Rail 3 LEFT and
the other side connects to Rail 5
Left.
Remember when viewing the
diagrams that the 47uf capacitors
are not shown for clarity purposes.
