Audio Note Mono Block 300b/2A3 - Connecting Blue Interstage Wire

Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com
Page 52

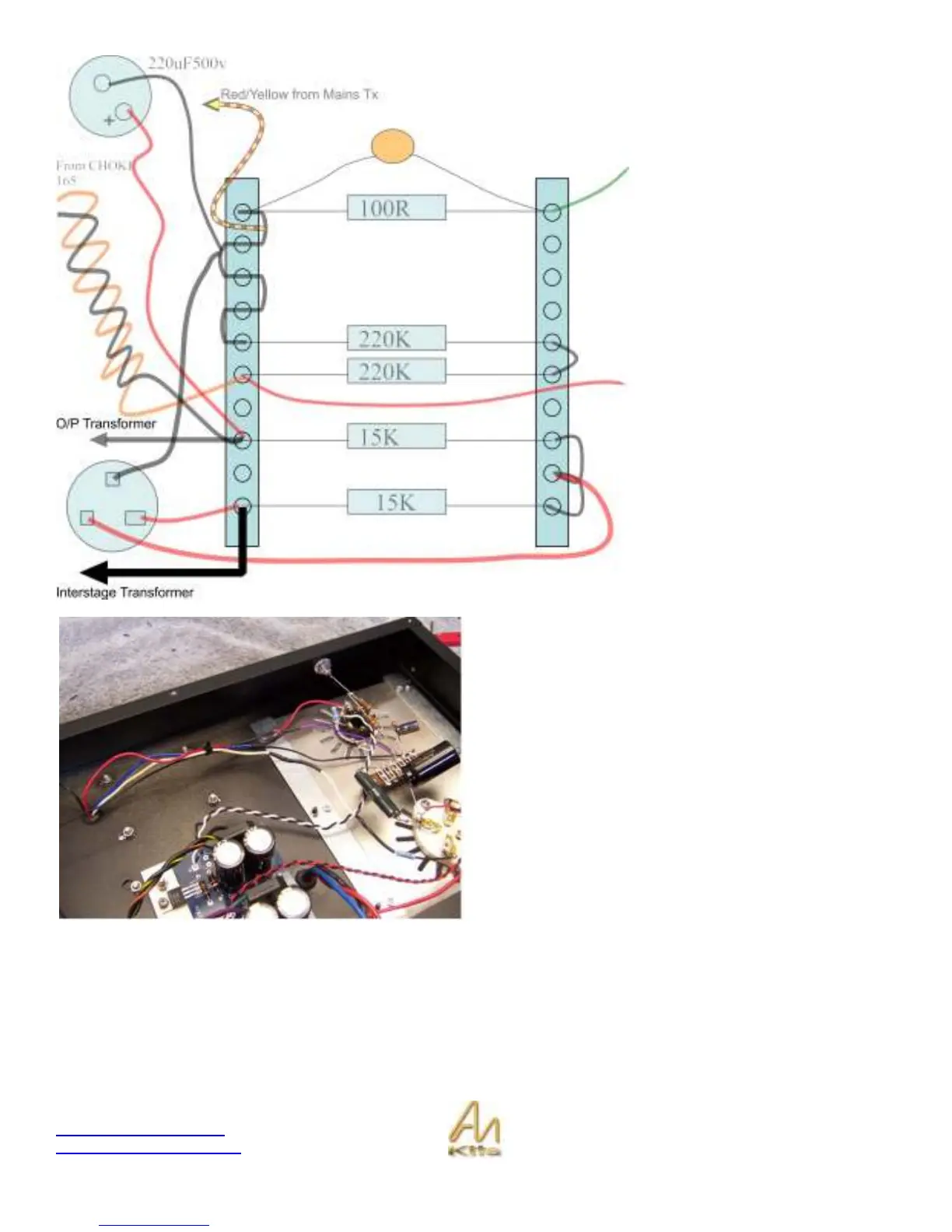

See the black wire position as it
connects to the 15K resistor.
Then the last wire - the BLUE wire you will need to extend
with purple wire and connect to the GND tag on the Front
insert plate.
