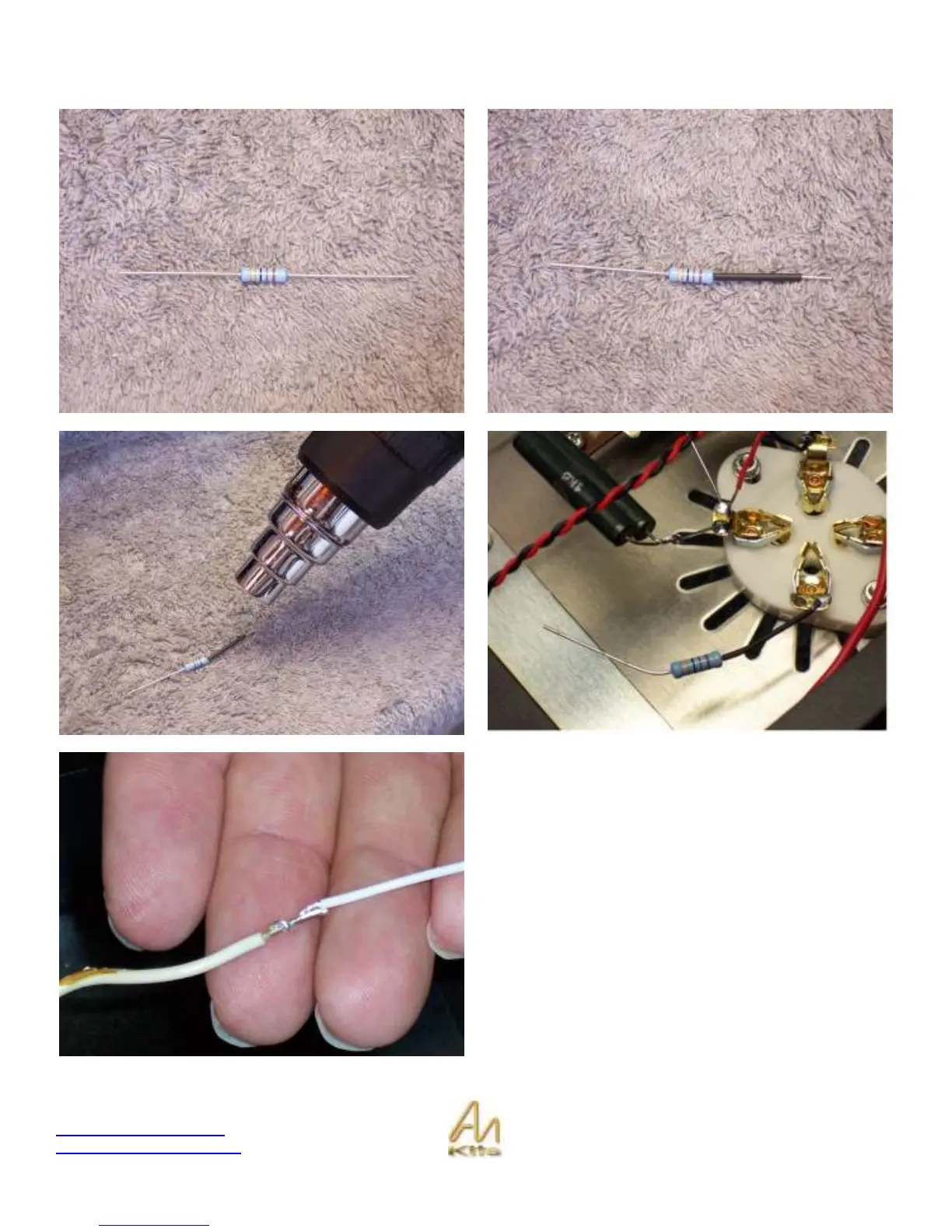

Let’s start by installing the 3K3 resistor with Heat shrink onto pin 3 of the 300B valve base – see the following sequence:
Now to connect the white wire from the interstage
transformer. First, the wire must be extended to enable it to
reach - so lets start by extending the white wire from the
Interstage transformer.
Select some white PTFE wire from the Wire Bag – Here’s
the trick – strip both ends and TIN only on end – then wrap
the un-tinned wire around the tinned wire.
Then Solder the connection, put on some heat shrink, and
then shrink it over the area
Please refer to the following sequence…
