Audio Precision Portable One Plus Access User Manual

Unbalanced Connections
Many devices use unbalanced connectors, such as the RCA (phono)
connector, the BNC, or the 1/4" Phone jack.
When connecting an unbalanced device, it is recommended that
2-conductor shielded cable be used. This offers higher immunity to
noise and interference than single-conductor cable. The following
diagram shows the preferred cable connections.
1 2
3
XLR Male
or Female
RCA/Phono Plug
2 Conductor shielded cable
Shield not connected this end
1 2
3
XLR Male
or Female
2 Conductor shielded cable
Shield not connected this end
Sleeve
Tip
1/4" Phone Plug
1 2
3
XLR Male
or Female
2 Conductor shielded cable
Shield not connected this end
BNC Connector
Examples:
1 2
3
XLR Ma
l
e
or Female
2 Conductor shielded cable
Shield not connected this end
To Signal Conductor
To Ground

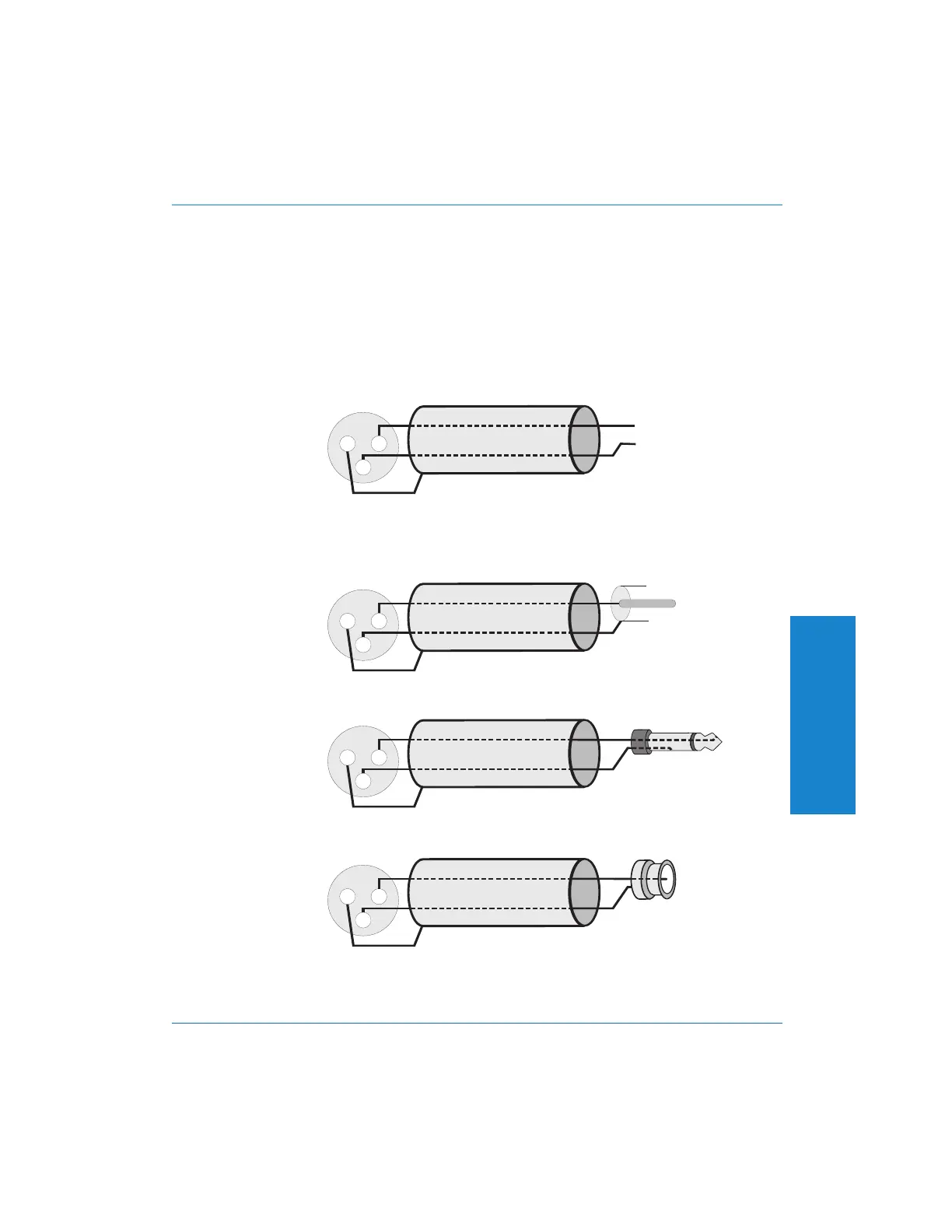

Figure 6-5. Preferred Unbalanced Cable Connections
6
Diagrams
Cable Diagrams Detailed Technical Diagrams
Portable One Plus Access User's Manual 6-9
