Audio Precision Portable One Plus Access User Manual

Generator Controls
The A and B On/Off buttons turn the A and B channels of signal
generation on and off. The yellow lights for each channel indicate
whether that channel is providing output. If the light is on, then the
channel is enabled. The On/Off function affects the internal
generator-monitor path as well as the external generator outputs.
The MUTE key will immediately disconnect both channels of output.
A second press of the MUTE key will turn on any channels of output
that were turned on before MUTE was initially pressed.
In most cases, the Amplitude controls will control the amplitude of both
channels of the analog output signal and the Frequency controls will
control the frequency of both channels of the analog output signal. In
some analyzer situations, other parameters may be connected to these
knobs when viewing the Main Panel. However, the knobs always
control the generator amplitude and frequency when you are viewing
the Generator Only panel. The generator operates no matter which
panel you are viewing.
The generator section of the panel on the Main Panel or Generator
Only Panel will display the current amplitude, frequency, and
waveform shape.
The waveform shape is controlled by the upper left soft key on the
Generator Only panel. Waveform shapes of sine, square, and IMD (if
IMD option is installed) are available with subsequent presses of the
soft key.
dBr ZERO
350 Vpk MAX
PRINT
INSTRUMENT MODE
PANELS BARGRAPH SWEEP
MONITOR
CONTRAST
RECALL
SAVE
CAT II
FUNCTION
dBr ZERO
LEVEL
PHASE
RATIO
XTALK
GEN
LOAD
THD+N
SINAD
IMD
W+F
AC MAINS
CHECK
AMPL
NOISE
ANALYZER INPUTS
GENERATOR OUTPUTS
PORTABLE ONE PLUS
OUTPUT
A
MUTE
B
GEN
AB
INPUT
AMPLITUDE
DEC
+10dB
INC
-10dB
FREQUENCY
-10
INC
10
x
.
.
DEC
BA
AB
!!
CAT II
PRINT
INSTRUMENT MODE
PANELS BARGRAPH SWEEP
MONITOR
CONTRAST
RECALL
SAVE
CAT II
FUNCTION
dBr ZERO
LEVEL
PHASE
RATIO
XTALK
GEN
LOAD
THD+N
SINAD
IMD
W+F
AC MAINS
CHECK
AMPL
NOISE
ANALYZER INPUTS
GENERATOR OUTPUTS
PORTABLE ONE PLUS
OUTPUT
A
MUTE
B
GEN
AB
INPUT
AMPLITUDE
DEC
+10dB
INC
-10dB
FREQUENCY
-10
INC
10
x
.
.
DEC
BA
AB
!!
CAT II
PORTABLE ONE PLUS
!
FREQUENC
Y
CONTROLS
AMPLITUDE
CONTROLS
MUTE AND
ON/OFF CONTROLS
PORTABLE O NE PLUS

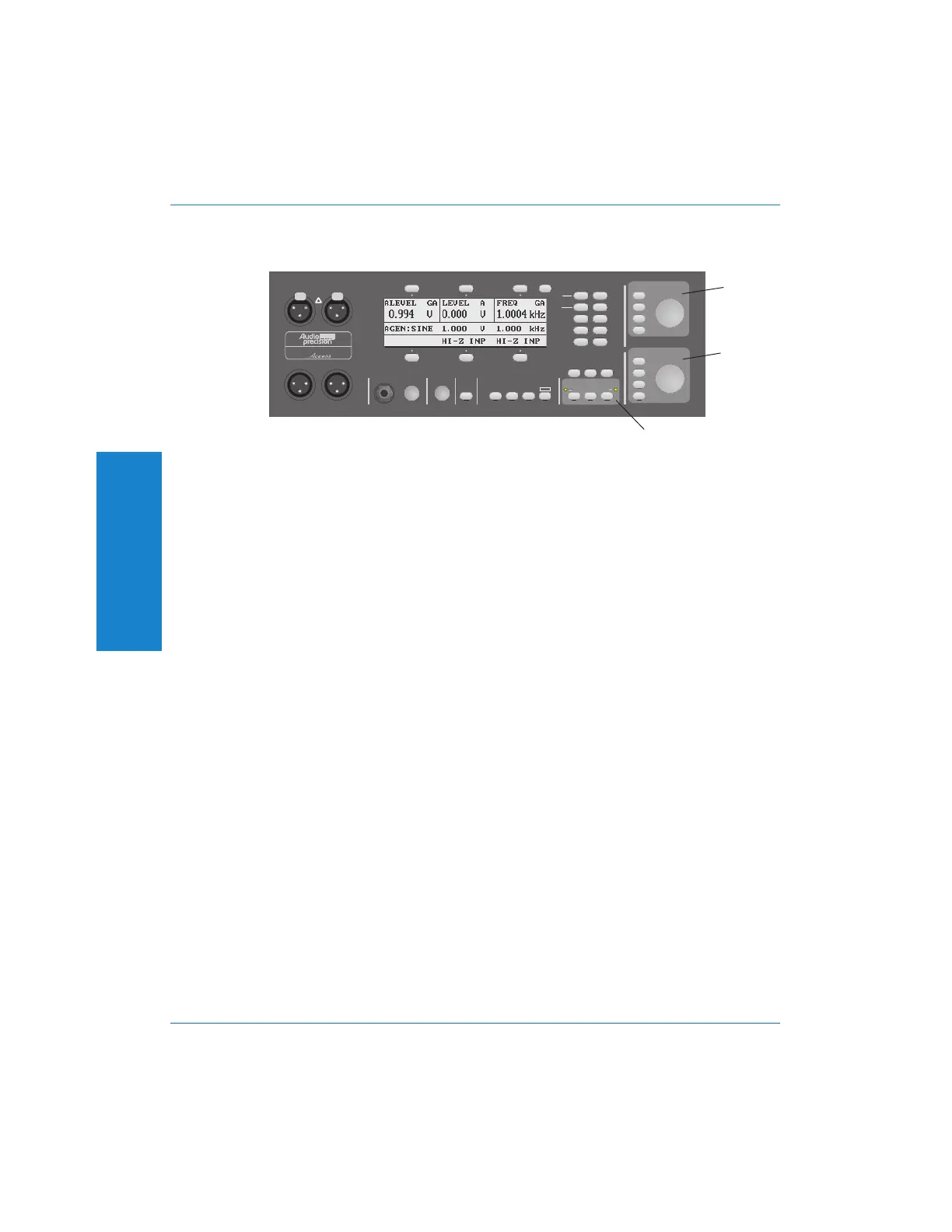

Figure 4-9. Generator Controls
& For
instructions on
navigating to a
specific panel,
see page 4-1.
& For more
information on
Frequency and
Amplitude controls,
see page 4-6.
4 Operation
Operation Controlling the Generator : Generator Controls
4-12 Portable One Plus Access User's Manual
