Printer Port
The Portable One Plus Access is equipped with a parallel printer port
for connection to a printer. The printer can then be used to print
hi-resolution graphs or numerical data from a sweep, and any screen
data may be captured and printed.
Most laser, ink-jet, and dot matrix printers are supported.
The printer connector is a female DB-25. Most printers are sold with
an interface cable with this type of connector.
If your printer is not equipped with an interface cable that can connect
directly to the parallel port, it probably has either a male DB-25
connector or a Centronics connector on it. An adapter cable must be
obtained to connect the printer to the Portable One Plus Access.
These adapter cables are very standard and are available from any
store that sells computer accessories.
When you connect your printer, you will want to select the data format
for printer output, depending on what type of printer you have. This
selection is made on the Setup Panel.
For more information on printer data formats and printing, see page
4-63.
I
O
FUSE REPLACEMENT DATA
230/240 VAC
250mA T/SB 250V
100/120 VAC
500mA T/SB 250V
SUPPLY VOLTAGE
FUSE
MAXIMUM POWER: 60 VA
FREQUENCY: 50/60 Hz.
100/120/230/240 VAC
SUPPLY VOLTAGE:
TRIGGER SIGNALS
INPUT ANALOG DIGITAL
BAL
BAL
UNBAL UNBAL
5Vpp MAX
5Vpp MAX
OPTICAL OPTICAL
MONITORS
INPUT
REFERENCE DIGITAL OUTPUT DIGITAL INPUT
Manufactured in Beaverton, Oregon, USA
PARALLEL PRINTER
IEEE-488 INTERFACE
5,247,458; 5,420,516; 5,336,989. Other patent applications pending.
4,614,914; 4,563,652; 4,631,522; 5,089,981; 5,136,267; 5,265,201;
This product is protected by one or more of the following patents:
INSTRUMENT RESET
To restore factory default instrument settings,
hold dBr button and turn on mains power switch.
To set instrument GPIB address, use utility menu
under PANELS selection on front panel.
GPIB
ADDRESS
RL1, PP0, DC1, DT1, C0, E1
SH1, AH1, T6, TE0, L4, LE0, SR1,
PORTABLE ONE
R
ANALYZER
100 V
120 V
230 V
240 V
Date of manufacture Code
Audio Measurement System
PORTABLE ONE PLUS
Aux 2:
Aux 1:
Opt'l Filters:
Installed Options:
Special
EGZ Euro. Impedances
P1P-488 GPIB Inter.
P1-IMD Intermod. Distortion
PRINTER
NNE
T
R

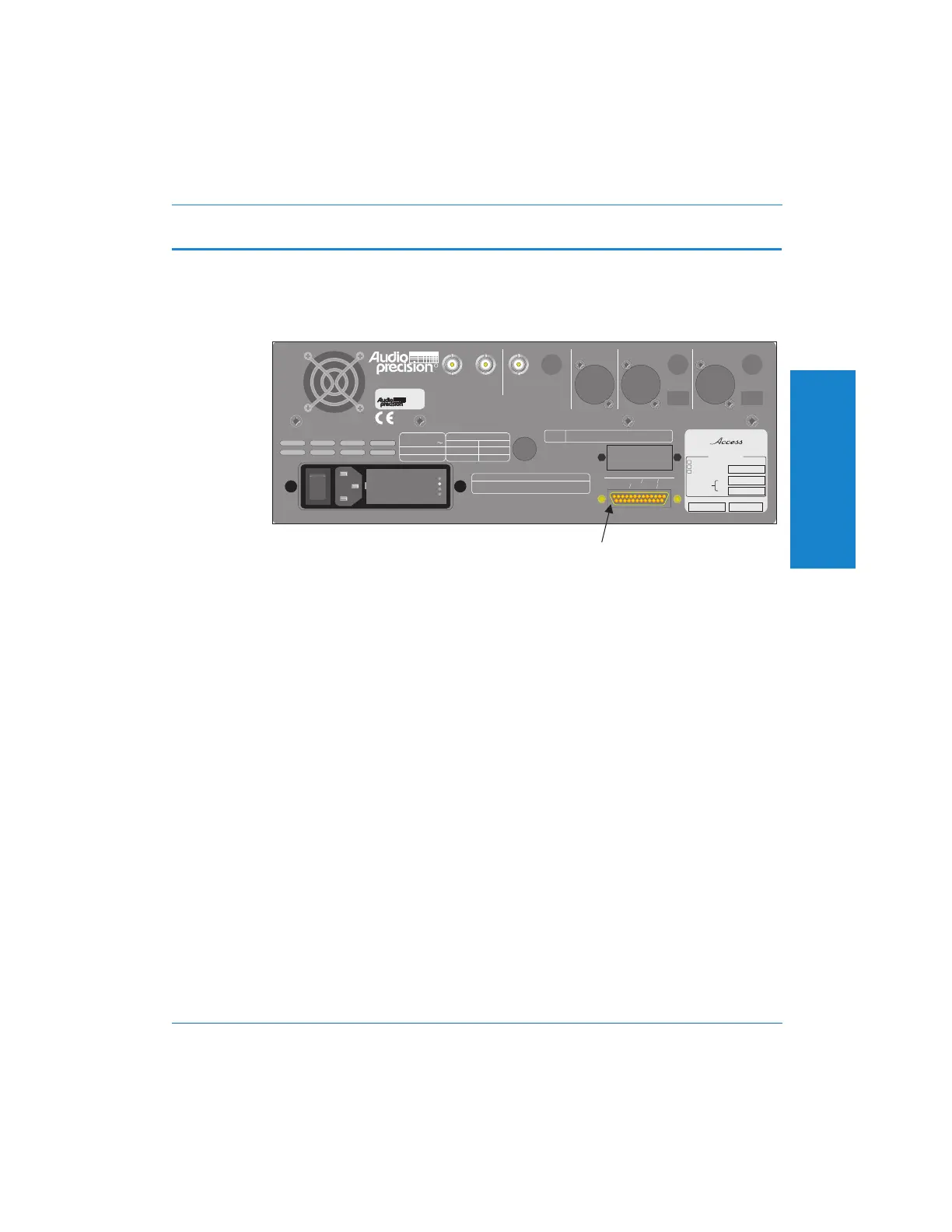

Figure 3-6. Rear Panel with Printer Port Marked
