Rear Panel Overview
.
SERIAL NUMBER LABEL - This label shows the serial number
of the Portable One Plus Access
.
MONITOR OUTPUTS - These connectors provide monitor
outputs of the signal at the INPUT and after processing for the
READING.
.
TRIGGER OUTPUT - This connector provides output for the
purpose of triggering an external oscilloscope. The signal is
synchronized to the generator output.
.
DIGITAL EXPANSION AREA - These connector holes are
provided to facilitate future upgrade to Portable One Dual
Domain.
.
OPTIONS LABEL - This label provides details about the
optional accessories installed in the Portable One Plus Access.
.
GPIB CONNECTOR - This connector allows the unit to be
connected to a GPIB instrument controller. It only exists if the
GPIB option is installed.
.
PRINTER CONNECTOR - This connector provides output to
drive a standard PC-compatible parallel ink-jet, dot matrix, or
laser printer.
I
O
FUSE REPLACEMENT DATA
230/240 VAC
250mA T/SB 250V
100/120 VAC
500mA T/SB 250V
SUPPLY VOLTAGE
FUSE
MAXIMUM POWER: 60 VA
FREQUENCY: 50/60 Hz.
100/120/230/240 VAC
SUPPLY VOLTAGE:
TRIGGER SIGNALS
INPUT ANALOG DIGITAL
BAL
BAL
UNBAL UNBAL
5Vpp MAX
5Vpp MAX
OPTICAL OPTICAL
MONITORS
INPUT
REFERENCE DIGITAL OUTPUT DIGITAL INPUT
Manufactured in Beaverton, Oregon, USA
PARALLEL PRINTER
IEEE-488 INTERFACE
5,247,458; 5,420,516; 5,336,989. Other patent applications pending.
4,614,914; 4,563,652; 4,631,522; 5,089,981; 5,136,267; 5,265,201;
This product is protected by one or more of the following patents:
INSTRUMENT RESET
To restore factory default instrument settings,
hold dBr button and turn on mains power switch.
To set instrument GPIB address, use utility menu
under PANELS selection on front panel.
GPIB
ADDRESS
RL1, PP0, DC1, DT1, C0, E1
SH1, AH1, T6, TE0, L4, LE0, SR1,
PORTABLE ONE
R
ANALYZER
100 V
120 V
230 V
240 V
Date of manufacture Code
Audio Measurement System
PORTABLE ONE PLUS
Aux 2:
Aux 1:
Opt'l Filters:
Installed Options:
Special
EGZ Euro. Impedances
P1P-488 GPIB Inter.
P1-IMD Intermod. Distortion
OPTION
LABEL
GPIB CONNECTOR
(OPTIONAL)
PRINTER
CONNECTOR
POWER
SWITCH
SERIAL NUMBER
LABEL
MONITOR
OUTPUTS
TRIGGER
OUTPUT
DIGITAL
EXPANSION
AREA
FUSE
REPLACEMENT
DATA
POWER
CORD
CONNECTOR
LINE
VOLTAGE
INDICATOR
HOLES

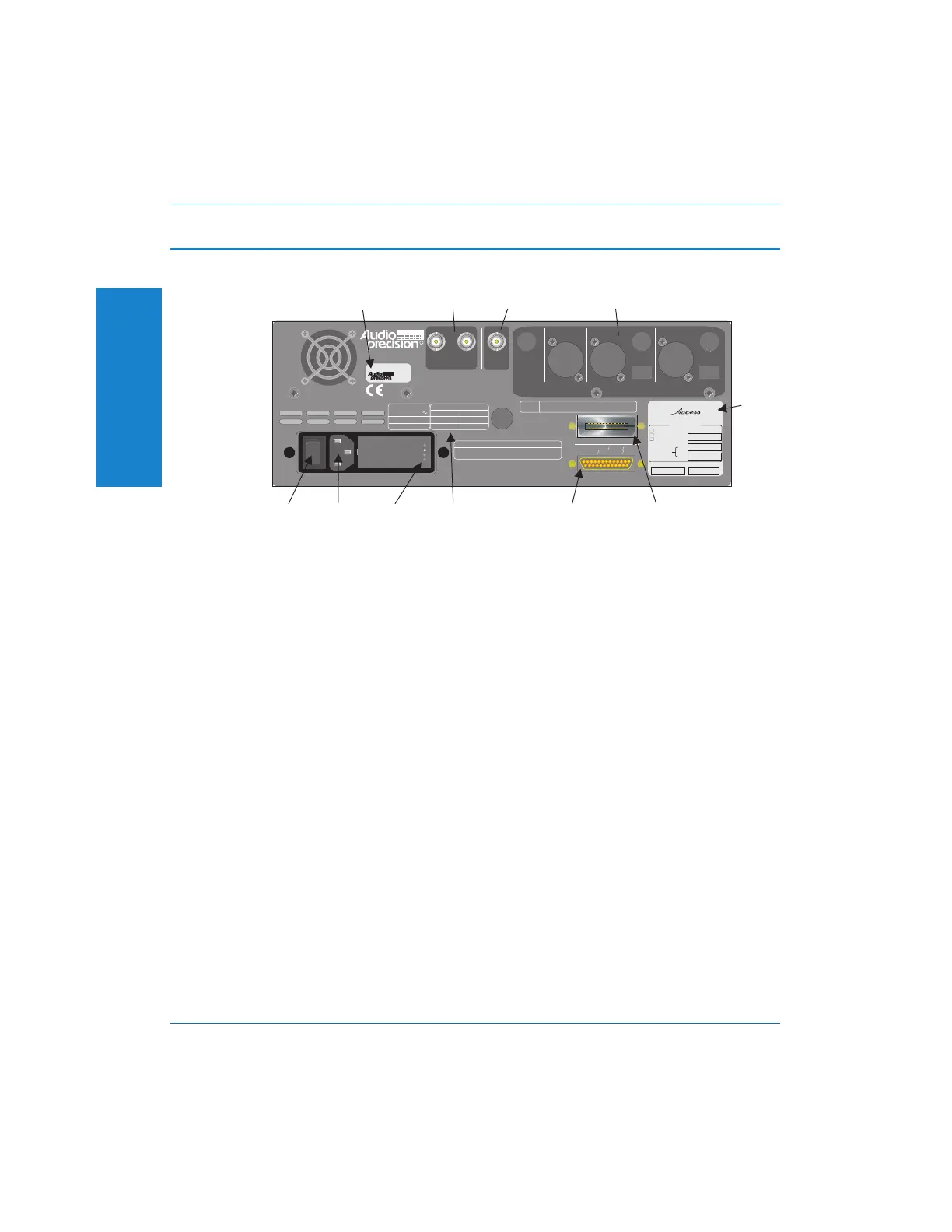

Figure 2-5. Rear Panel Overview
& Monitor Outputs
- page 3-6.
& Trigger Output -
page 3-5.
& Connecting
Printers - page 3-7.
& Options Label -
page 2-8.
& GPIB Connector -
page 3-8.
2 Setting Up
Getting Started Rear Panel Overview
2-6 Portable One Plus Access User's Manual
