Audio Precision Portable One Plus Access User Manual

GPIB Interface
The Portable One Plus Access can be purchased with the P1P-488
option, which provides a GPIB interface (also called IEEE-488) for
connection to a host computer. The host computer can then control
the instrument for a variety of automated applications.
The computer must be equipped with appropriate GPIB controller
hardware (available on a plug-in card) and GPIB control software.
Connection from the host computer to the Portable One Plus Access
requires a standard GPIB cable. These same cables may also be used
to connect to other devices in a GPIB chain.
For more information on using GPIB, see the Portable One GPIB
Programmer’s Reference Manual provided with the P1P-488 option.
I
O
FUSE REPLACEMENT DATA
230/240 VAC
250mA T/SB 250V
100/120 VAC
500mA T/SB 250V
SUPPLY VOLTAGE
FUSE
MAXIMUM POWER: 60 VA
FREQUENCY: 50/60 Hz.
100/120/230/240 VAC
SUPPLY VOLTAGE:
TRIGGER SIGNALS
INPUT ANALOG DIGITAL
BAL
BAL
UNBAL UNBAL
5Vpp MAX
5Vpp MAX
OPTICAL OPTICAL
MONITORS
INPUT
REFERENCE DIGITAL OUTPUT DIGITAL INPUT
Manufactured in Beaverton, Oregon, USA
PARALLEL PRINTER
IEEE-488 INTERFACE
5,247,458; 5,420,516; 5,336,989. Other patent applications pending.
4,614,914; 4,563,652; 4,631,522; 5,089,981; 5,136,267; 5,265,201;
This product is protected by one or more of the following patents:
INSTRUMENT RESET
To restore factory default instrument settings,
hold dBr button and turn on mains power switch.
To set instrument GPIB address, use utility menu
under PANELS selection on front panel.
GPIB
ADDRESS
RL1, PP0, DC1, DT1, C0, E1
SH1, AH1, T6, TE0, L4, LE0, SR1,
PORTABLE ONE
R
ANALYZER
100 V
120 V
230 V
240 V
Date of manufacture Code
Audio Measurement System
PORTABLE ONE PLUS
Aux 2:
Aux 1:
Opt'l Filters:
Installed Options:
Special
EGZ Euro. Impedances
P1P-488 GPIB Inter.
P1-IMD Intermod. Distortion
GPIB CONNECTOR
(OPTIONAL)

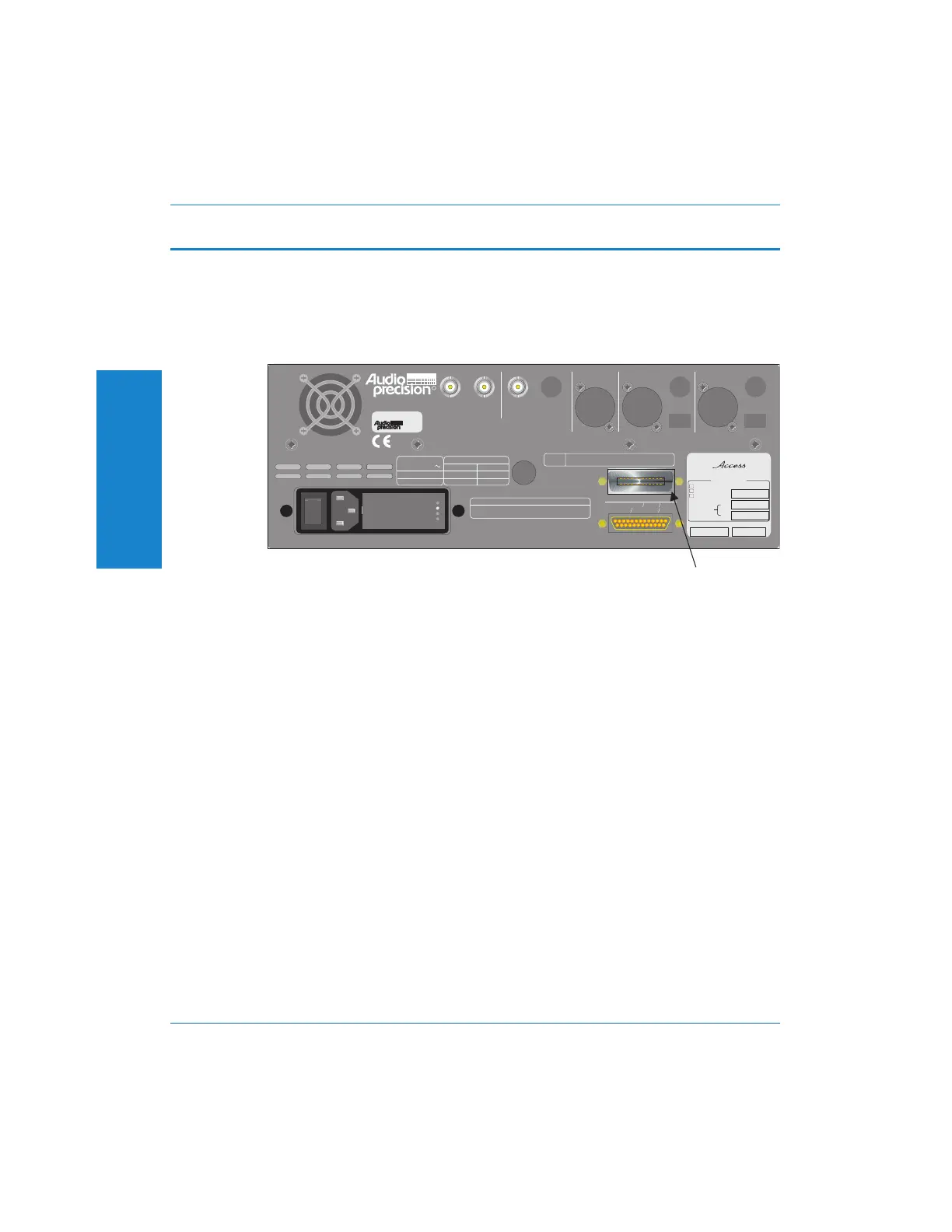

Figure 3-7. Rear Panel with GPIB Interface Connector Marked
3 Connecting
External Connections GPIB Interface
3-8 Portable One Plus Access User's Manual
