RECALL/SAVE Key
The RECALL/SAVE key provides access to the Recall/Save panel,
which allows storage and recall of up to 30 different test
configurations, including test data. The Recall/Save panel looks like
this:
For more information on Saving and Recalling test setups, see page
4-62.
Soft Keys
The six keys around the perimeter of the display are called the ‘Soft
keys’. The function of these keys depends on what panel is displayed.
Directly above or below the key will be a word indicating the function
of the key, or the current value of the controlled parameter.
On the Main panel and the Analyzer Only Panel, the upper Soft keys
change the display units of the reading directly below them.
The functions controlled by the Soft keys also may depend on other
factors, such as the measurement function currently selected. The
specific functions of the Soft keys are discussed in conjunction with
each panel and each measurement function.
FUNCTION Keys
The FUNCTION keys set the measurement function by controlling the
internal configuration of the instrument. Each FUNCTION key
corresponds to a particular measurement function, such as Amplitude,
THD+N, etc. A few of the FUNCTION keys will invoke a second
measurement function with a second press of the key.
The FUNCTION keys and measurement functions are discussed in
detail in the section on Controlling the Analyzer. See page 4-15.

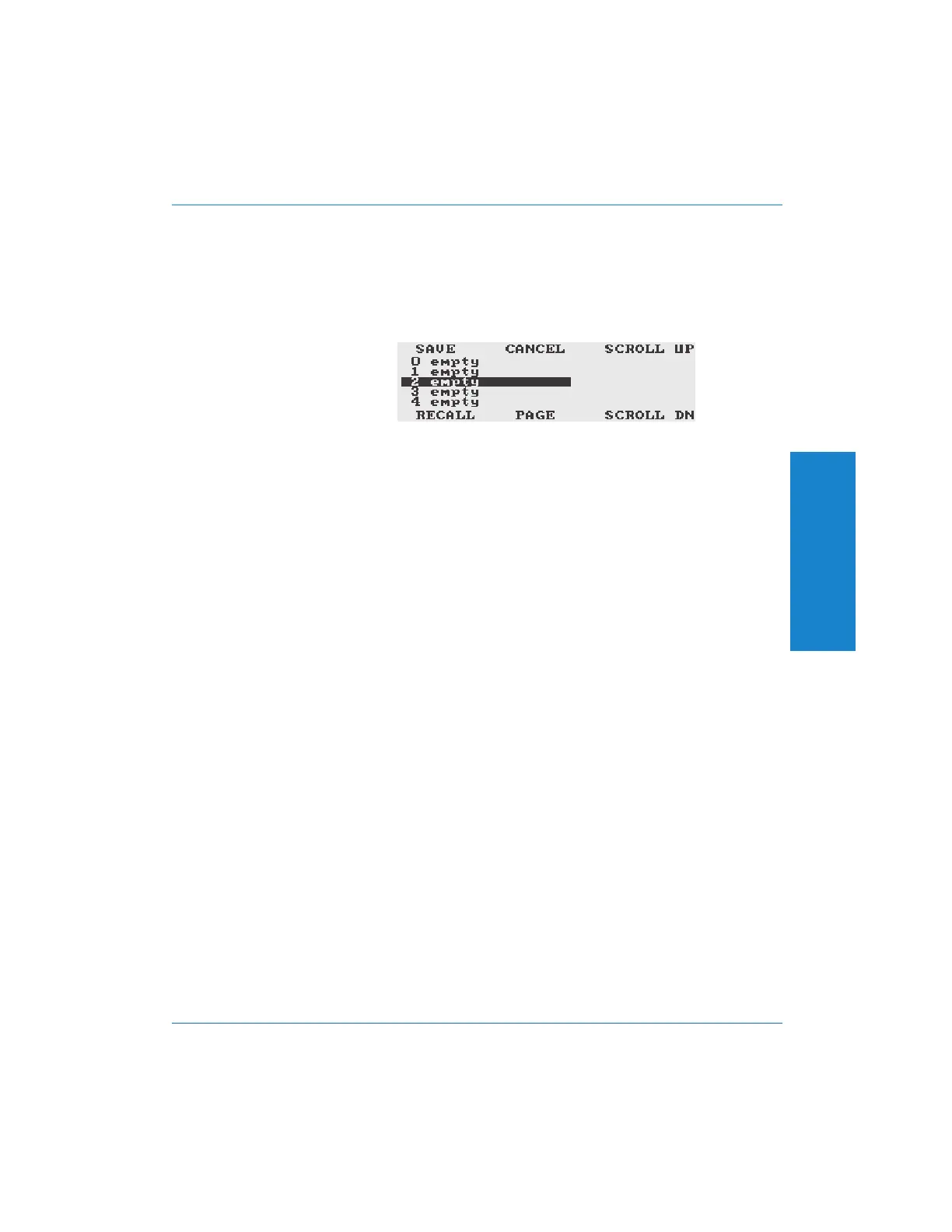

Figure 4-7. Recall/Save Panel
4
Operation
Overview : RECALL/SAVE Key Operation
Portable One Plus Access User's Manual 4-5
