Audio Technica 3000 Digital Series User Manual

12

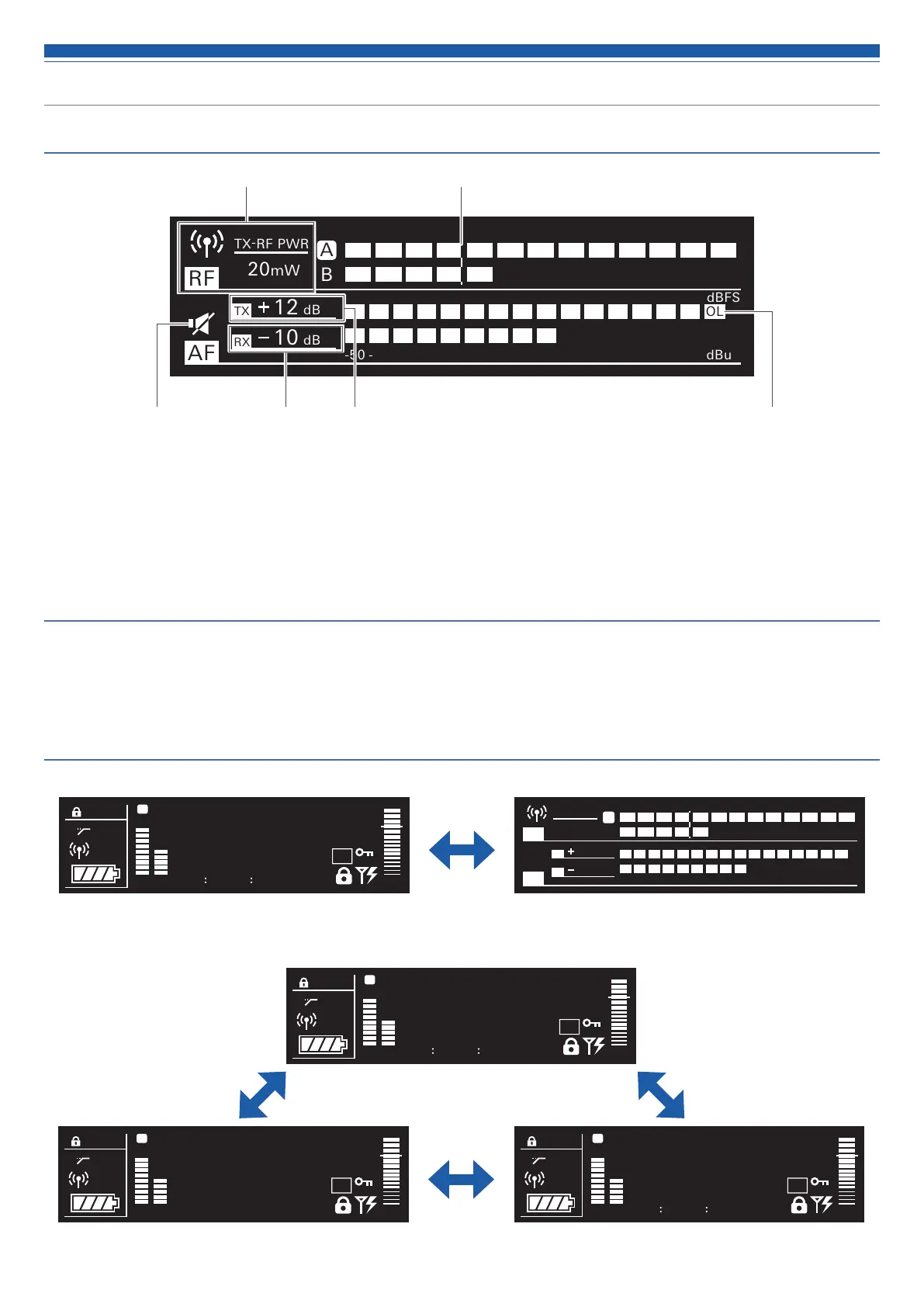

How to read the display
Level meter screen
B
RF
TX
AF
A
20
mW
TX
-
RF PWR
-92
-50 -42 -36 -30 -24 -18 -15 -12 -9 -6 -3 0 +3 +6 +9 dBu
-86 -80 -76 dBm
dBFS
RX
12 dB
10 dB
OL
-45 -27 -18 -9 0
Minimum hold function
If you press the BACK button on the level meter screen, the minimum hold function turns on and its marker is displayed.
• The marker indicates the lowest level of RF signal received from the transmitter.
• The marker does not move if the input RF level is higher than the marker position.
• If the RF level input is lower than the marker position, the marker moves in tandem with the RF level.
• To reset the marker position, press the BACK button again.
Switching between screens
The screen is switched every time function button 1 is pressed.
TX
HPF
B
RF AF
0
000.000
VOCAL1
MHz
A
20mW
Gr 06 Ch 12
HD
AE S
Main screen
B
RF
TX
AF
A
20
mW
TX
-
RF PWR
-92
-50 -42 -36 -30 -24 -18 -15 -12 -9 -6 -3 0 +3 +6 +9 dBu
-86 -80 -76 dBm
dBFS
RX
12 dB
10 dB
OL
-45 -27 -18 -9 0
Level meter screen
The main screen is switched every time function button 2 is pressed.
TX
HPF
B
RF AF
0
Gr:05 Ch:12
VOCAL1
A
20mW
000.000 MHz
HD
AE S
Main screen (group and channel display)
TX
HPF
B
RF AF
0
VOCAL1
000.000 MHz
A
20mW
Gr 06 Ch 12
HD
AE S
Main screen (channel name display)
TX
HPF
B
RF AF
0
000.000
VOCAL1
MHz
A
20mW
Gr 06 Ch 12
HD
AE S
Main screen (frequency display)
❶ RF transmission output indicator (transmitter)
❷ Marker (when the minimum hold function is on)
Fixed to the minimum RF level.
❸ Mute indicator
A speaker icon with a slash through it is displayed when the
receiver is muted.
❹ Audio output indicator (receiver)
❺ Gain indicator (transmitter)
❻ Overload (excessive input) indicator
❶
❷
❸ ❹ ❺ ❻
