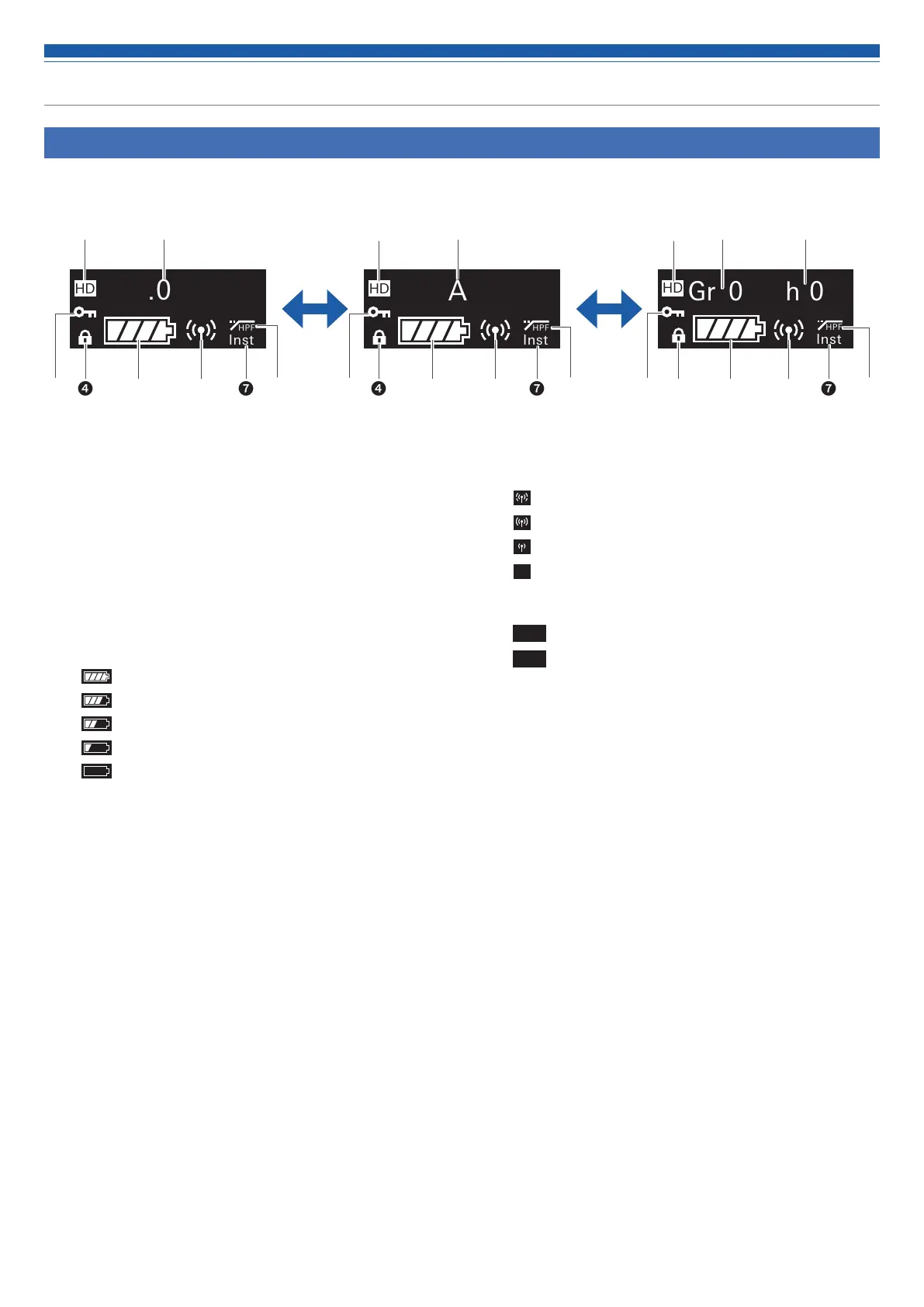

How to read the display
ATW-DT3101/ATW-DT3102
The main screen is displayed when the power is switched on. If you press the UP/DOWN button on the main screen, the screen display is switched.
Inst
HPF
000.000 MHz
HD
VOCAL1
Inst
HPF
HD
Gr 02 Ch 05
Inst
HPF
HD
❶ Frequency indicator
Displays the set frequency.
❷ HD mode indicator
❸ AES-256 encryption mode indicator
❹ Lock status indicator
❺ Battery level indicator
: 75% or more battery power remaining.
: 50 to 75% battery power remaining.
: 25 to 50% battery power remaining.
: 25% or less battery power remaining.
(Flicker): Replace the batteries.
❻ RF transmission output indicator
: RF Power High (20mW)
: RF Power Mid (10mW)
: RF Power Low (2mW)
RF
OFF
: RF Power Off
❼ Audioinputindicator
Inst
: When a guitar cable or something similar is connected
MIC
: When a microphone is connected
❽ High-pass filter indicator
❾ Name display
Displays the specified name.
❿ Group indicator
⓫ Channel indicator
❶
❹ ❺ ❻ ❼
❷
❸ ❽
❾
❹ ❺ ❻ ❼
❸ ❽
⓫
❹ ❺ ❻ ❼
❿
❸ ❽
❷❷
