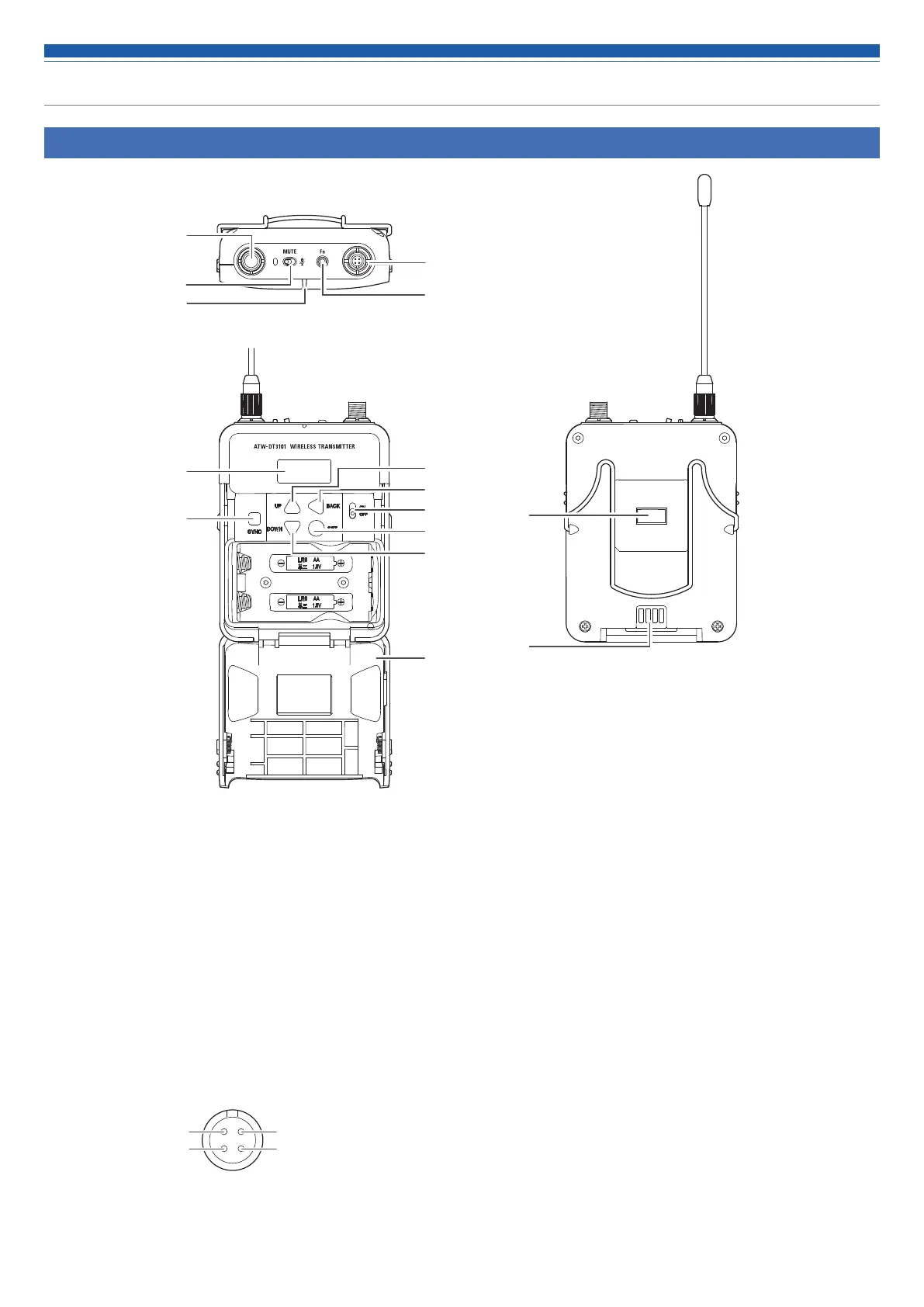

Part names and functions
ATW-DT3101
❶
❷
❸
❺
❹
❻
❼
❽
❾
❿
⓮
⓫
⓬
⓭
⓯
❶
Transmission antenna
❷ MUTE switch
Turns the mute function on/off.
❸ Indicator lamp
LED that shows the status of the transmitter.
When the power is turned on: Solid green
When the transmitter is muted: Solid red
❹ Function button
Press to turn the screen back on if it shuts off. Press and hold to
perform the preselected function.
❺ Input connector
Connect a microphone, a headworn microphone, a guitar cable, etc.
Pin 1: GND
Pin 4: +5V output
Pin 2: Instrument input
Pin 3: Microphone input
❻ Display
Shows the current status.
If no buttons are pressed for a period of 30 seconds, the display
will turn off.
❼ SYNC button
Use to IR SYNC with the receiver (ATW-DR3120, ATW-
DR3120DAN).
❽ UP button
Use to select various settings.
❾ BACK button
Press to take the display back one screen.
Press and hold to return to the main screen.
❿ Power switch
Use to turn the power on or off.
⓫ SET button
Press to display the settings menu. Press the UP/DOWN button to
select the setting item, and then press the SET button to confirm
the selection.
⓬ DOWN button
Use to select various settings.
⓭ Battery cover
⓮ IR SYNC window
Use to IR SYNC with the receiver.
⓯ Charging terminal
