28

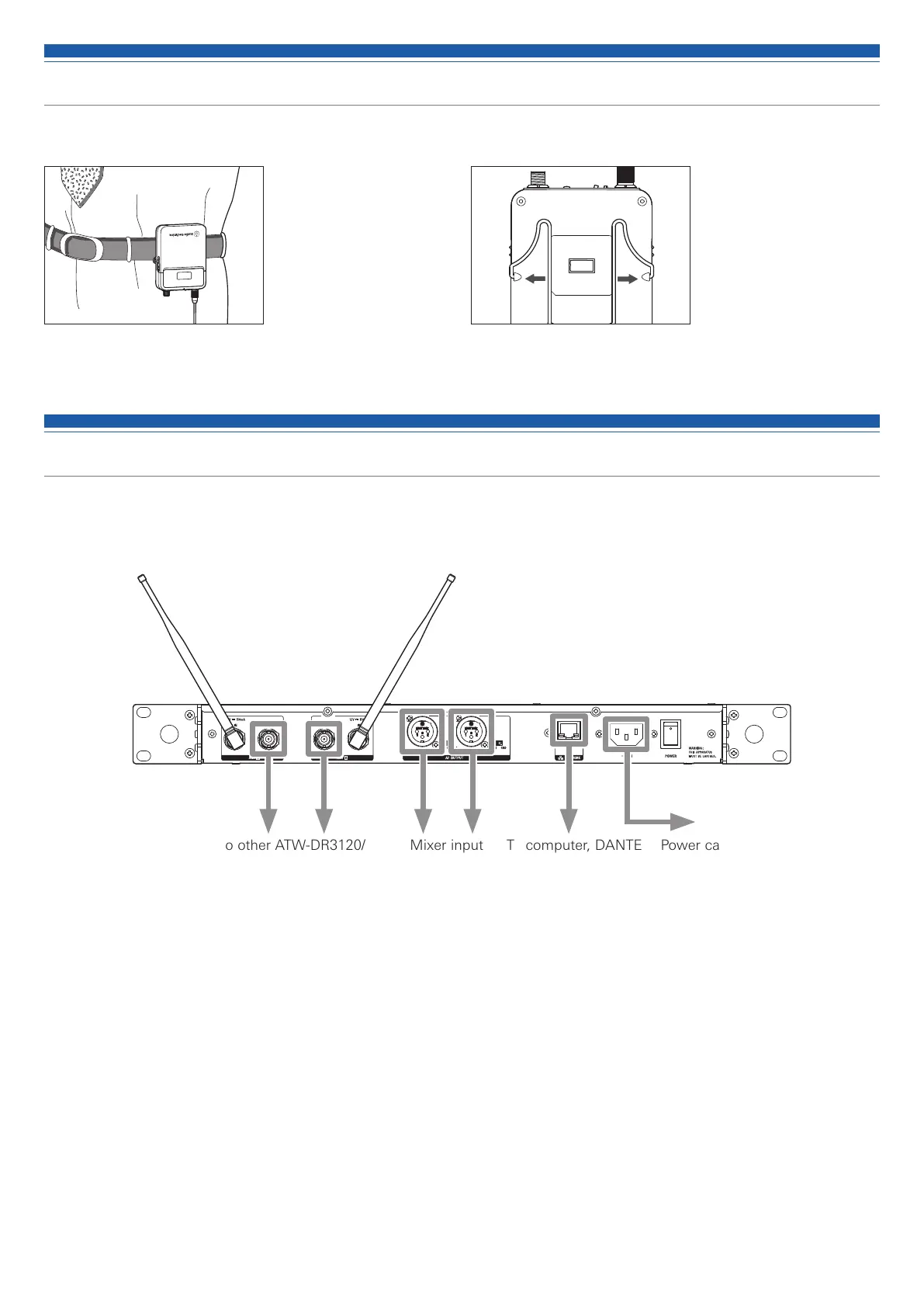

How to attach the transmitter (ATW-DT3101)
The ATW-DT3101 is equipped with a clip that can be used to attach the transmitter to a belt, etc.
You can reverse the direction of the input connector by
attaching the clip in the opposite direction.
Pull both sides of the clip firmly to the outside to remove
the clip from the transmitter.
Making connections (basic connections)
This is an example of connections made when using one receiver.
Whip antenna Whip antenna
Power cableMixer input
To other ATW-DR3120/
ATW-DR3120DAN (up
to 4 units can be linked)
To computer, DANTE
device, or network
switch
