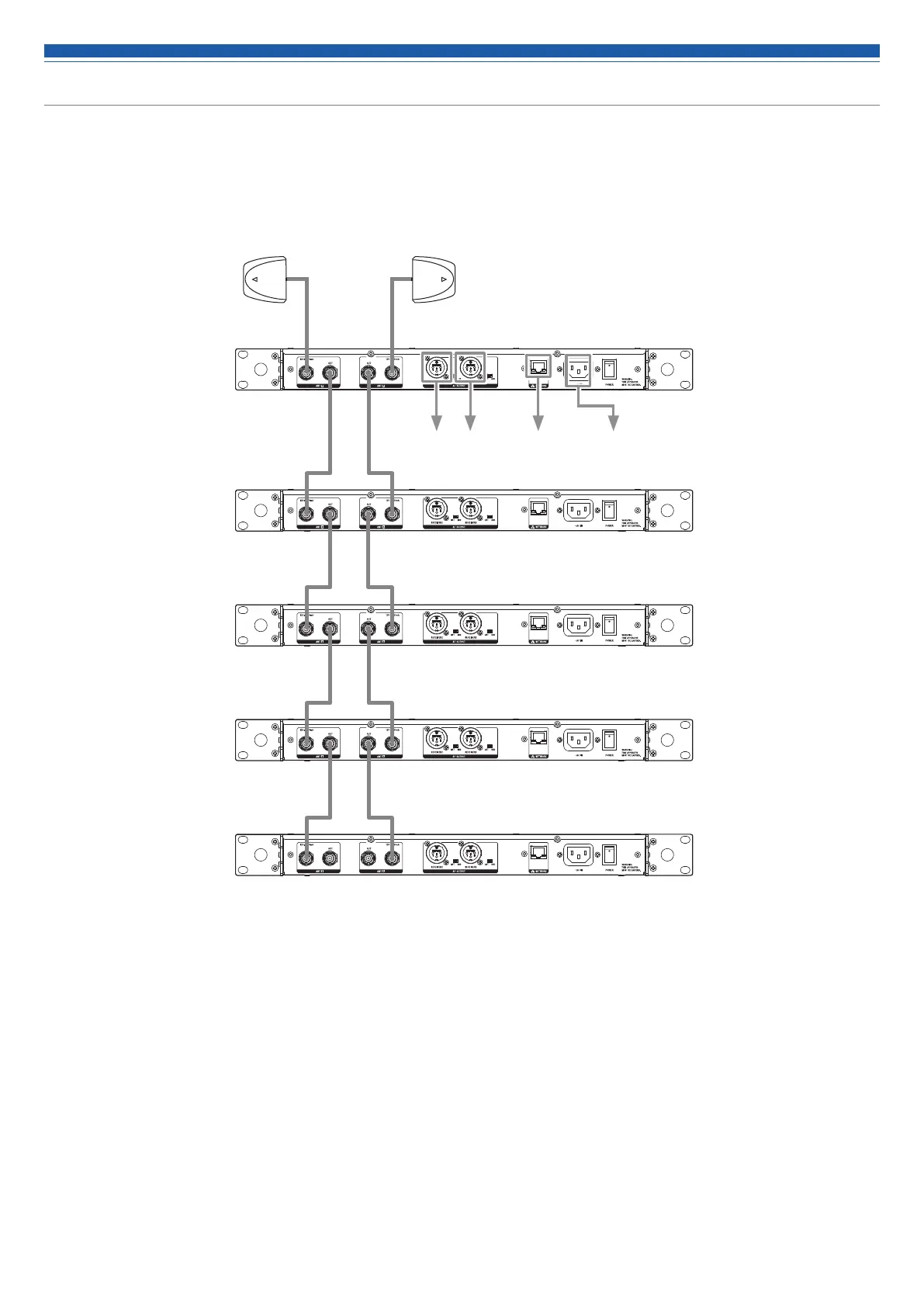

Making connections (cascade connections)

Using the antenna output jack makes it possible to connect an additional 4 receivers (for a total of 5) in a cascade connection without using an

antenna divider.

• When cascading receivers, connect either the included whip antennas or external antennas to the main receiver’s antenna input jacks, and then

cascade each receiver via BNC coaxial cables.

External antenna External antenna

Mixer input

Power cable

To computer,

DANTE device,

or network switch

Default Chapter2
- Table of Contents2
Introduction3
Important Information3
Notes on Use5
Maintenance5
Part Names and Functions6
- Atw-Dr3120/Atw-Dr3120Dan6
- Atw-Dt31018
- Atw-Dt31029
How to Insert Batteries10
- Atw-Dt310110
- Atw-Dt310210
How to Attach and Remove the Interchangeable Microphone Capsule (Only for the ATW-DT3102)11
- How to Attach11
- How to Remove11
How to Read the Display12
- Atw-Dr3120/Atw-Dr3120Dan12
- Atw-Dt3101/Atw-Dt310214
How to Operate15
- Basic Operation15
- Using IR SYNC15
Settings16
- Atw-Dr3120/Atw-Dr3120Dan16
- Atw-Dt3101/Atw-Dt310216
Setting the ATW-DR3120/ATW-DR3120DAN17
- List of Setting Items17
- Setting the Operating Frequency17
- Setting the Channel Name17
- Setting the Audio Output18
- Scanning for Open Channels18
- Setting Transmitters Via IR SYNC18
- Setting the Security-Related Functions19
- Setting the System-Related Functions19
- Setting the Network22
- Setting the DANTE23
Setting the ATW-DT3101/ATW-DT310224
- List of Setting Items24
- Setting the Transmission Frequency24
- Setting the Channel Name24
- Adjusting the Microphone Input Gain25
- Setting the Connection of the Input Connector (Only for the ATW-DT3101)25
- Selecting the Microphone Input Gain (Only for the ATW-DT3101)25
- Setting the RF Transmission Output25
- Setting the HPF (High-Pass Filter)25
- Setting the Lock25
- Setting the Function for the Function Button26
- Setting Mute Mode (Only for the ATW-DT3101)26
- Setting the Security-Related Functions26
- Setting the System-Related Functions26
How to Attach the Transmitter (ATW-DT3101)29
Making Connections (Basic Connections)29
Making Connections (Cascade Connections)30
Achieving Stable Reception31
Rack-Mounting the Receiver31
Troubleshooting32
- Atw-Dr3120/Atw-Dr3120Dan32
- Atw-Dt3101/Atw-Dt310232
Dimensions33
- Atw-Dr3120/Atw-Dr3120Dan33
- Atw-Dt310134
- Atw-Dt310234
Specifications35
- Overall System Specifications35
- Atw-Dr3120/Atw-Dr3120Dan35
- Atw-Dt310135
- Atw-Dt310236
