Audio Technica 3000 Digital Series User Manual

8

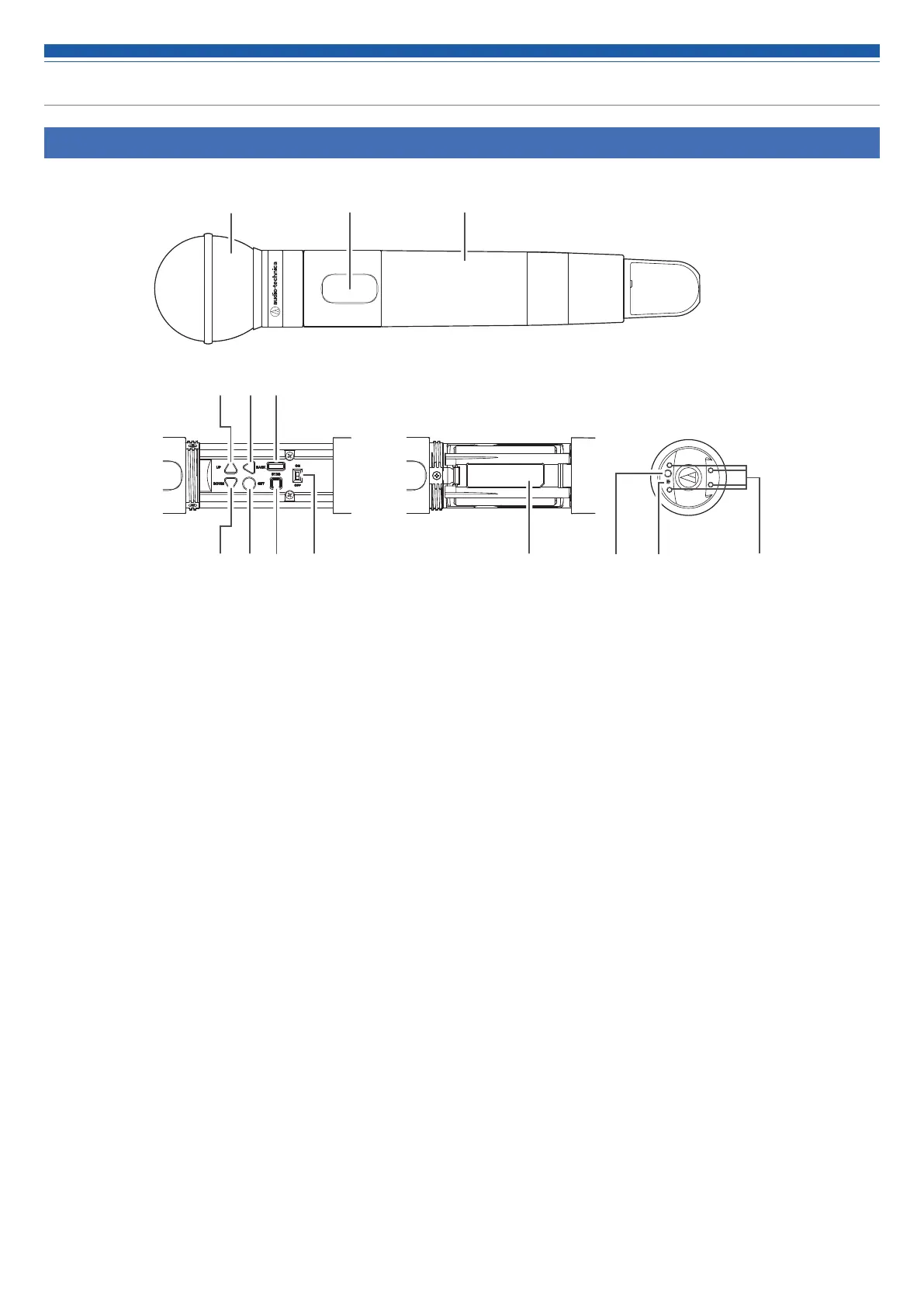

Part names and functions
ATW-DT3102
❸❷❶
❹ ❺ ❻
❼ ❽ ❾ ❿ ⓫ ⓬ ⓭
⓮
❶ Interchangeable microphone capsule (sold separately)
❷ Display
Shows the current status.
If no buttons are pressed for a period of 30 seconds, the display
will turn off.
❸ Grip case
❹ UP button
Use to select various settings.
❺ BACK button
Press to take the display back one screen.
Press and hold to return to the main screen.
❻ IR SYNC window
Use to IR SYNC with the receiver.
❼ DOWN button
Use to select various settings.
❽ SET button
Press to display the settings menu. Press the UP/DOWN button to
select the setting item, and then press the SET button to confirm
the selection.
❾ SYNC button
Use to IR SYNC with the receiver (ATW-DR3120, ATW-
DR3120DAN).
❿ Power switch
Use to turn the power on or off.
⓫ Battery cover
⓬ Function button
Press to turn the screen back on if it shuts off. Press and hold to
perform the preselected function.
⓭ Indicator lamp
LED that shows the status of the power supply/batteries.
When the power is turned on: Solid green
When the transmitter is muted: Solid red
⓮ Charging terminal
