Adjusting the overhang
The position of the cartridge must be accurately determined (adjusting the overhang) when mounting a cartridge or
headshell other than the one provided.
1
Mount the cartridge so it is parallel to the headshell.

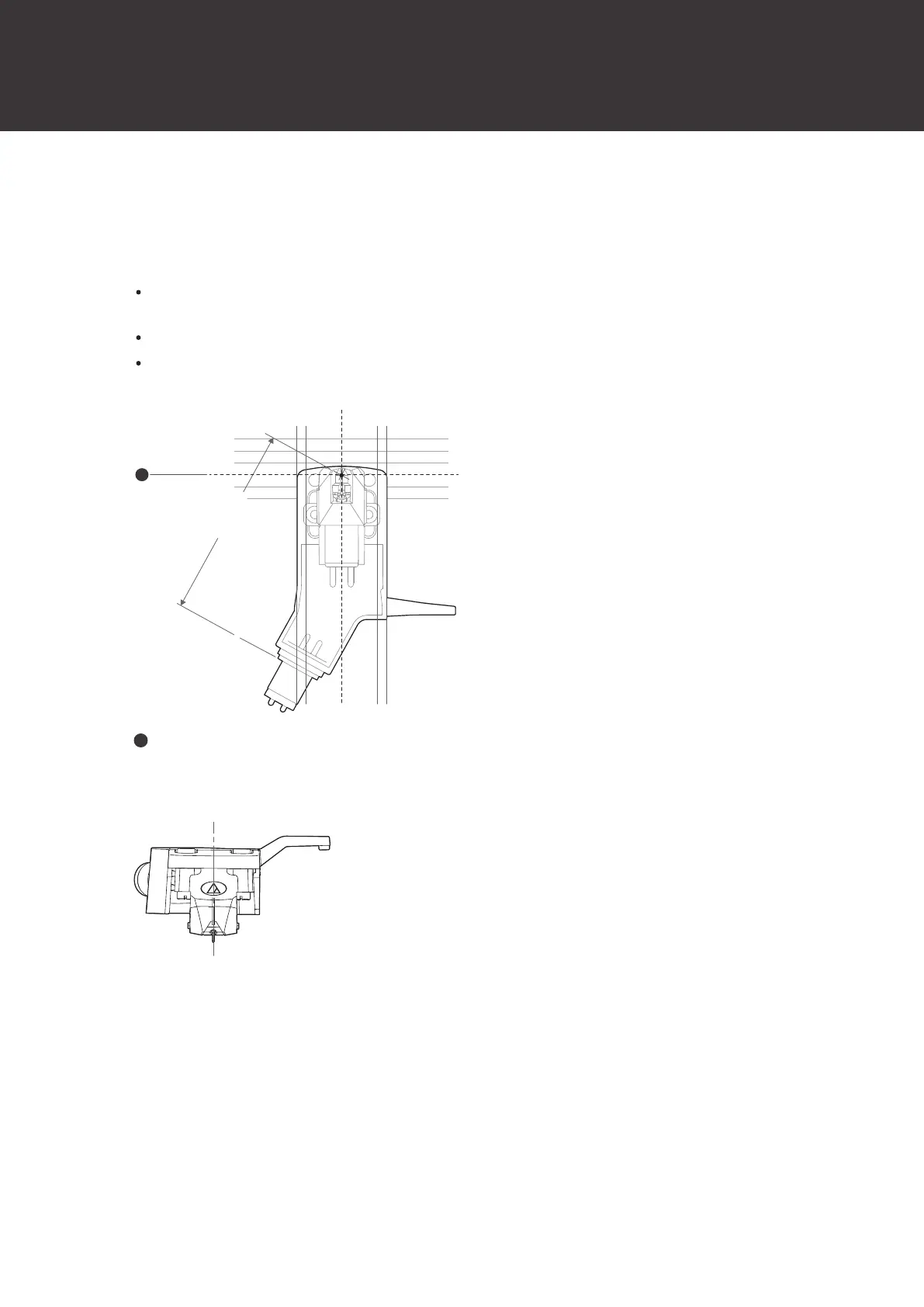

Match up the positions of the cartridge and headshell to the overhang adjustment guide on the figure and
mount the cartridge so it is parallel to the headshell.
This illustration represents the actual size.
Place the headshell on the figure, and then adjust the stylus tip of the new cartridge along the lines for the
“Stylus tip” of the cartridge.
45 mm
1
1
Stylus tip
2
Mount the cartridge so it is vertical to the headshell.

Audio Technica AT-LP3XBT Specifications

General

Type	Belt-drive audio turntable
Operation	Fully automatic
Motor type	DC motor
Product color	White
Wow & flutter	0.2 %
Nominal speeds	33 1/3, 45 RPM
Platter material	Aluminum
Signal-to-Noise Ratio (SNR)	60 dB
Frequency range	2402 - 2480 Hz
Power supply type	AC
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
Power consumption (typical)	2 W
Quantity	1
Cables included	RCA
Dust cover included	Yes
Bluetooth version	5.2
Bluetooth profiles	A2DP
USB ports quantity	-

Weight and Dimensions

Depth	374 mm
Width	435.6 mm
Height	128 mm
Weight	5000 g
