Audio Technica AT-LP3XBT User Manual

Part names and functions
8

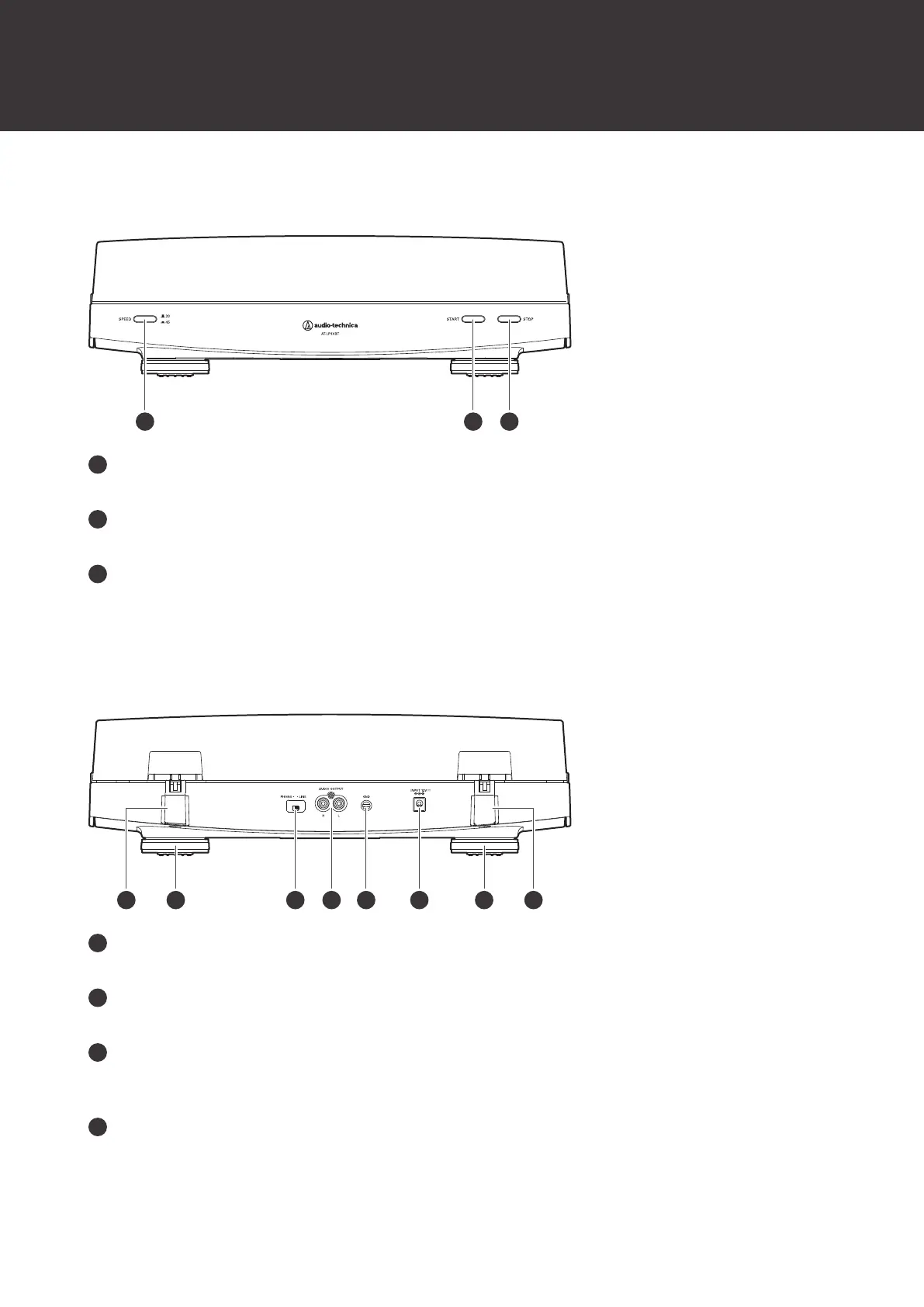

Front view
1 2 3
1
Platter speed button
Selects the platter speed (33-1/3 or 45 RPM).
2
START button
Spins the platter and moves the tonearm.
3
STOP button
Returns the tonearm to its original position and stops the platter.
Rear view
1 12 23 4 5 6
1
Dust cover hinge holders
Attachment points for dust cover hinges.
2
Feet
Adjust the level of the product.
3
Pre-amplifier selector switch
If connecting to an amplifier’s PHONO input jack, set this switch to the PHONO position. If connecting to the AUX
jack of an amplifier, set this switch to the LINE position.
4
Stereo output terminals
Connect the RCA audio cable. Connect it to either the amplifier’s PHONO input jack or its line input jack. The red
terminal is the right channel and the white terminal is the left channel.

Audio Technica AT-LP3XBT Specifications

General

Type	Belt-drive audio turntable
Operation	Fully automatic
Motor type	DC motor
Product color	White
Wow & flutter	0.2 %
Nominal speeds	33 1/3, 45 RPM
Platter material	Aluminum
Signal-to-Noise Ratio (SNR)	60 dB
Frequency range	2402 - 2480 Hz
Power supply type	AC
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
Power consumption (typical)	2 W
Quantity	1
Cables included	RCA
Dust cover included	Yes
Bluetooth version	5.2
Bluetooth profiles	A2DP
USB ports quantity	-

Weight and Dimensions

Depth	374 mm
Width	435.6 mm
Height	128 mm
Weight	5000 g
