Fast Track Installation Guide 2. Installing the Mediant 2000
Version 4.6 15 July 2005
¾ When using a DC terminal block crimp connector, take these 3 steps:
1. Remove the DC adaptor (screw connection type) that is attached to the Mediant 2000 rear
panel.
2. Connect the two insulated wires to the correct DC power supply. Ensure that the connections
to the DC power supply maintain the correct polarity (refer to Figure
2-10).
3. Insert the terminal block to the DC inlet located on the Mediant 2000.

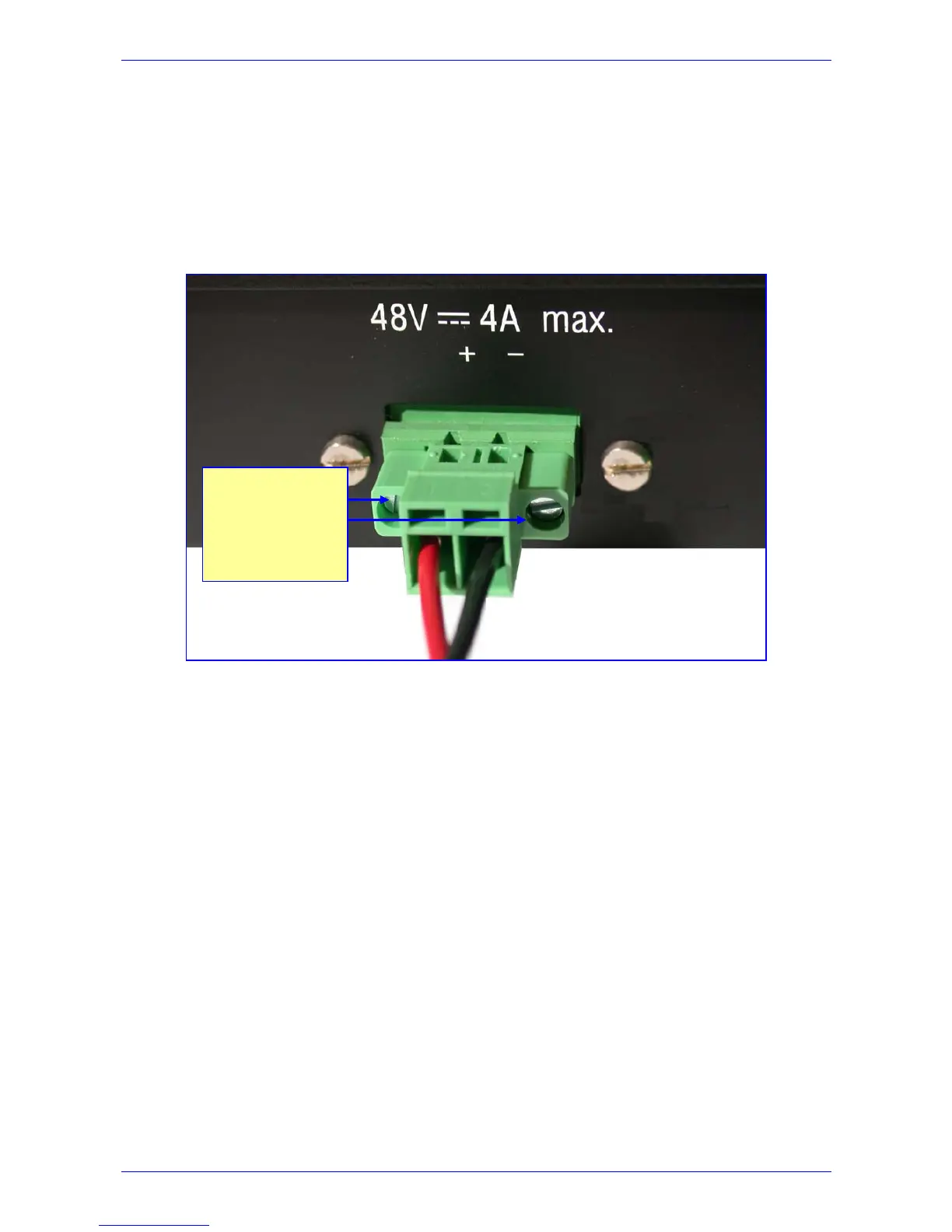

Figure
2-10: DC Terminal Block Crimp Connector
2 screws for
connecting the
crimp terminal
block to the
Mediant 2000
rear panel
