Fast Track Installation Guide 3. Configuring the Mediant 2000
Version 4.6 25 July 2005
3.4.3 Configuring Basic SIP Parameters
After accessing the Embedded Web Server (refer to Section 3.3 on page 19) the SIP ‘Quick
Setup’ screen is displayed, shown in Figure
3-5.

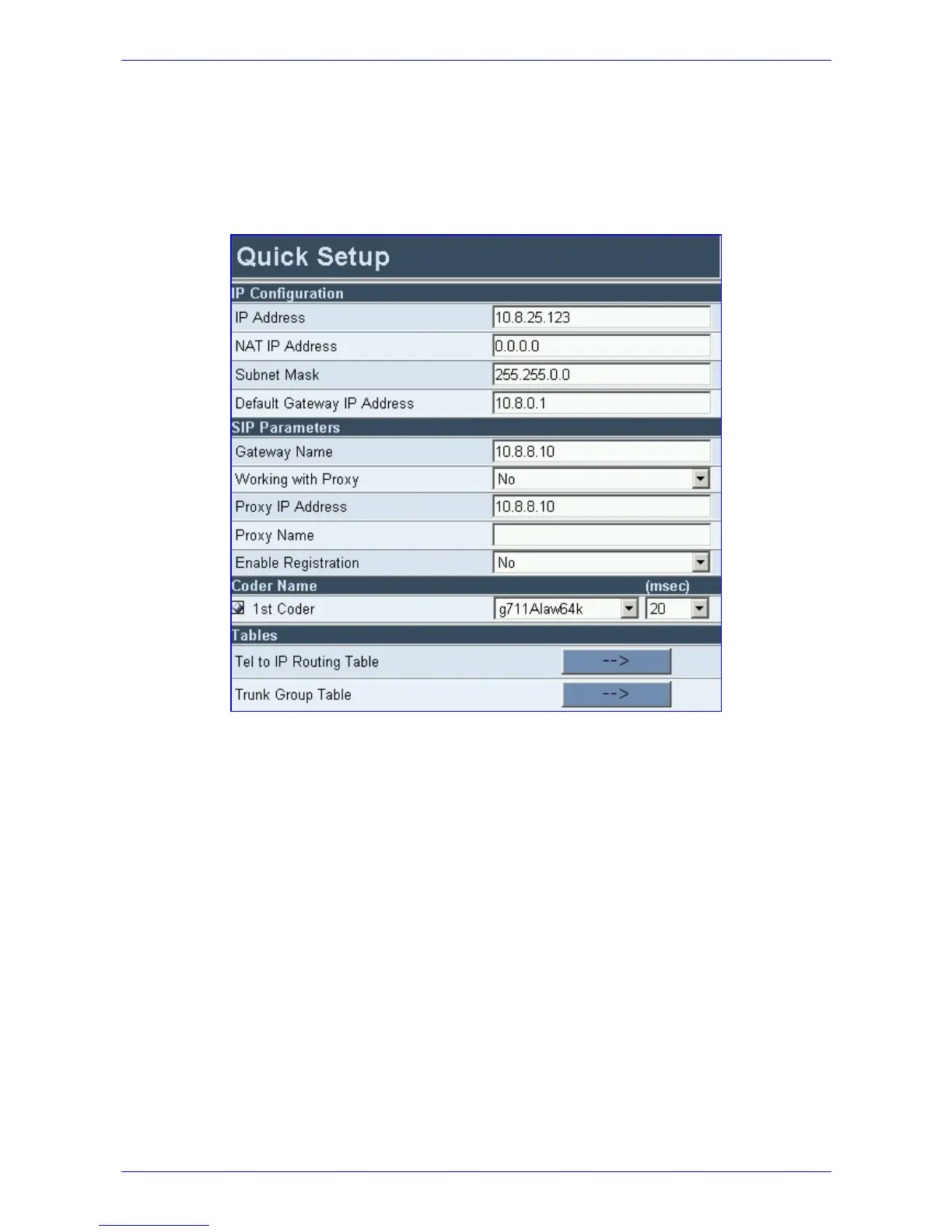

Figure
3-5: Mediant 2000/SIP Quick Setup
¾ To configure basic SIP parameters, take these 10 steps:
1. If the Mediant 2000 is connected to a router with NAT enabled, perform the following
procedure. If it isn’t, leave the ‘NAT IP Address’ field undefined.
¾ Determine the “public” IP address assigned to the router (by using, for instance, router
Web management). Enter this public IP address in the ‘NAT IP Address’ field.
¾ Enable the DMZ configuration on the residential router for the LAN port where the
Mediant 2000 gateway is connected. This enables unknown packets to be routed to the
DMZ port.
2. Under ‘SIP Parameters’, enter the Mediant 2000 domain name in the field ‘Gateway Name’.
If the field is not specified, the Mediant 2000 IP address is used instead (default).
3. When working with a Proxy server, set ‘Working with Proxy’ field to ‘Yes’ and enter the IP
address of the primary Proxy server in the field ‘Proxy IP address’. When no Proxy is used,
the internal routing table is used to route the calls.
4. Enter the Proxy name in the field ‘Proxy Name’. If Proxy name is used, it replaces the Proxy
IP address in all SIP messages. This means that messages are still sent to the physical
Proxy IP address but the SIP URI contains the Proxy name instead.
