Fast Track Installation Guide 2. Installing the Mediant 2000
Version 4.6 7 July 2005
2 Installing the Mediant 2000

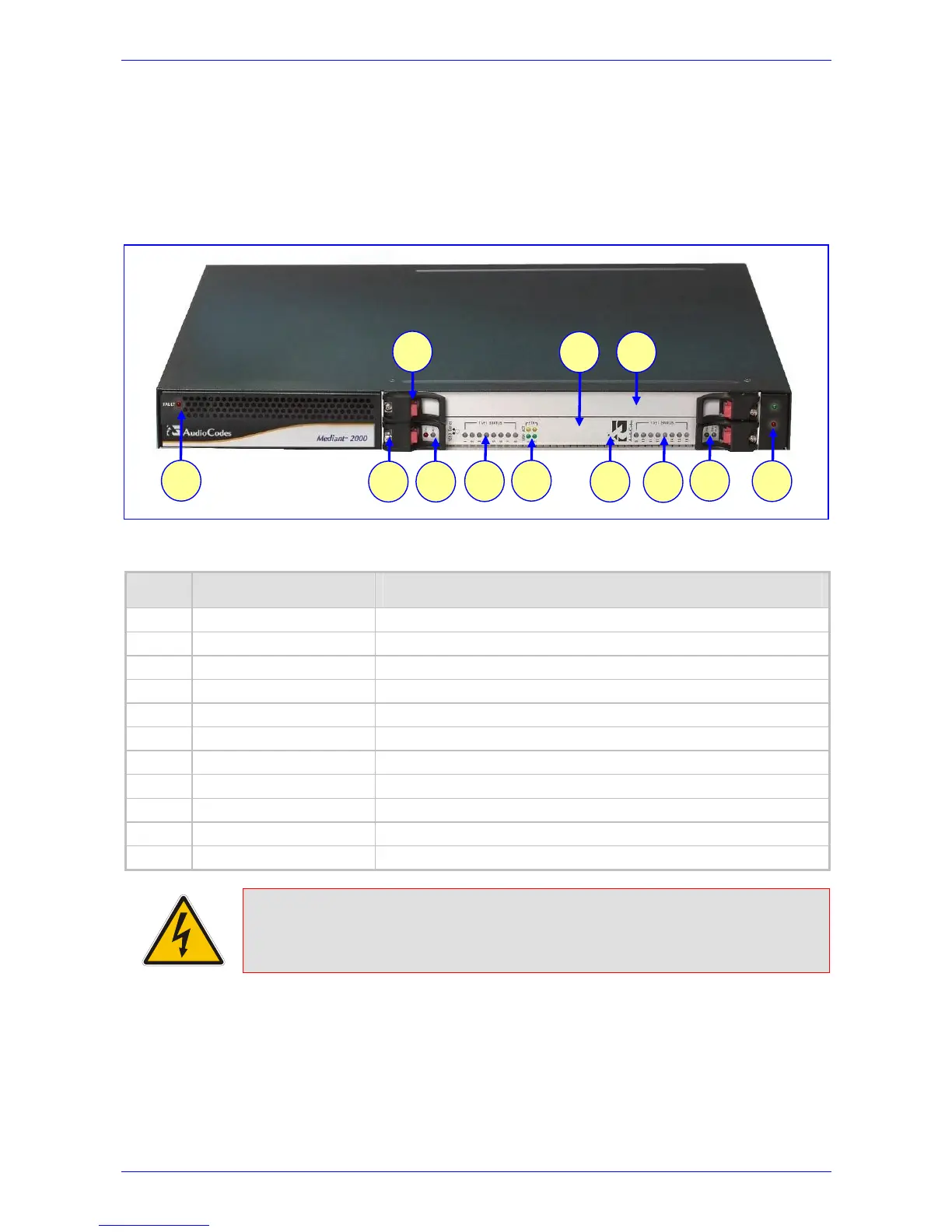

Figure 2-1 shows the front view of the Mediant 2000 media gateway. For information on the
Mediant 2000 LEDs refer to Section
6.1 on page 32.
Figure
2-1: Mediant 2000 Front View
Table
2-1: Mediant 2000 Front View Component Descriptions
Item # Label Component Description
1 FAULT
Dual AC Power LED.
2
cPCI board locking screws.
3
cPCI latches.
4
TP-1610 cPCI board, 16-trunk configuration.
5
Status LED Indicators.
6 T1/E1 STATUS
E1/T1 Trunk Status LED Indicators.
7 ETH
Ethernet LED Indicators.
8
Reset button.
9
cPCI LED Indicators.
10
Power and Fan LEDs
11
An available cPCI slot for an optional third-party CPU board.
Caution Electrical Shock
The equipment must only be installed or serviced by qualified service personnel.
1 7
2
3
6
5
4
8
6
9
10
11
