Installation Manual 44 Document #: LTRT-83506
Mediant 1000
2. Configure routing rules for telephone calls (i.e., Tel or inbound IP) to an IP destination
(i.e., IP address):
a. Open the ‘Outbound IP Routing’ page (Configuration tab > Protocol
Configuration menu > Routing Tables submenu > Tel to IP Routing).

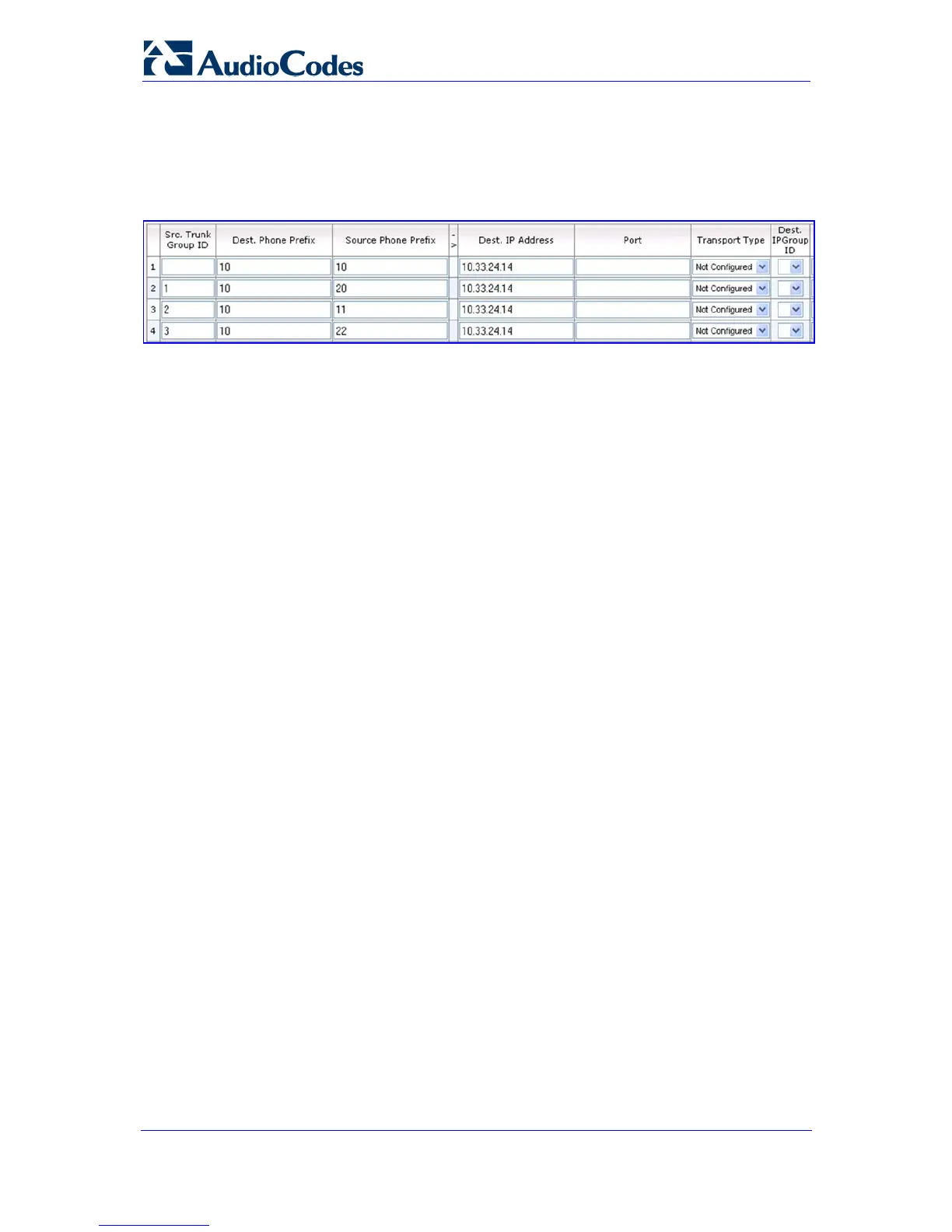

Figure 3-4: Routing Tel Calls to an IP Address
b. In the 'Src. Trunk Group ID' column, enter the Trunk Group number as defined in
Step 1.
c. In the 'Dest. Phone Prefix' column, enter "10" (i.e., prefix of dialed number).
d. In the 'Source Phone Prefix' column, enter the prefix of the channel's telephone
number as defined in Step 1.
e. In the 'Dest. IP Address' column, enter 10.33.24.14 (i.e., calls are sent to this IP
address).
f. Click Submit.
Therefore, any call whose dialed number prefix matches the value in the 'Dest. Phone
Prefix’ column (i.e., 10) and whose source phone number prefix matches the value in
the ‘Source Phone Prefix‘ column is sent to the IP address defined in the ‘Dest. IP
Address’ column.
