Version 6.0 71 February 2010
Installation Manual 5. Open Solution Network (OSN) Server Platform
5.2.3 Installing Linux
Once you have cable the device as described in the previous section, you can install the
Linux OS.
¾ To install Linux on the OSN server:
1. Start a terminal application (e.g. HyperTerminal) on your PC, and create a new
connection with the following settings:
• Connect Port: COM1
• Baudrate: 115200 (bits per second)
• Data Bits: 8
• Parity: None
• Stop Bits: 1
• Flow Control: None
2. Power up the device.
3. Enable console installation from the system BIOS, by performing the following:
a. When the system starts, press the CTRL+C key; after several seconds, the
following BIOS setup window is displayed:

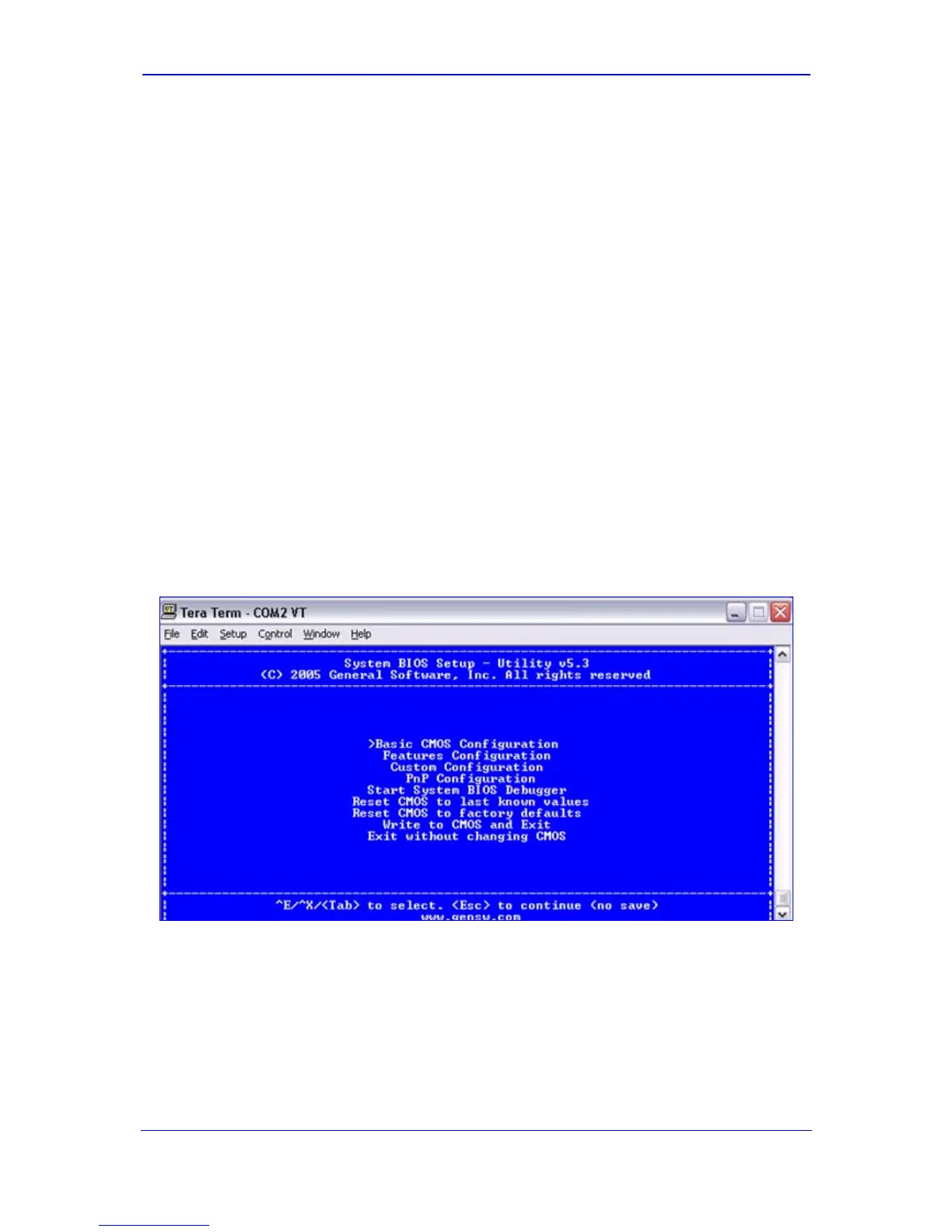

Figure 5-13: System BIOS Setup Window
b. Select the Features Configuration option.
To Next Page
