Installation Manual 54 Document #: LTRT-83506
Mediant 1000
7. You can now choose to either:
• Click Reset; the device resets, utilizing the new cmp and ini file you loaded up to
now as well as utilizing the other auxiliary files.
• Click Back; the 'Load a cmp file' page is opened again.
• Click Next; the next page opens for loading the next consecutive auxiliary file
listed in the Wizard.
8. For loading the auxiliary files, follow the same procedure as for loading the ini file
(Step 6).
9. In the 'FINISH' page, complete the upgrade process by clicking Reset; the device
'burns' the newly loaded files to flash memory and then resets the device. After the
device resets, the 'End Process' screen appears displaying the burned configuration
files (refer to the figure below).

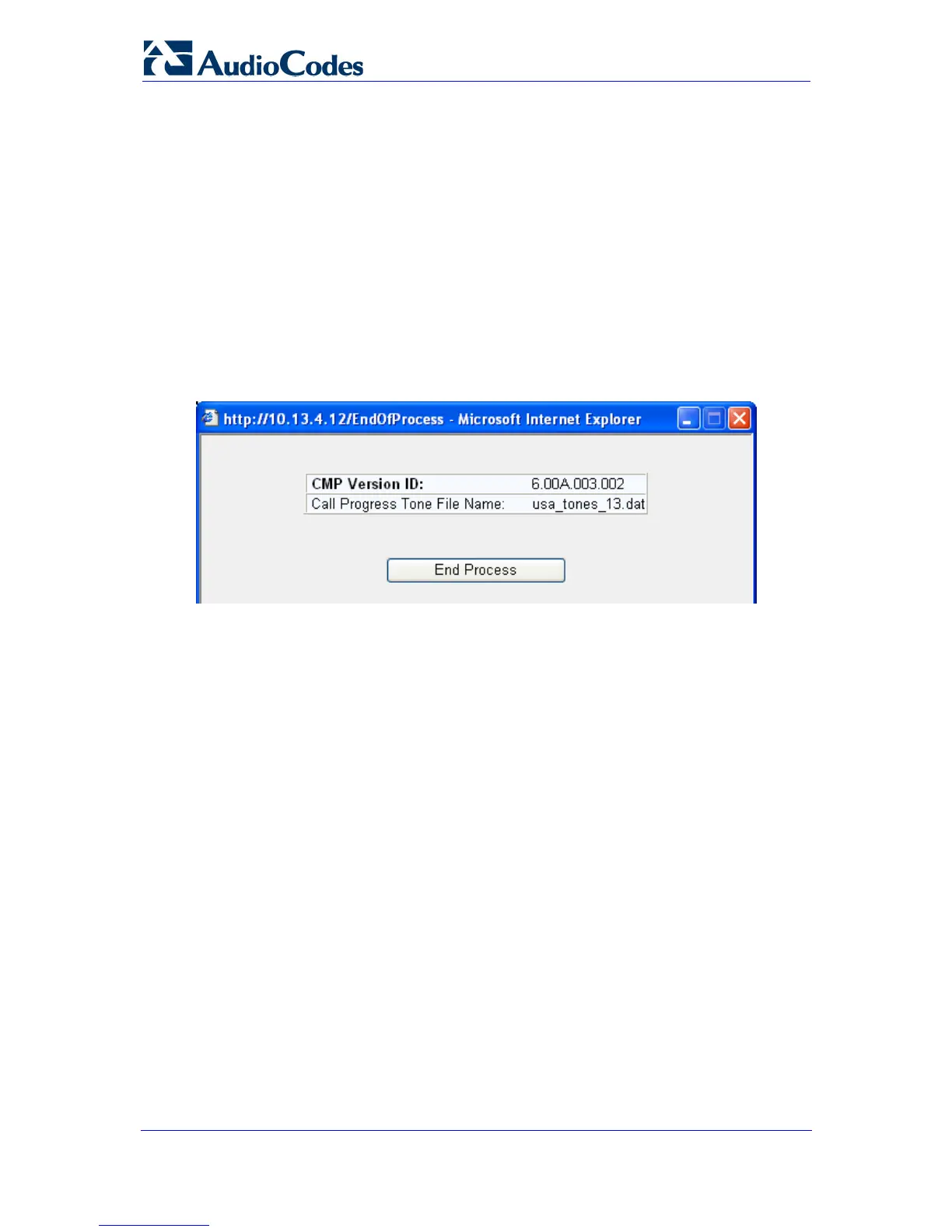

Figure 3-11: End Process Wizard Page
10. Click End Process to close the wizard, and then in the 'Enter Network Password'
dialog box, enter your login user name and password (described in Accessing the Web
Interface) and click OK; a message box appears informing you of the new CMP file.
11. Click OK; the Web interface now becomes active and reflecting the upgraded device.
