Installation Manual 60 Document #: LTRT-83506
Mediant 1000
4.2.2 Viewing Channel Status
The 'Home' page displays channel port icons that indicate the voice channels' operating
status. You can use these port icons to drill down to view detailed channel status. For a
detailed description of the 'Home' page, refer to the device's User's Manual.

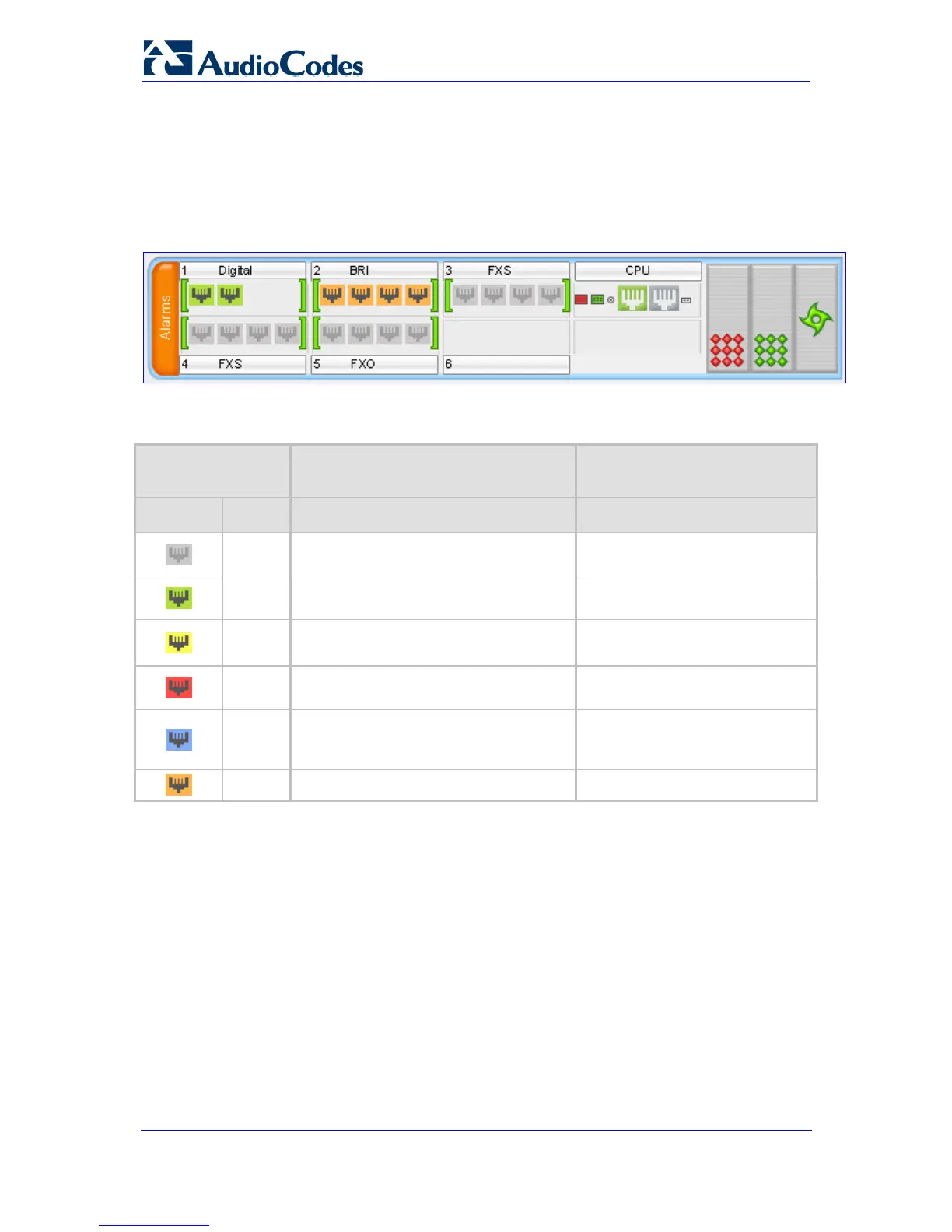

Figure 4-3: Mediant 1000 Web Interface’s Home Page
Table 4-6: Color-Coding of Trunk / Channel Status Icon
Trunk / Channel
Status Icon
Trunk
(Digital Module)
Channel
(Analog Module)
Icon State Color Description Description
Grey Disable: Trunk not configured (not in
use)
Inactive: Channel is currently on-
hook
Green Active - OK: Trunk synchronized Call Connected: Active RTP
stream
Yellow RAI Alarm: Remote Alarm Indication
(RAI), also known as the Yellow Alarm
-
Red LOS / LOF Alarm: Loss due to LOS
(Loss of Signal) or LOF (Loss of Frame)
Not Connected: No analog line is
connected to this port (FXO only)
Blue AIS Alarm: Alarm Indication Signal (AIS),
also known as the Blue Alarm
Handset Offhook: Channel is off-
hook, but there is no active RTP
session
Orange D-Channel Alarm: D-channel alarm -
You can drill-down to view a detailed status of each channel or trunk.
¾ To view a detailed status of a channel or trunk:
1. In the 'Home' page, click the port of whose status you want to view; a shortcut menu
appears.
2. From the shortcut menu, choose Port Settings.
