USER'S MANUAL
bit One HD /

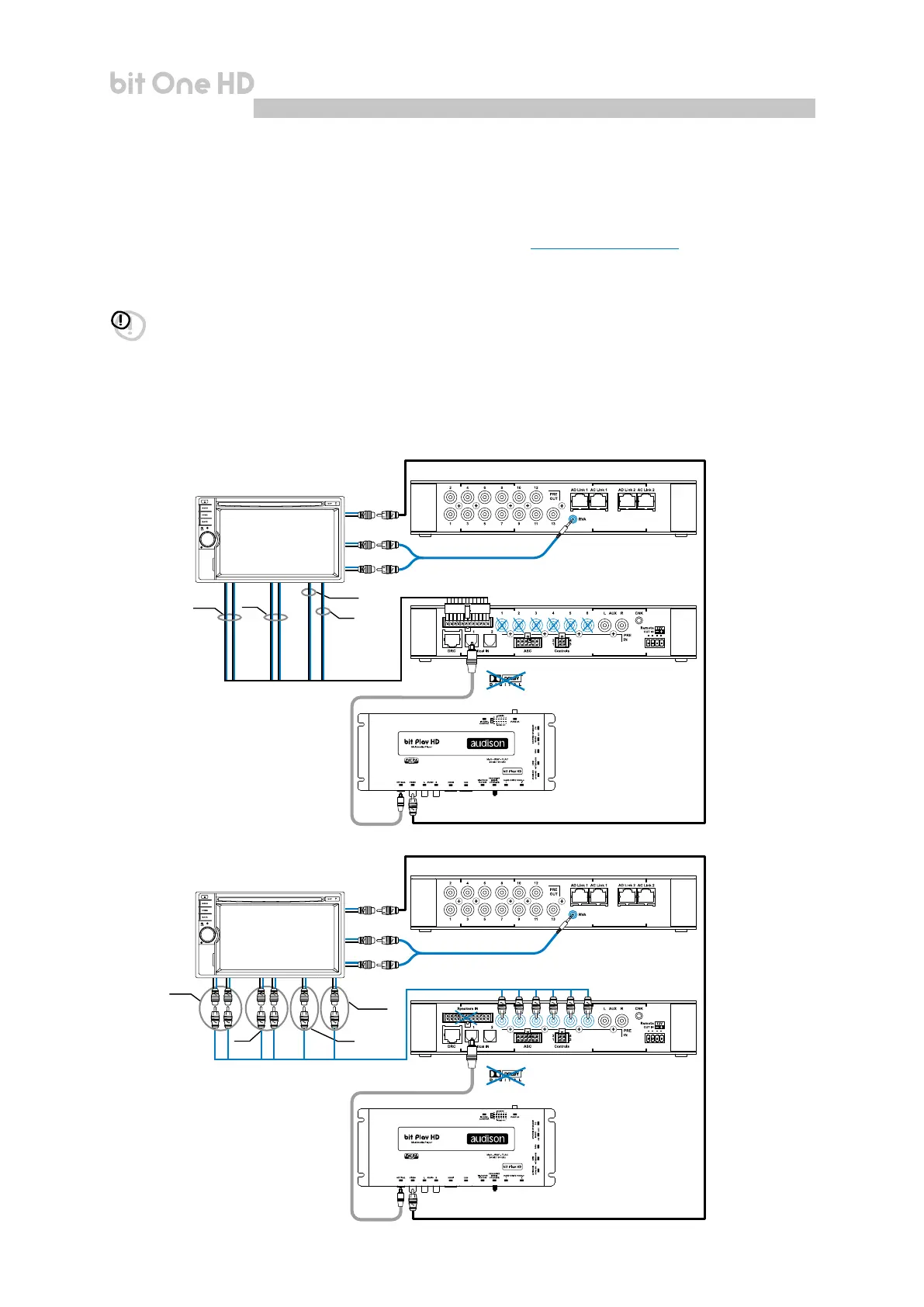

5.6.1. “AUTO INPUT SWITCH” OPTICAL 1 / OPTICAL 2 SIGNALS.
Activate the ”AUTO INPUT SWITCH” function on the OPTICAL 1 or OPTICAL 2 input via PC software to enable the
bit One HD OPTICAL 1 or OPTICAL 2 input, each time the source AUX input is activated. When using this function
the bit One HD volume can be controlled through the source volume (see section 7.3.8 - 7.4.8; 8.3.5).
Connect the bit One HD OPTICAL 1 or OPTICAL 2 input to the audio source and the processor’s RVA input to the
Master source AUX input (Head Unit).
WARNING: the “Auto Input Switch” function activation, and the subsequent selection of the auxiliary input to be used,
may cause the loss of the other two auxiliary inputs not selected.
Remark: when activating the “Auto Input Switch” function, the DRC/PC Software can no longer be used for the switch of
the audio system inputs.
The switch can be enabled through the audio system source, selecting the AUX or Master input.
When the “AIS - Auto Input Switch” function is active and a bit Play HD is connected to the system along with
Full DA ampliers (AD LINK - AC LINK) the DRC MP will be disabled and will display the following: “DRC DISABLED”.
5
CENTER
REAR
FRONT
SUB
OEM HEAD UNIT
AFTER MARKET HEAD UNIT
AUX IN
AUX IN
TO AUX IN HEAD UNIT
TO AUX IN HEAD UNIT
75 Ohm Video Cable
75 Ohm Video Cable
TOSLINK
Connector
TOSLINK
Connector
bit One HD Front panel
bit One HD Front panel
bit One HD Rear panel
bit One HD Rear panel
Left
Left
Video
IN
Video
IN
Right
Right
SUB
REAR
FRONT
CENTER
HI LEVELS
OUTPUT
SD
SD
