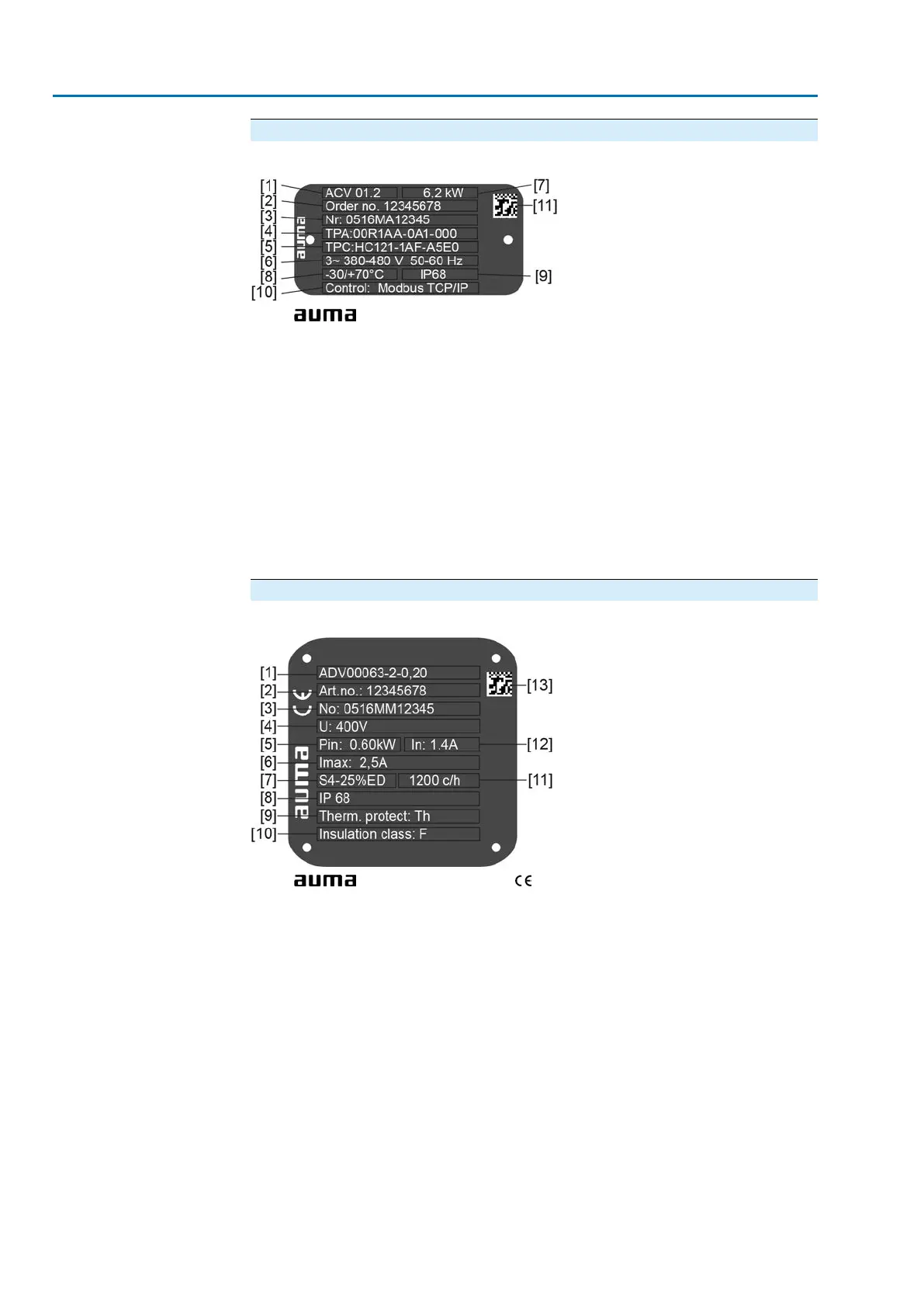

Actuator controls name plate

Figure 3: Name plate for actuator controls (example)

(= manufacturer logo)

[1] Type designation

[2] Order number

[3] Serial number

[4] Actuator terminal plan

[5] Actuator controls terminal plan

[6] Mains/voltage range/frequency range

[7] Rated power of the ACV

[8] Permissible ambient temperature

[9] Enclosure protection

[10] Control

[11] Data Matrix code

Motor name plate

Figure 4: Motor name plate (example)

(= manufacturer logo); (= CE mark)

[1] Motor type

[2] Motor article number

[3] Serial number

[4] Rated voltage

[5] Consumed rated power

[6] Maximum current

[7] Type of duty

[8] Enclosure protection

[9] Motor protection (temperature protection)

[10] Insulation class

[11] Perm. number of starts (for SARV)

[12] Rated current

[13] Data Matrix code

SAV 07.2 – SAV 16.2 / SARV 07.2 – SARV 16.2 Control unit: electronic (MWG)

Identification ACV 01.2 Modbus TCP/IP
