3. Transport, storage and packaging
3.1. Transport
For transport to place of installation, use sturdy packaging.
Hovering load!
Death or serious injury.
→
Do NOT stand below hovering load.
→
Attach lifting accessories for the purpose of lifting by hoist only to housing and
NOT to handwheel.
→
Actuators mounted on valves: Attach ropes or hooks for the purpose of lifting
by hoist to valve and NOT to actuator.
→
Actuators mounted to gearboxes: Attach ropes or hooks for the purpose of lifting
by hoist only to the gearbox using eyebolts and NOT to the actuator.
→
Actuators mounted to actuator controls: Attach ropes or hooks for the purpose
of lifting by hoist only to the actuator and NOT to the controls.
→
Respect total weight of combination (actuator, actuator controls, gearbox, valve)
→
Secure load against falling down, sliding or tilting.
→
Perform lift trial at low height to eliminate any potential danger e.g. by tilting.

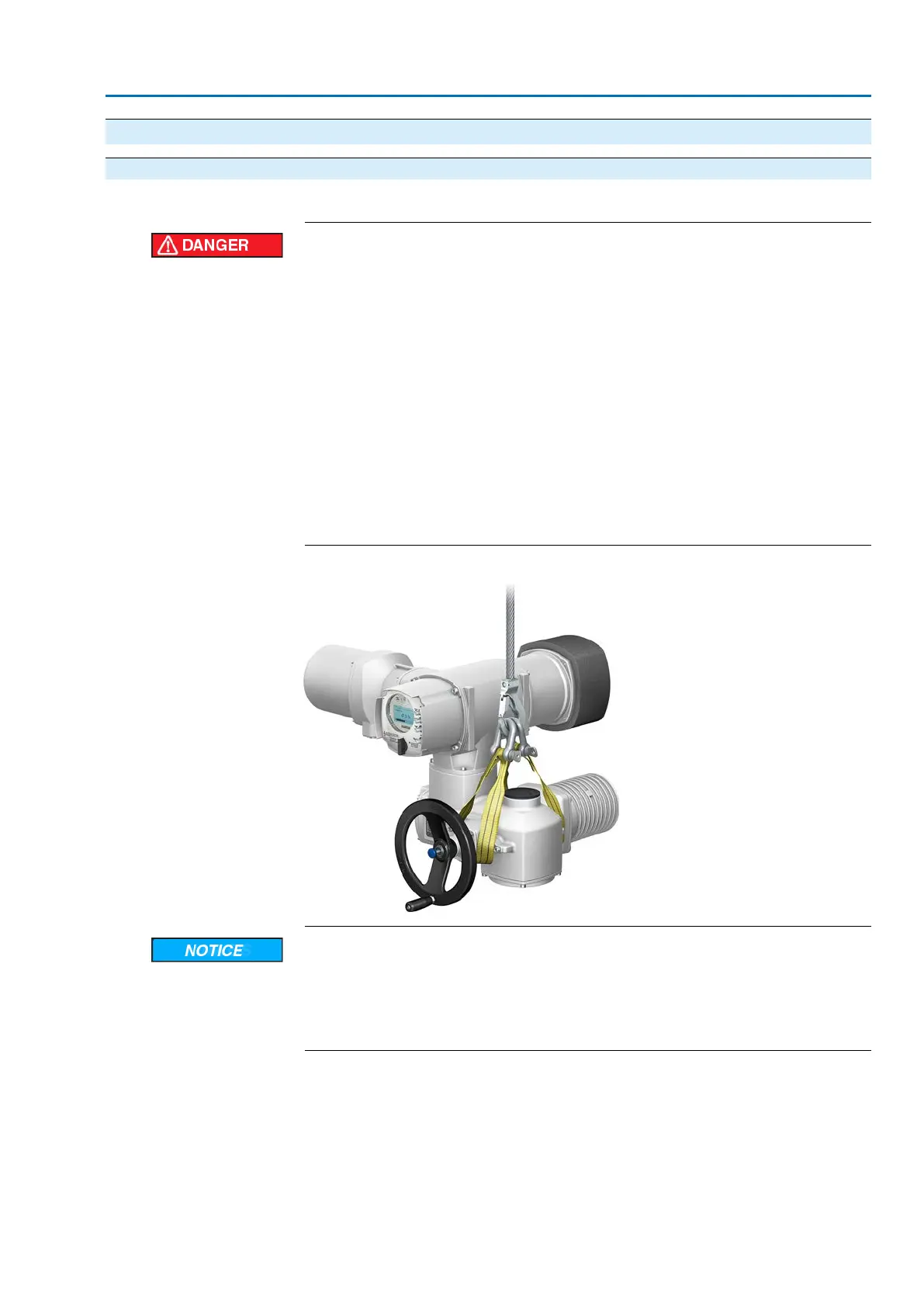

Figure 7: Example: Lifting the actuator
Delicate cooling fins, risk of damage!
During transport or assembly without the supplied transport protection, the cooling
fins may either break or bend if they hit other objects during inappropriate transport.
→
The supplied transport protection for cooling fins should remain mounted during
both transport and assembly.
13
SAV 07.2 – SAV 16.2 / SARV 07.2 – SARV 16.2 Control unit: electronic (MWG)
ACV 01.2 Modbus TCP/IP Transport, storage and packaging
