AUMA SAV Series User Manual

2. To modify settings, lift the lever at the reduction gearing and engage at the se-
lected stage.

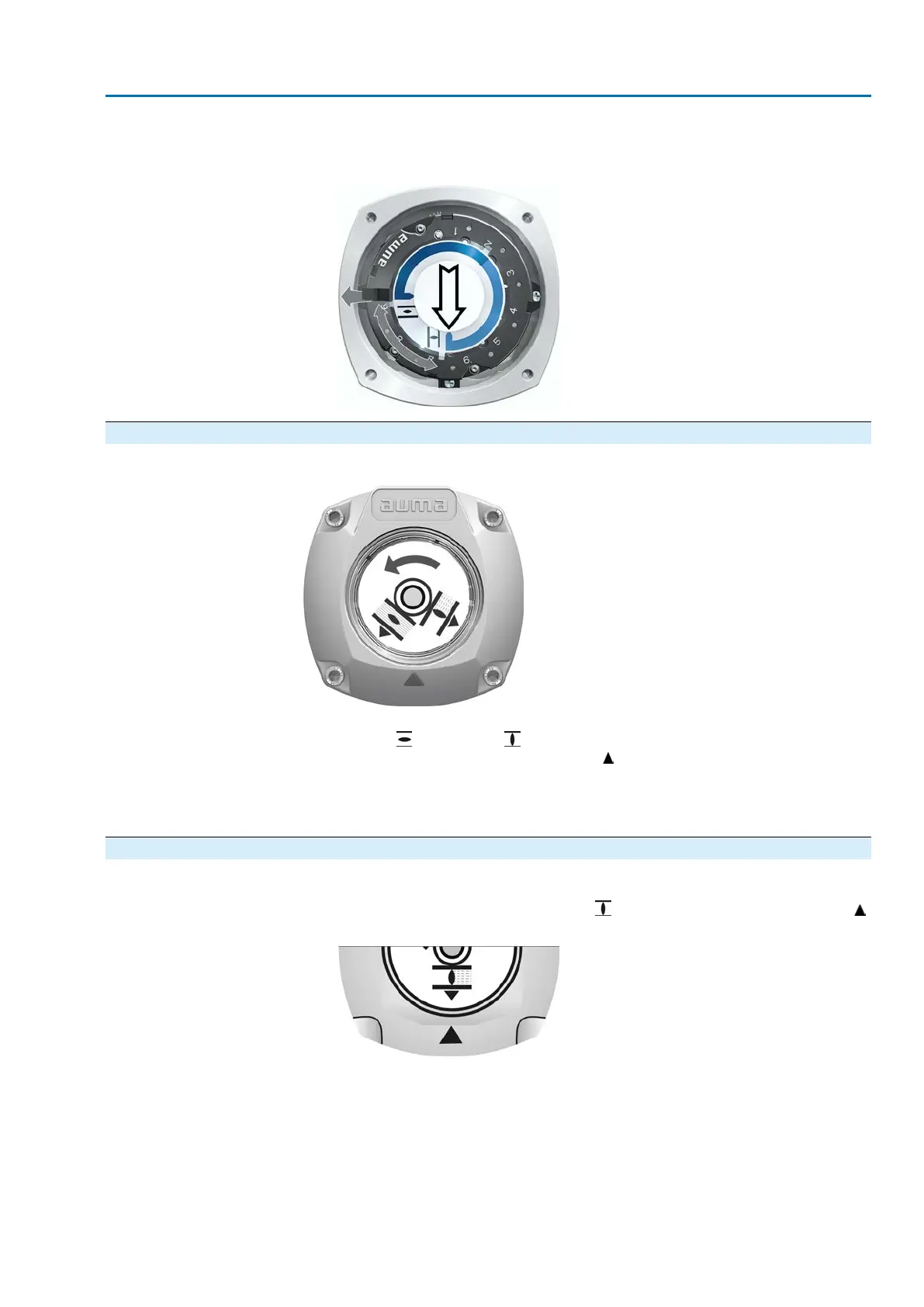

Figure 73: Set reduction gearing
10.3. Mechanical position indication via indicator mark (not self-adjusting)
Figure 74: Mechanical position indication via indicator mark
The mechanical position indicator shows the valve position via two indicator discs
with symbols (OPEN) and (CLOSED). When correctly set, the symbols
OPEN/CLOSED point to the indicator mark at the cover in the end positions.
Setting elements
The position indications is housed in the actuator switch compartment. The switch
compartment must be opened to perform any settings. Refer to <Switch compartment:
open/close>.
10.3.1. Mechanical position indicator: set
1. Move valve to end position CLOSED.
2.
Turn lower indicator disc until symbol (CLOSED) is in alignment with the
mark on the cover.
3. Move actuator to end position OPEN.
63
SAV 07.2 – SAV 16.2 / SARV 07.2 – SARV 16.2 Control unit: electronic (MWG)
ACV 01.2 Modbus TCP/IP Commissioning (settings/options in the actuator)
