Information For actuators equipped with positioner, it is possible to select between open-close
duty (REMOTE MODE) and modulating duty (SETPOINT MODE). For further infor-
mation, please refer to the Manual (Operation and setting).
6.3 Menu navigation via push buttons (for settings and indications)
The push buttons of the local controls are used to view, edit, and show various
indications on the display.

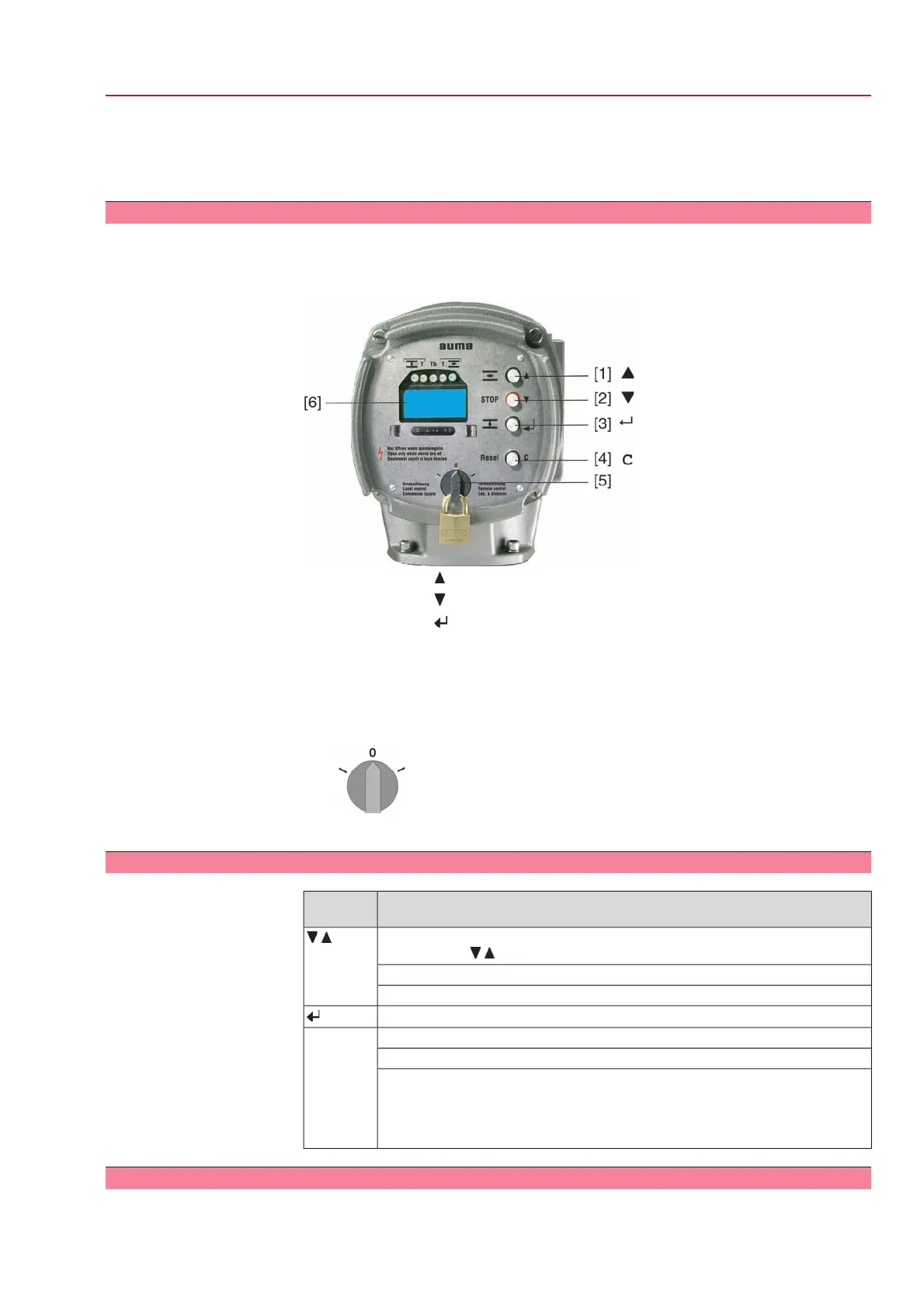

Figure 28: Local controls
[1]
Push button
[2]
Push button
[3]
Push button
[4]
Push button
C
[5] Selector switch
[6] Display
→
Set selector switch [5] to position 0 (OFF).
➥
Now, settings and indications can be performed via the push buttons [1 – 4].
6.3.1 Short overview: Functions of the push buttons
FunctionsPush but-
tons
Scrolling within a group
(The triangles
in the display show which direction of scrolling is possible)
Change values
Enter figures from 0 to 9
Confirm the selection to go to a new menu/subgroup
Cancel process
C
Return to previous display: press briefly
Change to another group (
S, M, D):
●
hold down for approx. 3 seconds until group M0 is displayed.
●
hold down for longer than 3 seconds until group D0 is displayed (thereby,
group
M is skipped).
6.3.2 Structural design and navigation
The indications on the display are divided into 3 groups:
29
SG 05.1 – SG 12.1/SGR 05.1 – SGR 12.1 Control unit: electromechanic
AC 01.1 Intrusive Modbus RTU Operation
