The behaviour (blinking/illuminated) can be changed via the
BLINKER (M1311)
parameter.
7.3 Mechanical position indicator/running indication
Mechanical position indicator:
●
Continuously indicates the valve position
(For a swing angle of 90°, the indicator disc [2] rotates approximately 180°)
●
Indicates whether the actuator is running (running indication)
●
Indicates that the end positions are reached (via indicator mark [3])

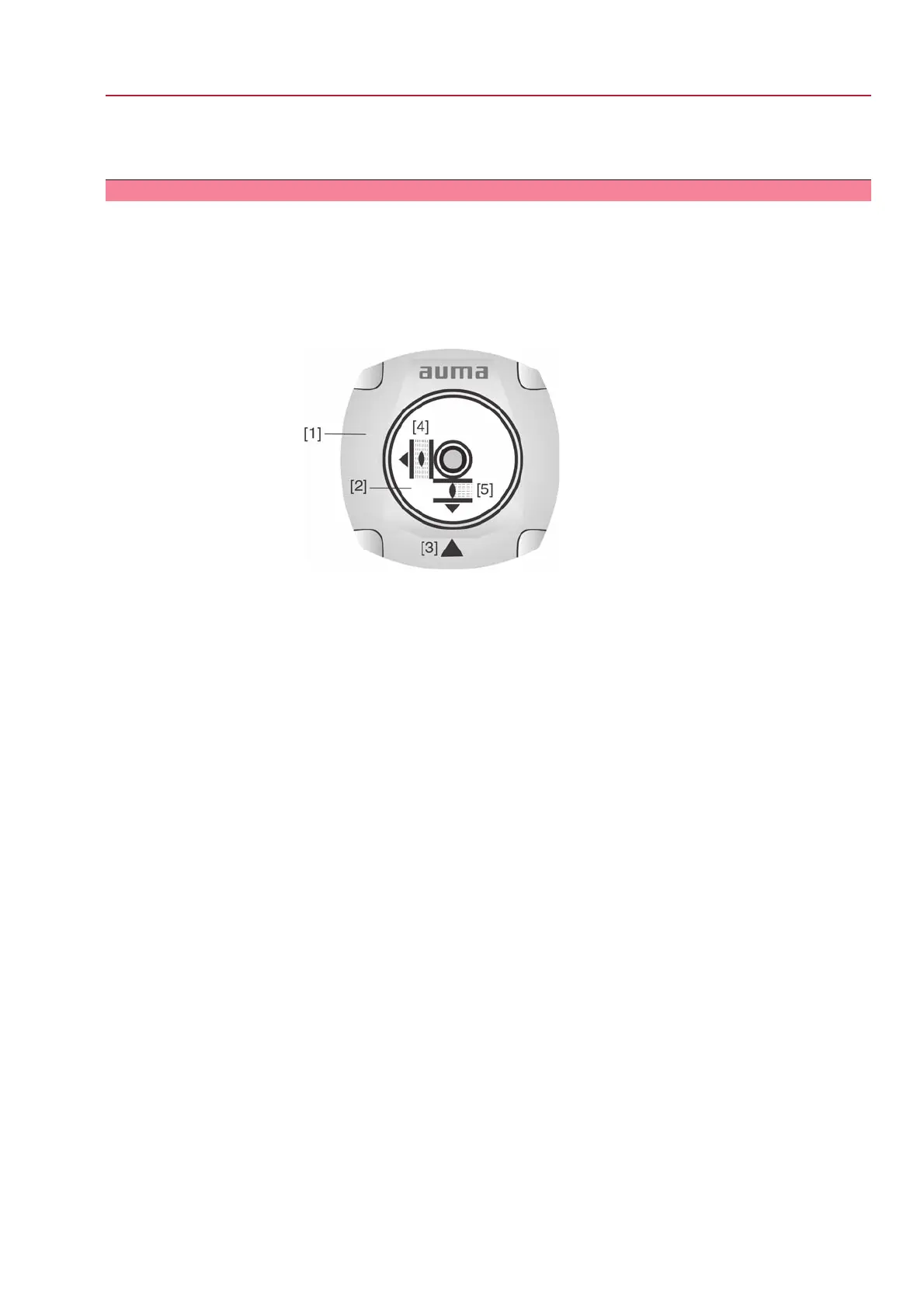

Figure 34: Mechanical position indicator
[1] Cover
[2] Indicator disc
[3] Mark
[4] Symbol for position OPEN
[5] Symbol for position CLOSED
