Table 9: Operating time setting for 90°
Operating timesSize
5.6 to 45 secondsSG 05.1/SGR 05.1
11 to 90 secondsSG 07.1/SGR 07.1
11 to 90 secondsSG 10.1/SGR 10.1
22 to 180 secondsSG 12.1/SGR 12.1

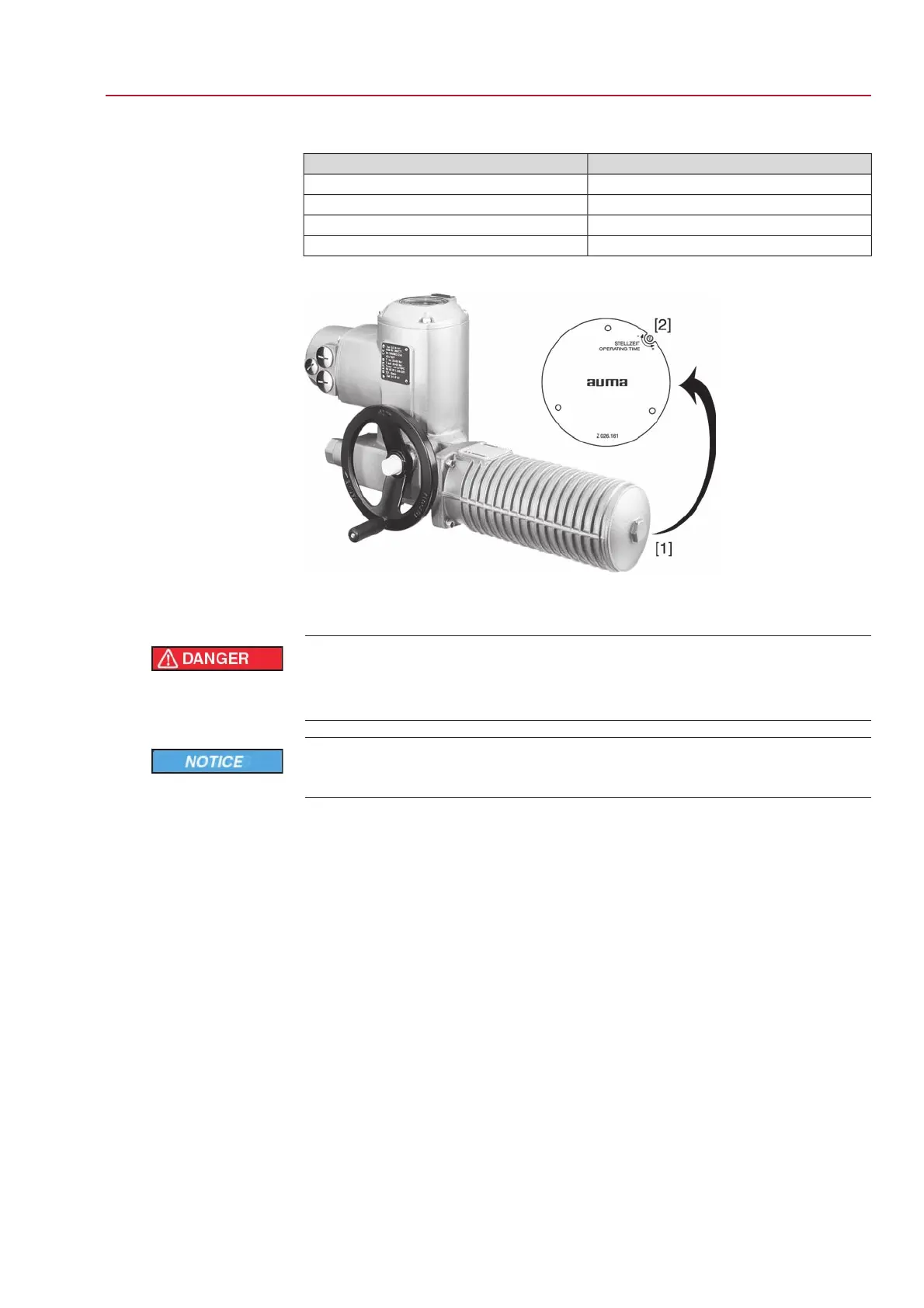

Figure 56: Part-turn actuator with 1-ph AC motor
[1] Motor cover
[2] Potentiometer
Hazardous voltage!
Electric shock possible.
→
Disconnect device from the mains before opening.
Danger of corrosion due to damage to paint finish!
→
Touch up damage to paint finish after work on the device.
1. Unfasten motor cover [1].
2. Set required operating time via potentiometer.
3. Clean sealing faces of motor cover and housing.
4. Apply a thin film of non-acidic grease (e.g. petroleum jelly) to the sealing faces.
5. Check whether O-ring is in good condition, correctly insert O-ring.
6. Fit motor cover [1] and fasten screws [2] evenly crosswise.
Information: For enclosure protection IP 68, the motor cover is additionally
sealed with thread sealing material.
