3. AS1320 CONTROL BOARD
(Excract from AS1320 techniciean manual)

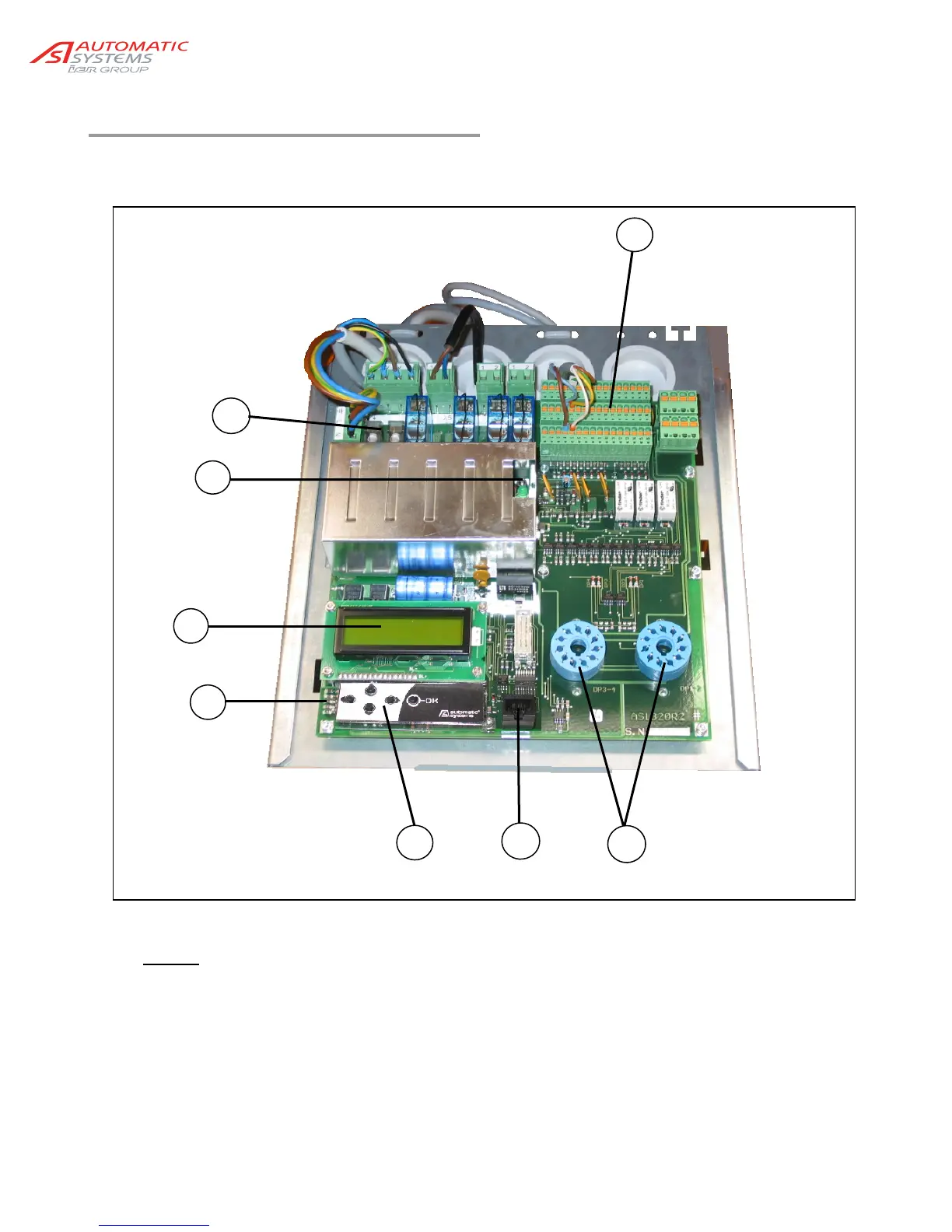

Legend
6:1. Fuses
6:2. Light indicating that the stabilised power supply is switched on
6:3. Menu display screen
6:4. Keys for navigating through the menu
6:5. Connector for the RJ45 communication cable
6:6. Terminal blocks for external communication (Input/Output connections)
6:7. Green LEDs (lights indicating that the control board has been turned on)
6:8. Connectors for presence detectors (for inductive loops)
6:1
6:2
6:3
6:7
6:4
6:5
6:8
6:6
