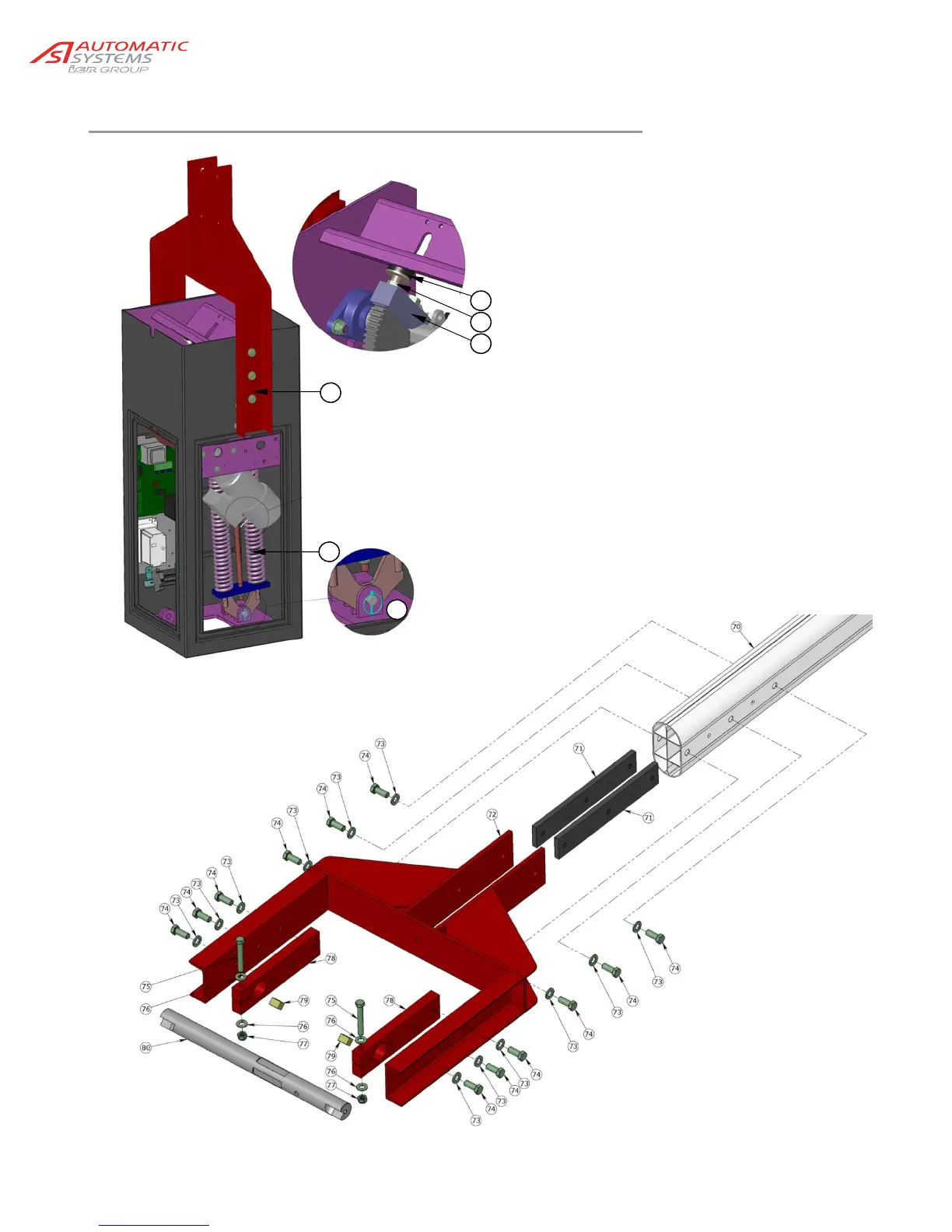

4.5. Assembly of the oval arm for BL43 & BL44
10 Upper bumper
13 Hub
30 Balancing spring
54 Nut
57 Pin
70 Aluminium 175x100 arm
71 Fixing bracket for 175x100 arm
72 Central stirrup
73 M 16 stainless steel flat washer
74 H M16x40 stainless steel screw (tighten to
190 Nm)
75 H M14x100 stainless steel screw (tighten to
130 Nm)
76 M 14 stainless steel flat washer
77 Nylstop M14 stainless steel nut
78 Stirrup fixing jaw
79 Calvette
80 Main shaft
72
10
54
19
57
13
30
