Automatic Systems BL40 User Manual

p 28/58
Technical Manual NAM-BL4x-MT-EN-C
The information in this document is the property of Automatic Systems and is confidential. The consignee withholds from using it for anything other than the use of the products or the execution of the
project to which they belong and withholds from communicating it to third parties without prior written agreement from Automatic Systems. Document subject to change without prior notice.

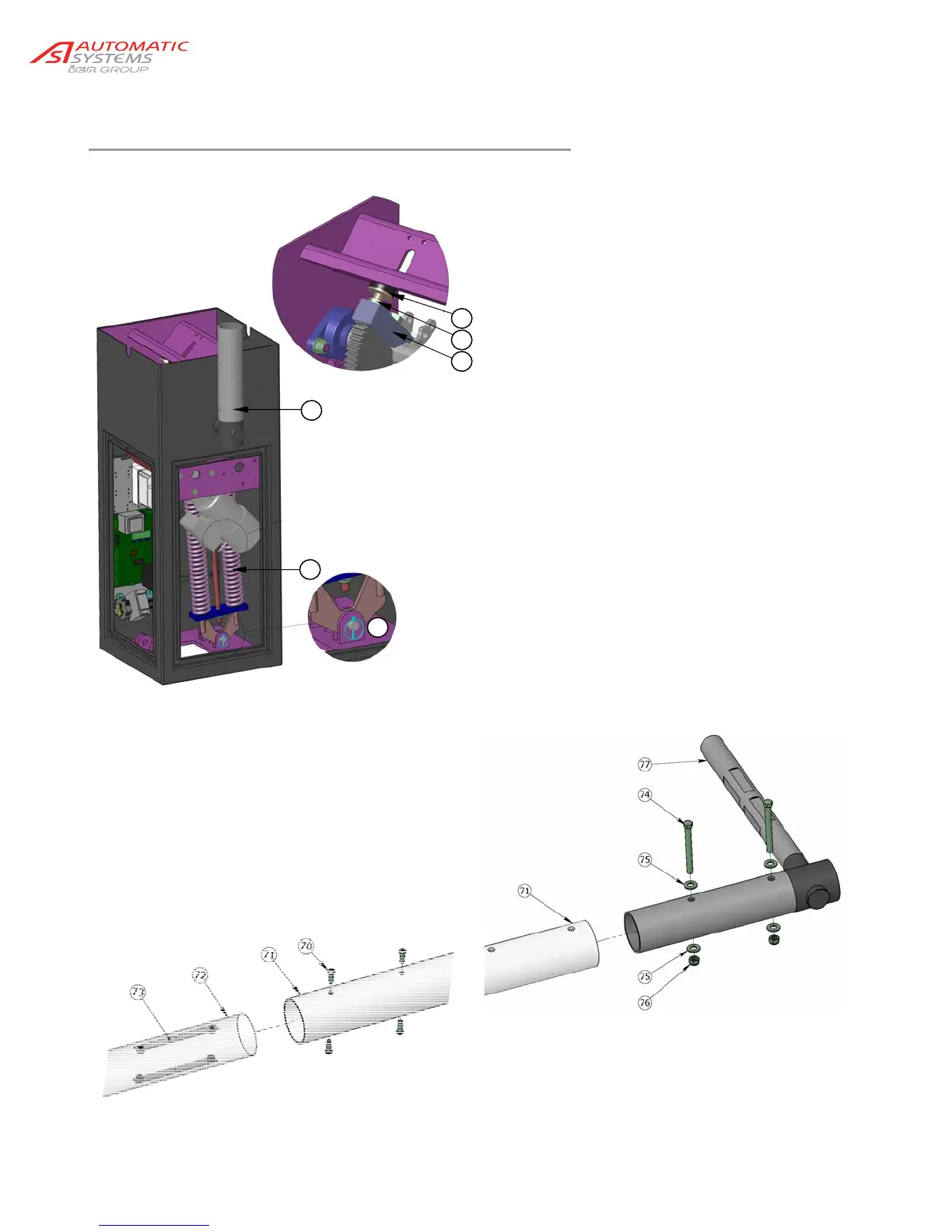

4.3. Assembly of the round arm for BL40
10 Upper bumper
13 Hub
30 Balancing spring
54 Nut
57 Pin
70 CBLH M8x25 stainless steel screw (tighten to 20
Nm)
71 Round aluminium arm, Ø100
72 Round aluminium arm, Ø89.5 or Ø83.5
73 Assembly fixing bracket for round arm
74 H M C12x120 stainless steel screw (tighten to 80
Nm)
75 M 12 stainless steel flat washer
76 Nylstop M12 stainless steel nut
77 Main shaft
77
10
54
19
57
13
30
