3.1. PRDSTD – BL_xxx menu: Troubleshooting and monitoring
This screen appears when the unit is turned on and after there has not been any navigation through the
menus in simplified mode for 100 seconds.
Parameter Values Description
OK key
: (only within this menu (*) and when no other
parameter is selected): command for opening and closing
the obstacle.
OK during opening: without effect.
OK during closing: inversion (= opening).
OK maintained: oscillating movement around the opening
limit switch: the obstacle opens, starts closing, opens
again, etc.
(*) Warning
: in QUICKSTART menu, validating passage
from Extended to Simplified menus through the OK key
causes also an opening or closing movement of the arm,
even if a presence is detected by the Presence sensors.
Note
: When the operating mode is configured as 1
contact (see the Exploitation parameter in the QUICK
START menu), the obstacle closes automatically when
the opening limit switch is detected.
Left key
(◄): Change the menu display language with
each touch.
EN = English
FR = Français
NL = Nederlands
DE = Deutsch
ES = Español
IT = Italiano
SV = Svenska
Select the language using the OK key or allow it to
change automatically after a few seconds, following which
all of the preceding parameter modifications (including
the language) will be saved in MEM1.

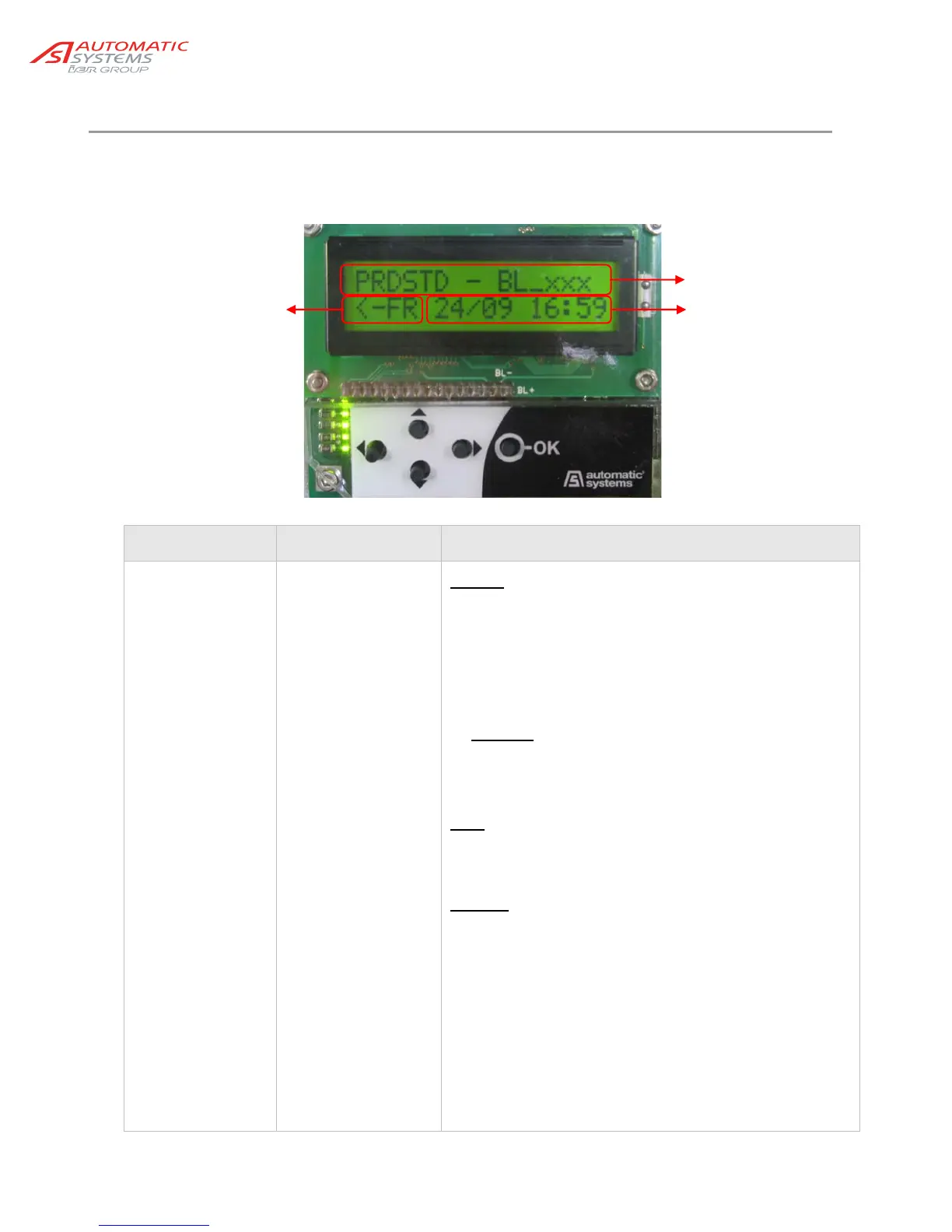

Name of the program
Date (DD/MM)
Time (hh:mm)
Choice of language
by means of the ◄
button
